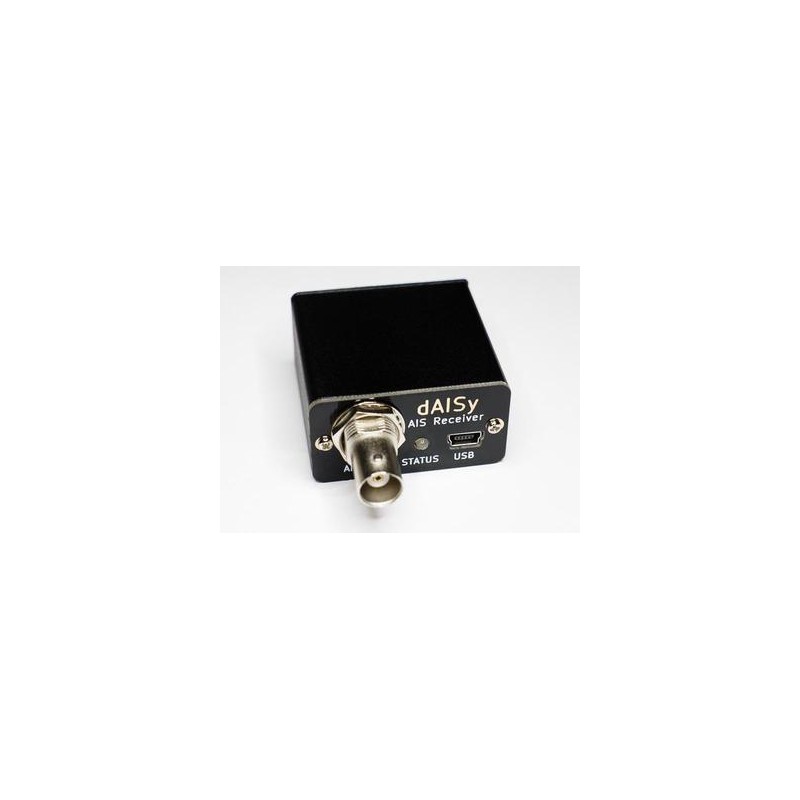

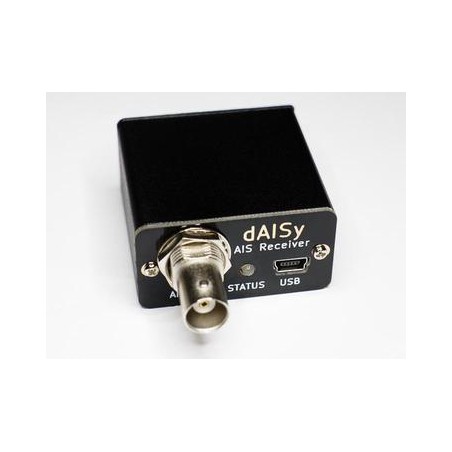

dAISy AIS Receiver - The Original

145,18 €
Tasse incluse

With its small size and very low power consumption, dAISy is the perfect AIS receiver for DIY projects. Also check out our dAISy HAT for the Raspberry Pi.If you are looking for an AIS receiver to connect with your chartplotter, our new 2-channel dAISy 2+ with NMEA 0183 output is for you.

Quantità
Ultimi articoli in magazzino

With its small size and very low power consumption, dAISy is the perfect AIS receiver for DIY projects. Also check out our dAISy HAT for the Raspberry Pi.If you are looking for an AIS receiver to connect with your chartplotter, our new 2-channel dAISy 2+ with NMEA 0183 output is for you.

  • Single channel receiver
  • Receiving on channel A (161.975 MHz) and B (162.025 MHz)
  • Smart channel hopping receives 40-60% more messages than traditional single-channel receivers
  • Very low power consumption, less than 100mW in receive mode (<20mA at 5V)
  • 38400 baud serial output over USB in industry standard NMEA format (AIVDM)
  • No drivers required for Windows 10, Mac OS X and Linux (driver available for older versions of Windows).
  • Supported by Boat Beacon, OpenCPN and SailGrib WR on Android devices with USB OTG.
  • Optional TTL serial output (3.3V, requires soldering)
  • Small size: 63 x 44 x 23 mm
  • Very robust aluminum enclosure
  • BNC connector for 50 Ohm VHF antenna (antenna not included)
  • Mini-USB connector for data and power (3ft USB cable included)
  • Made in the USA

OpenCPN, an open source chart plotter and navigation software, can be used with devices like dAISy to track ships on a map. Any software running on a PC, Mac or small Linux computer that accepts AIS data from a serial input will work with dAISy.

Several of our customers built chart plotters based on Raspberry Pi 2, OpenCPN and dAISy. A detailed write-up can be found here. A similar project based on the UDOO Neo single board computer can be found here.

Disclaimer: WE DO NOT RECOMMEND to rely solely on dAISy for navigation and collision avoidance!

dAISy is well suited to report nearby ship traffic to websites and services like MarineTraffic, FleetMon, AISHub or Pocket Mariner.

A user of an early prototype of dAISy documented how to configure a Linux system like Raspberry Pi to report directly to MarineTraffic here.

Recently he even did away with the Raspberry Pi and reports to MarineTraffic just with dAISy and an ESP8266 WiFi module running an Arduino sketch. This is based on the auxiliary serial output and definitely needs some tinkering, i.e. for advanced users only!

An alternative approach is to connect dAISy to a Linux computer (like the Raspberry Pi) running Kplex. Kplex is a NMEA-0183 Multiplexer which allows to feed the AIS data stream to multiple targets, including services like MarineTraffic and AISHub. Kplex also allows you to setup a NMEA server to distribute AIS to other devices on your network, like for example via WiFi to a navigation app running on an iPad. MUPLEX for Linux and NMEA Router for Windows are a similar tools.

For tinkerers, an auxiliary serial data stream is broken out on the PCB. With a bit of soldering, advanced users can combine dAISy with a Bluetooth module to receive AIS on wireless devices, or connect a data logger like SparkFun OpenLog.

If UART serial communication is all you need, also take a look at the dAISy HAT, which can also run standalone without a Raspberry Pi.

And no, we won't void your warranty for taking a screw driver and soldering iron to dAISy :-)

With our open source work, we pioneered a new category of AIS receivers designed around the SiLabs EZRadioPro single chip radio IC. This architecture is instrumental for the very low price, small form factor and low power consumption. The trade-offs are longer acquisition time, lower sensitivity and less range than traditional AIS receivers.

Field tests with conventional dual-channel receivers (like SmartRadio SR162, advanSEA RX-100) showed that dAISy indeed has lower range and is slower to acquire targets. However dAISy clearly outperforms receivers in USB stick form-factor that we've tested so far (Quark-elec, MarineGadget).

Our observation is, that with a good antenna dAISy is well suited to monitor local ship traffic. If you need maximum performance and are willing to pay for it, go with a receiver from the established brands.
