Nema 23 CNC Stepper Motor 44mm 0.6Nm(85oz.in) 23HS17-1008S

24,40 €
Tasse incluse

Nema 23 CNC Stepper Motor 44mm 0.6Nm(85oz.in) 23HS17-1008S

Quantità
Add to Compare
Add to Wishlist

Description

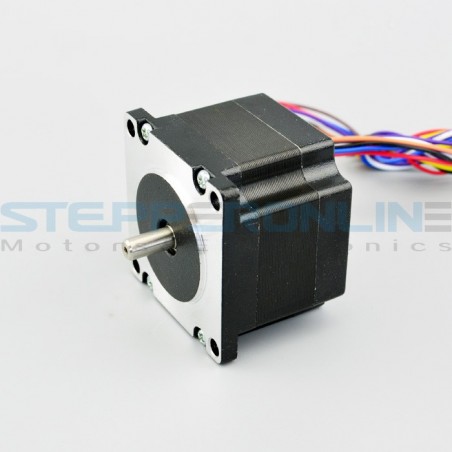

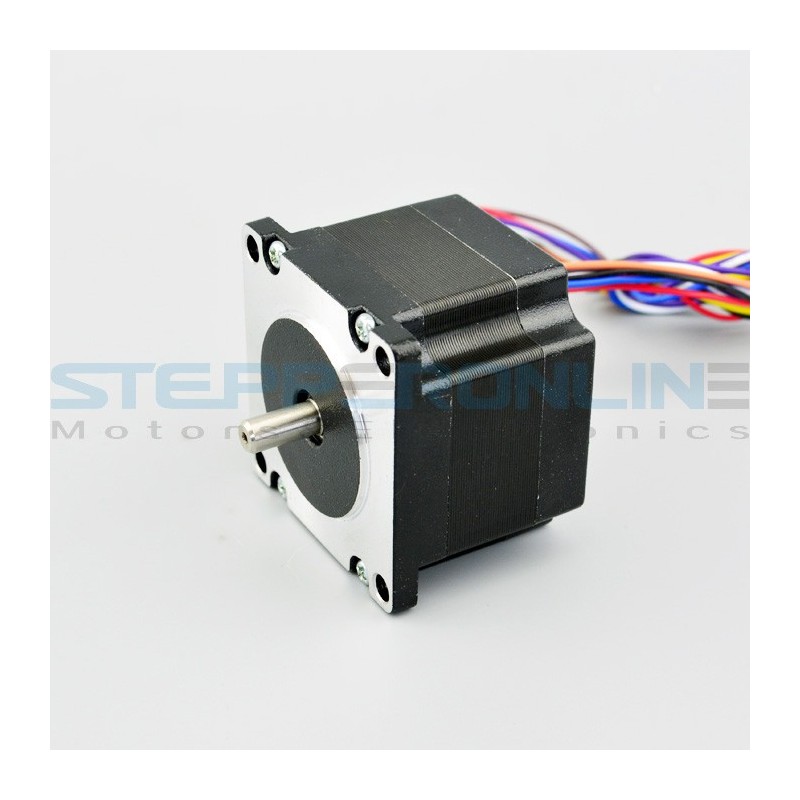

This Nema 23 stepper motor with 1.8°step angle (200 steps/revolution). It with 8 wires, which you can give three connection options: Unipolar or Bipolar(Serial) or Bipolar(Parallel), you can choose any type as you wish.

Electrical Specification


Manufacturer Part Number 23HS17-1008S
Motor Type Unipolar/Bipolar
Step Angle 1.8°
Holding Torque(Bipolar) 0.6Nm(85oz.in)
Holding Torque(Unipolar) 0.43Nm(61oz.in)
Rated Current(Bipolar Serial) 0.7A
Rated Current(Bipolar Parallel) 1.4A
Rated Current(Unipolar) 1.0A
Phase Resistance(Bipolar Serial) 11.4ohms
Phase Resistance(Bipolar Parallel) 2.9ohms
Phase Resistance(Unipolar) 5.7ohms
Recommended Voltage 24-48V
Inductance(Bipolar Serial) 22.0mH±20%(1KHz)
Inductance(Bipolar Parallel) 5.5mH±20%(1KHz)
Inductance(Unipolar) 5.5mH±20%(1KHz)

Connection


Wire Color BLK WHT BRN ORG RED PUE BLU YEL
Board Connector A A- C- C B B- D- D

Resources



warning Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.

Related Products

  • Stepper Motor Driver
    For each stepper motor, it should work with a stepper motor driver, below is a matched stepper motor driver:
    • ST-6600: Economical stepper driver, Output current 0.50 - 4.0A, Input voltage 12V - 45VDC, Max. step resolution 1/16.
    • ST-7128: Economical stepper driver, Output current 0.60 - 3.0A, Input voltage 10V - 32VDC, Max. step resolution 1/128.
    • M542T: High performance stepper driver, Output current 1.5 - 4.5A, Input voltage 24-50VDC, Max. step resolutions 1/256, ideal solution for applications that require low-speed smoothness.
  • Stepper Motor Power Supply
    Recommended Driving Voltage is 12 - 48VDC.
  • Motor Mounting Bracket
    This motor mounting bracket can match any standard Nema 23 stepper motor and planetary geared stepper motor.
    Nema 23 Motor Mounting Bracket

Custom Options

  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow
SO-0270
