Nema 42 CNC Stepper Motor 6.0A 22Nm(3115oz.in) 42HS59-6004S

184,90 €

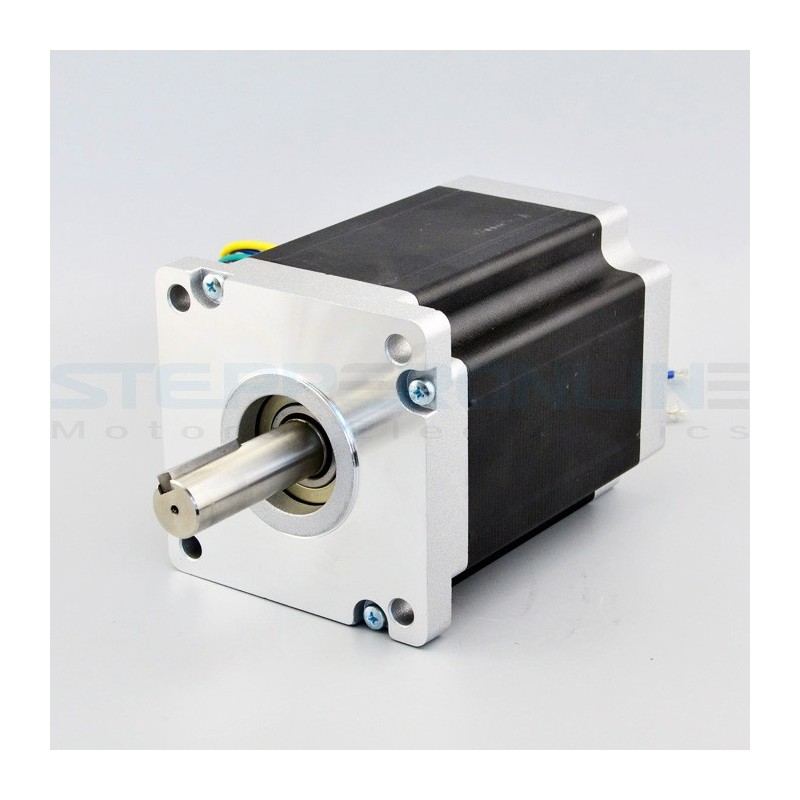

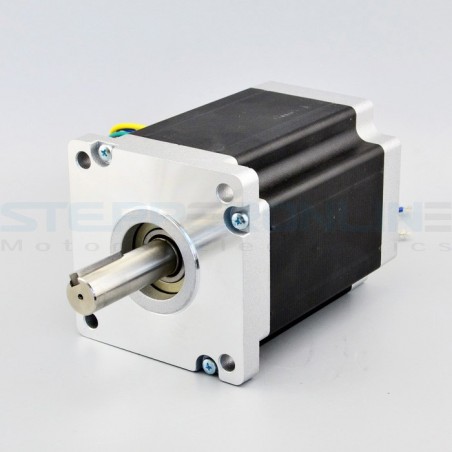

Nema 42 CNC Stepper Motor 6.0A 22Nm(3115oz.in) 42HS59-6004S

Quantità

Description

This Nema 42 cnc stepper motor with 1.8°step angle (200 steps/revolution). Each phase draws 6A, allowing for a holding torque of 22Nm(3115oz.in).


Electrical Specification


Manufacturer Part Number42HS59-6004S
Motor TypeBipolar Stepper
Step Angle1.8°
Holding Torque22Nm(3115oz.in)
Rated Current/phase6.0A
Phase Resistance0.8ohms
Inductance14mH±20%(1KHz)

Physical Specification


Frame Size110 x 110mm
Body Length150mm
Shaft Diameter?19mm
Shaft Length55.37mm
Key Way Length35mm
Number of Leads4
Lead Length500mm
Weight10.9kg

Connection


Wire ColorRedGreenYellowBlue
Board ConnectorACBD

warningMake sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.

Related Products


  • Stepper Motor Driver
    For each stepper motor, it should work with a stepper motor driver, below is a matched stepper motor driver:
    • DM2282: AC Stepper Motor Driver, no need extra power supply, 80 - 230VAC/115 - 305VDC input voltage, Output current 0.5A -8.2A, Max step resolutions 1/128.
  • Stepper Motor Power Supply
    Recommended Driving Voltage is 50 - 80VDC.

Custom Options


  • Connectors: Molex, Harwin, Tyco/AMP, JST etc.
  • Lead wires & cables: Special lengths, Protective hose
  • Shaft: Round, D-Cut, Cross drilled, Key-Way, Thread or Hollow

Resources


SO-0174
