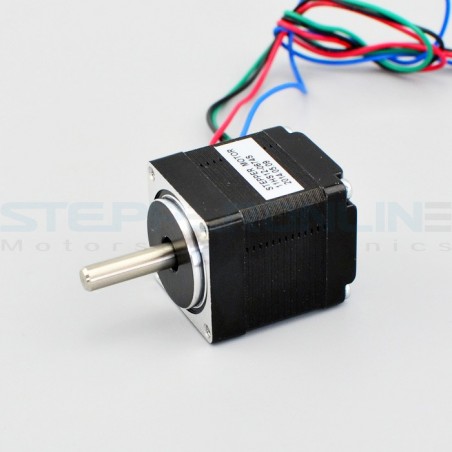

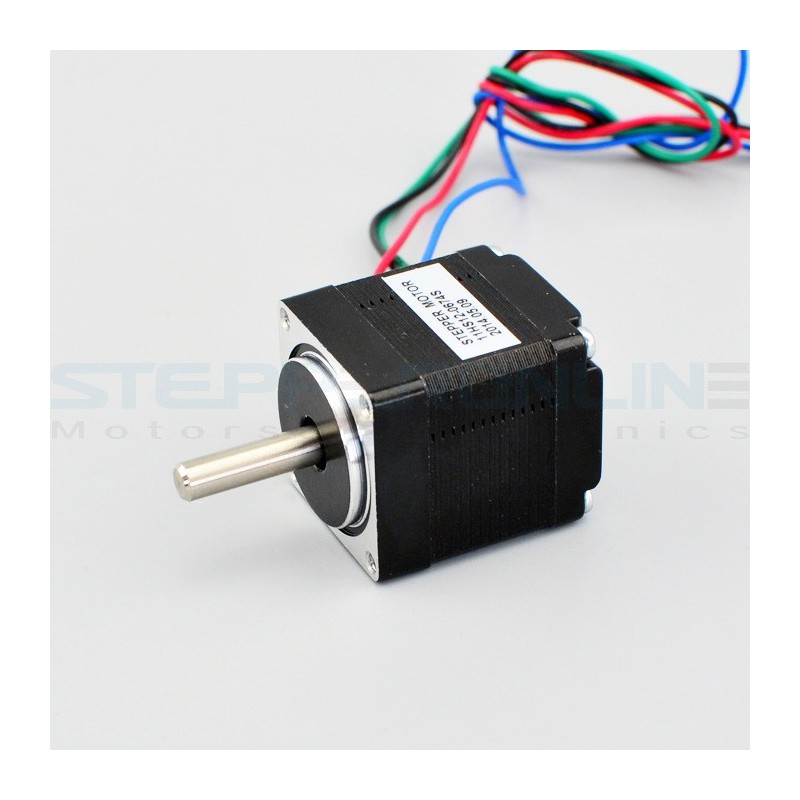

Nema 11 Bipolar 3.8V 0.67A 6Ncm Mini Stepper Motor 11HS12-0674S
17,39 €
Nema 11 Bipolar 3.8V 0.67A 6Ncm Mini Stepper Motor 11HS12-0674S
Description
This hybrid bipolar stepper motor has 1.8° step angle (200 steps/revolution). Each phase draws 670 mA at 3.8 V, allowing for a holding torque of 6Ncm(8.5oz.in).
Electrical Specification
| Manufacturer Part Number | 11HS12-0674S |
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8° |
| Holding Torque | 6Ncm(8.5oz.in) |
| Rated Current/phase | 0.67A |
| Phase Resistance | 5.6ohms |
| Recommended Voltage | 12-24V |
| Inductance | 42mH±20%(1KHz) |
Physical Specification
| Frame Size | 28 x 28mm |
| Body Length | 31.5mm |
| Shaft Diameter | ?5mm |
| Shaft Length | 20mm |
| Number of Leads | 4 |
| Lead Length | 300mm |
| Weight | 110g |
Connection
| Wire Color | Black | Green | Red | Blue |
| Board Connector | A | C | B | D |
Resources
|
SO-054
