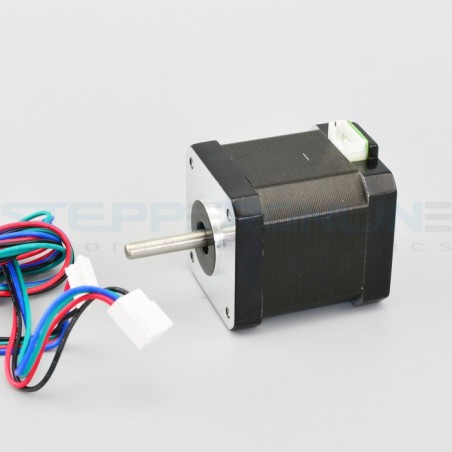

3D Printer Motor Nema 17 1.68A 45Ncm(64oz.in) 17HS19-1684S
Write your review
20,37 €
Tasse incluse
3D Printer Motor Nema 17 1.68A 45Ncm(64oz.in) 17HS19-1684S
Description
This is the most popular Nema 17 stepper motor model 17HS19-1684S in 3D printer market, with 1.8° step angle (200 steps/revolution). Each phase draws 1.68A, allowing for a holding torque of 45Ncm(64oz.in). This stepper motor is ideal for the RepRap Prusa, Mendel 90, Rostock and similar 3D printers, as well as CNC and robotics applications. The motors are supplied with a 1 metre long power cable with a 4-pin Molex female connector already fitted - ready to plug and print!
Electrical Specification
| Manufacturer Part Number | 17HS19-1684S1 |
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8° |
| Holding Torque | 45Ncm(64oz.in) |
| Rated Current/phase | 1.68A |
| Phase Resistance | 1.65ohms |
| Recommended Voltage | 12-24V |
| Inductance | 2.8mH±20%(1KHz) |
Physical Specification
| Frame Size | 42 x 42mm |
| Body Length | 48mm |
| Shaft Diameter | ?5mm |
| Front Shaft Length | 24mm |
| Number of Leads | 4 |
| Lead Length | 1000mm |
| Weight | 390g |
Connection
| Wire Color | Black | Green | Red | Blue |
| Board Connector | A | C | B | D |
Resources
- Full datesheet about 17HS19-1684S1: OSM Datasheet
