Description

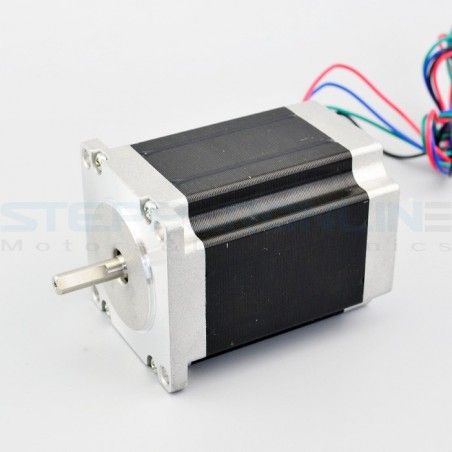

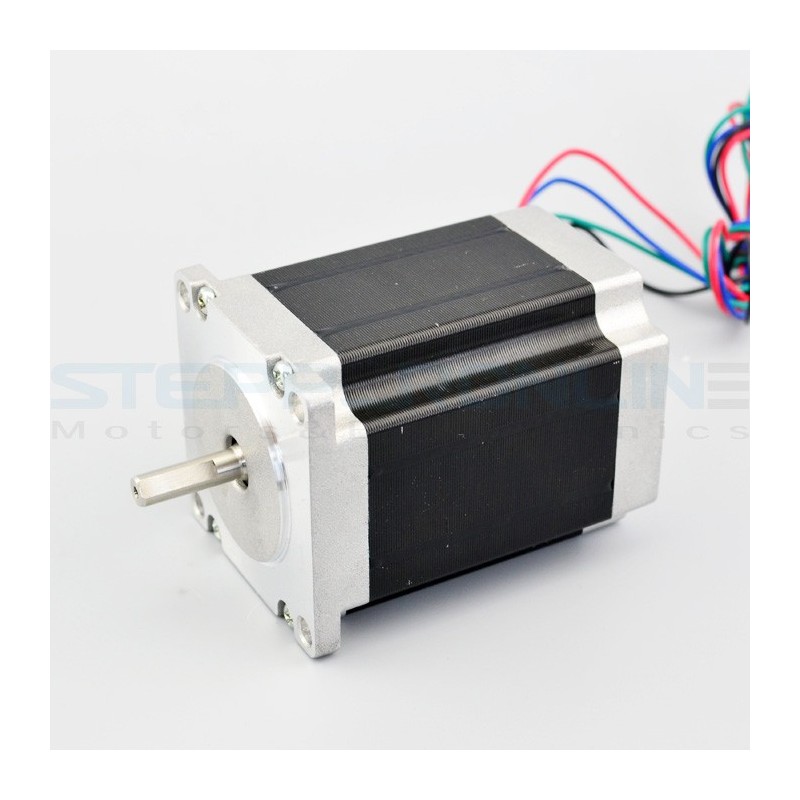

This bipolar Nema 23 stepper motor is most popular, it with 1.8°step angle (200 steps/revolution). Each phase draws 2.8A, allowing for a holding torque of 1.9Nm(269oz.in).
Electrical Specification
Manufacturer Part Number |
23HS30-2804S |
Motor Type |
Bipolar Stepper |
Step Angle |
1.8° |
Holding Torque |
1.9Nm(269oz.in) |
Rated Current/phase |
2.8A |
Phase Resistance |
1.13ohms |
Recommended Voltage |
24-48V |
Inductance |
5.4mH±20%(1KHz) |
Physical Specification
Frame Size |
57 x 57mm |
Body Length |
76mm |
Shaft Diameter |
?6.35mm |
Shaft Length |
21mm |
D-cut Length |
15mm |
Number of Leads |
4 |
Lead Length |
500mm |
Weight |
1.2kg |
Connection
Wire Color |
Black |
Green |
Red |
Blue |
Board Connector |
A |
C |
B |
D |
Resources
 |
Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor.
|
