3D Printer Nema 17 Stepper Motor 59Ncm(84oz.in) 2A
Write your review
20,37 €
Tasse incluse

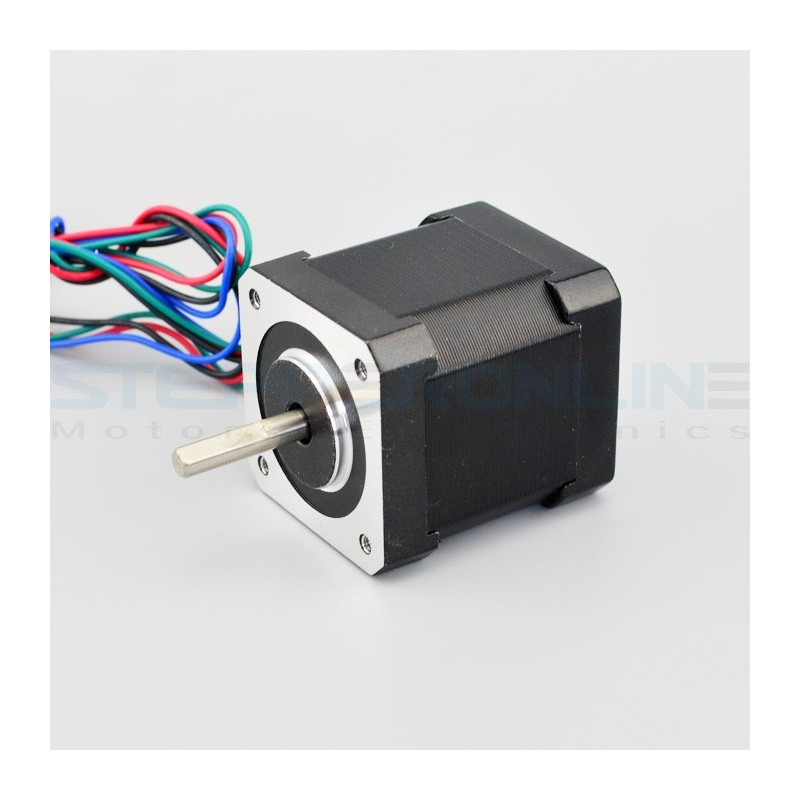

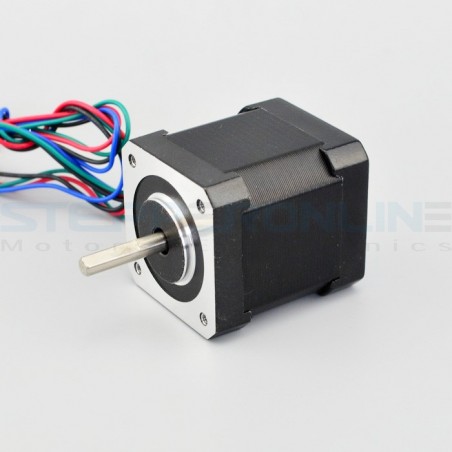

3D Printer Nema 17 Stepper Motor 59Ncm(84oz.in) 2A 17HS19-2004S
Description
This is high torque Nema 17 stepper motor with 1.8° step angle (200 steps/revolution). Each phase draws 2A, allowing for a holding torque of 59Ncm(83.6oz.in). It's good ideal for 3D printers, as well as CNC and robotics applications. The motors are supplied with a 1 metre long power cable with a 4-pin 0.1" pitch (2.54mm) Harwin female connector already fitted.
Electrical Specification
| Manufacturer Part Number | 17HS19-2004S1 |
| Motor Type | Bipolar Stepper |
| Step Angle | 1.8° |
| Holding Torque | 59Ncm(83.6oz.in) |
| Rated Current/phase | 2.0A |
| Phase Resistance | 1.4ohms |
| Recommended Voltage | 12-24V |
| Inductance | 3.0mH±20%(1KHz) |
Physical Specification
| Frame Size | 42 x 42mm |
| Body Length | 48mm |
| Shaft Diameter | ?5mm |
| Shaft Length | 24mm |
| Double D-cut Length | 15mm |
| Number of Leads | 4 |
| Lead Length | 1000mm |
| Weight | 390g |
Connection
| Wire Color | Black | Green | Red | Blue |
| Board Connector | A | C | B | D |
Custom Options
|
Resources
|
 |
Make sure the motor connect to a constant current or chopper drive controller before you test motor. Connecting the motor directly to a power supply will destroy the motor |
