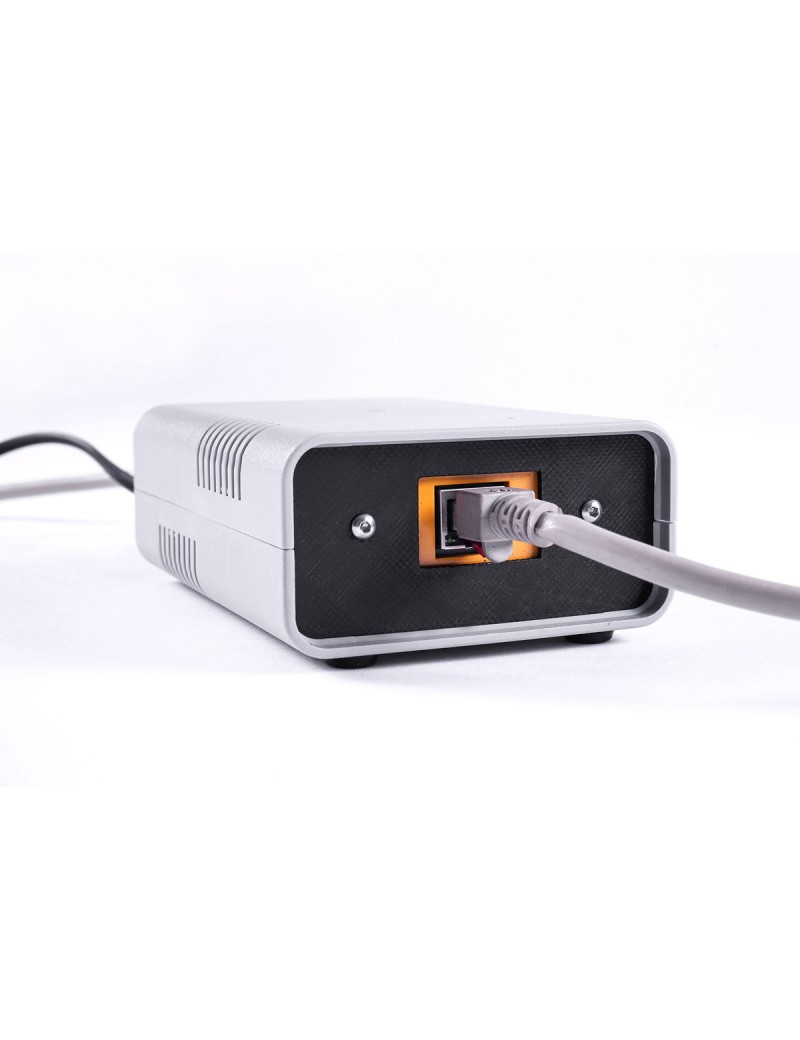

The UC-400ETH is a CNC machine controller with Ethernet interface (RJ45). The machine controller can communicate with the network card of the computer using a network cable. The connection can be directly between the UC-400ETH and the computer / network card or via a router / switch.

The machine controller UC-400ETH is compatible with the STEPCRAFT machines of the D-, M- and Q-Series and is simply connected to the LPT1 connection of the machine control.

Technical features

• Ethernet connection between machine control and computer
• Simultaneous control of up to six axes
• Operation with a step frequency of up to 400kHz
• Double standard LPT signal output
• Compatible with UCCNC and Mach3 control software
• Intermediate buffering of the signal data for fast and reliable communication

Scope of delivery

• 1x Connection box with integrated UC-400ETH motion controller
• 1x Ethernet cable, length 1 m
• 1x Parallel cable (LPT1), length 1 m
• 1x Power supply AC 120-240 V, DC 12 V, 1000 mA
• 1x Software License UCCNC
