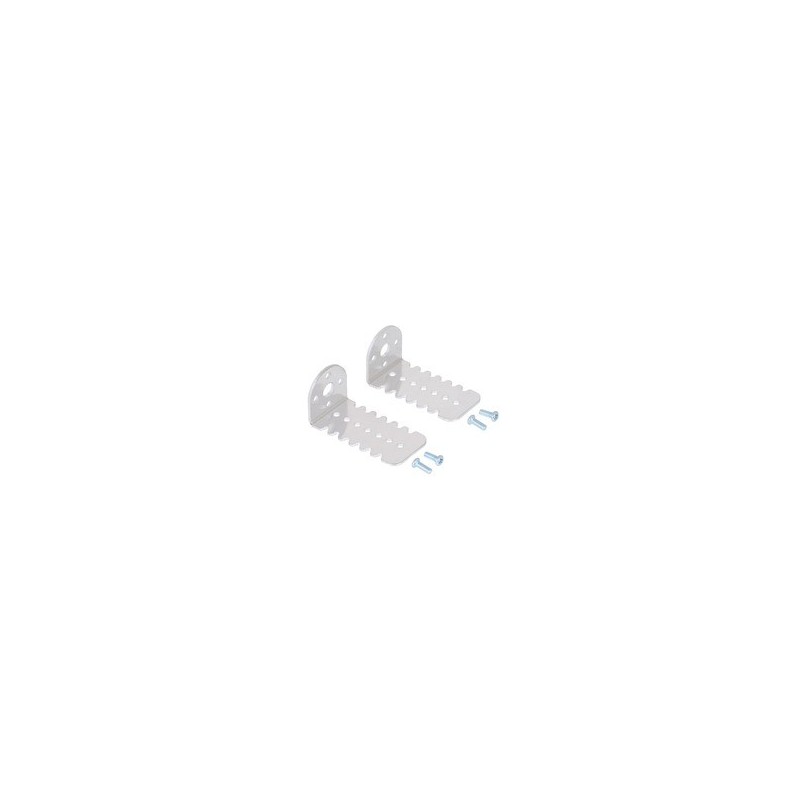

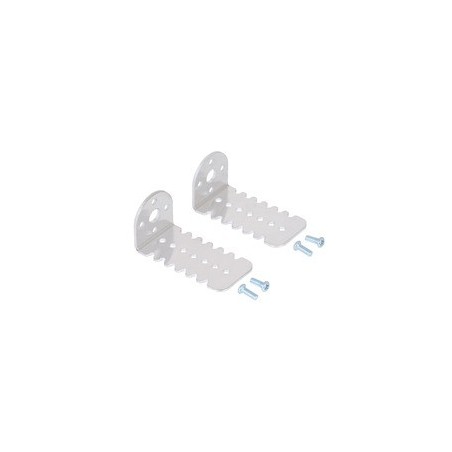

These light-weight brackets (8.5 g each) are specifically designed for the Pololu 25D mm metal gearmotors, including the same motors used in the Wild Thumper chassis. Each bracket features seven mounting holes and twelve mounting slots (six along each edge) for M3 or #4-size screws, giving you a variety of mounting options. A total of four M3 screws (two for each bracket) are included for securing the motors to the brackets.

Our 4mm mounting hub works nicely with this bracket.

Dimension diagram for the #2676 Pololu 25D mm Metal Gearmotor Bracket. Units are mm over [inches].

This drawing is also available as a downloadable PDF (119k pdf).
