TurboPi Raspberry Pi Omnidirectional

149,00 €
Quantità
Add to Compare
Add to Wishlist

  • 【RPi AI Vision Robot】Support Python programming. Come with a Mecanum-wheel chassis, pan-tilt servos, HD camera and 4-ch line follower.
  • 【Recognition and Tracking】Utilize an HD camera with the OpenCV library for FPV perspective and image processing.
  • 【Line Following, Auto-driving】Use a 4-channel line follower or camera for path tracking and auto-driving.
  • 【360° Omnidirectional Movement】Advanced omnidirectional Mecanum wheels enable flexible 360° motion.
  • 【App Remote Control】 TurboPi offers ultimate control over its motion, gripping, and transportation with a dedicated app.
  • Product Description
    TurboPi is a smart vision robot car powered by Raspberry Pi. It is built on a Mecanum-wheel chassis, adopts high-performance pan-tilt servos, HD camera and 4-ch line follower, and can be programmed in Python. With its impressive capabilities, TurboPi unlocks diverse AI applications.
    360° Omnidirectional Movement
    With 4 omnidirectional mecanum wheels, TurboPi can move 360°. Different movement modes (move forward, horizontally, diagonally and rotate ) and excellent perform-ance make it bold to challenge various complicated routes.
    2.1_0e39a483-3470-4197-bd6d-5ca5d8a3878e
    2DOF Pan-tilt for 360° View
    Equipped with two anti-blocking servos, pan-tilt can rotate 130°vertically and 180° horizontally, which contributes to 360° camera field of view.
    2.2_8572e00c-91d6-407d-bbad-3f1fa93c767d
    59e6dfe4fd4f90a807c74e3eb70cfef0_0e82f30

    Face Detection and Tracking

    TurboPi can track human face within its field of view, and move with it.

    663fba67806ff720dfc7c62c0c02b125.jpg?v=1

    Gesture Recognition, Man-robot Interaction

    TurboPi cooperates with OpenCV to count fingers. Then interact with you based on the number of finger, such as honk horn, twist and change color of light.

    e8bcfaa6aedadcad5dda01f4f737e521.jpg?v=1

    QR Code Control

    TurboPi can recognize and read QR code to perform related actions.2_3346ab4c-a901-4cde-8748-9e04b87cf51c.j

    Following with 4-channel Line Follower
    TurboPi uses 4 infrared probes on 4-channel line follower to detect and follow line.1_8b6fa647-84af-4c13-adda-afbb4106f58d.j
    Vision Line Following
    To achieve line following, it extracts ROI area with OpenCV first. Then remove noise to locate the line on binary image. Lastly, use PID algorithm to perform direction calibration.1_d1c0eca0-d333-47d2-9161-4c35757c31f6.j

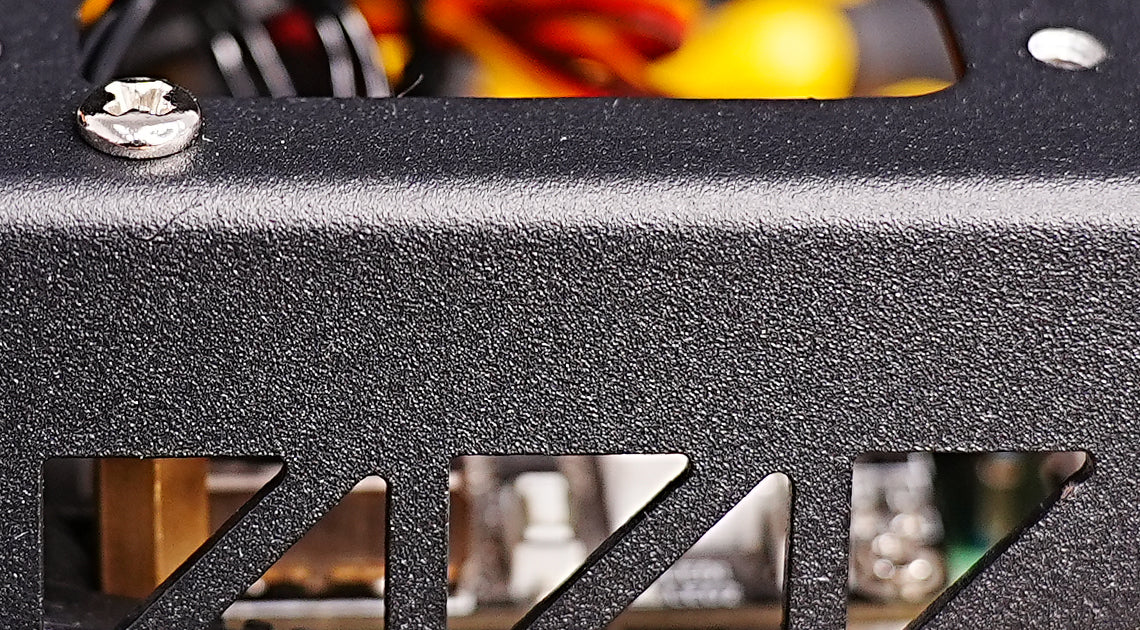

    Hard Aluminium Alloy Chassis
    It protects the core control board from shattering and shocking and can bear bigger load!2_916660e3-39f2-4493-8329-488282e94f9d.j

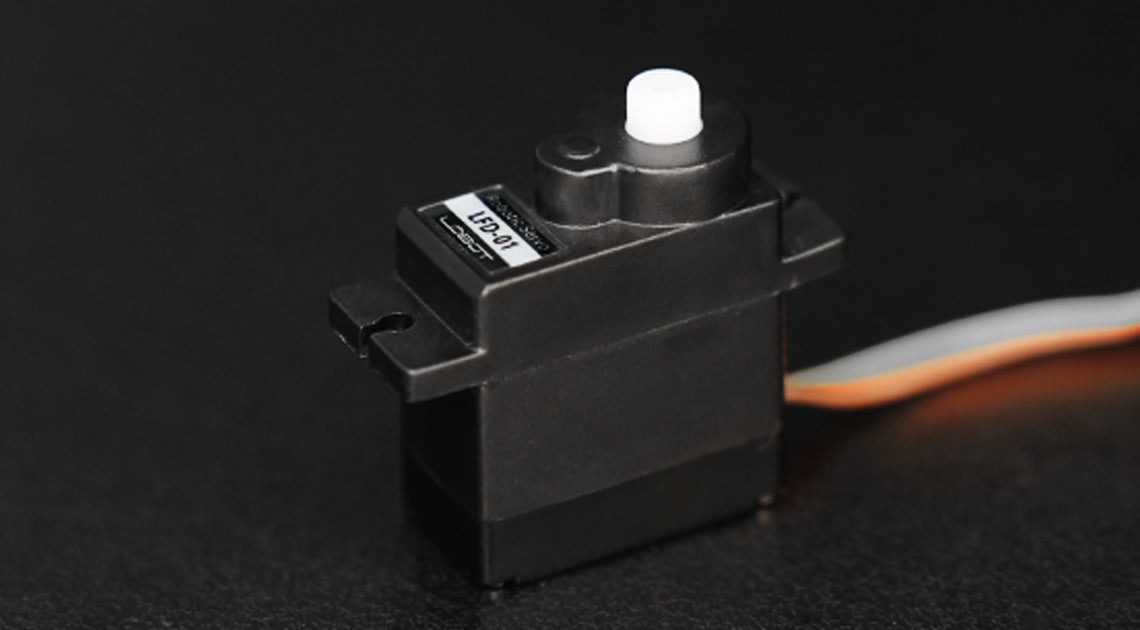

    High Performance Pan Tilt Servo
    2DOF pan tilt is equipped with micro anti-blocking servo which has higher accuracy and longer service life.3_ce7bbc9b-9497-448e-b263-e32b9eb785da.j

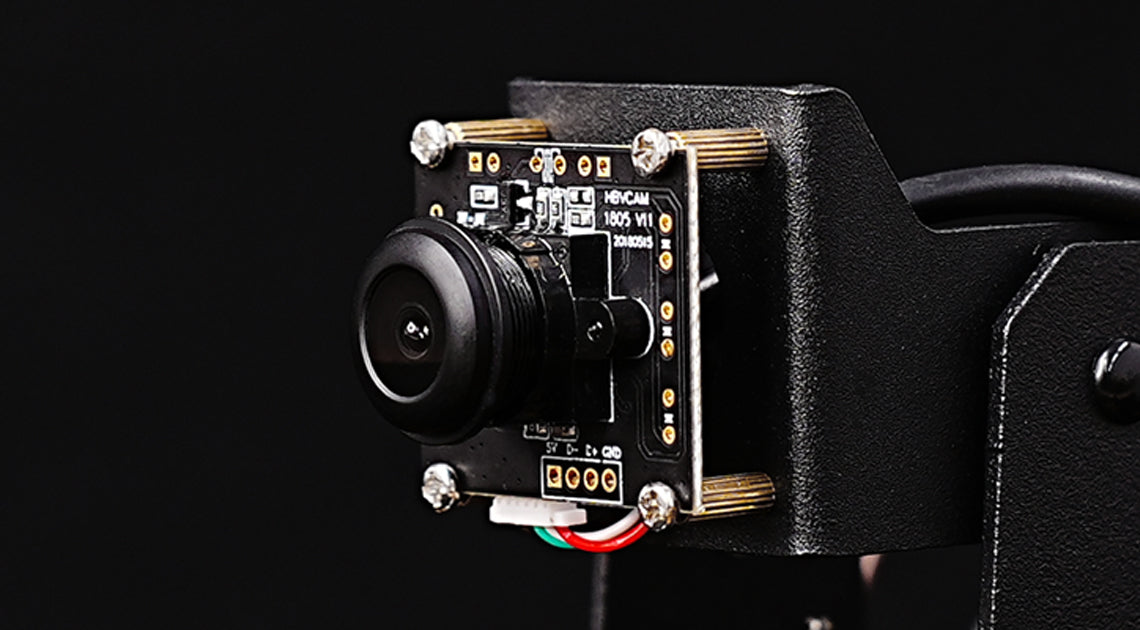

    HD 120° Wide Angle Camera
    Loaded with 120° wide-angle camera, TurboPi can look around 180°, and up and down 180°. Combined with mecanum chassis car, its visual range is up to 360°.4_8bbd9b48-6ba8-4585-8df0-51708f54c198.j

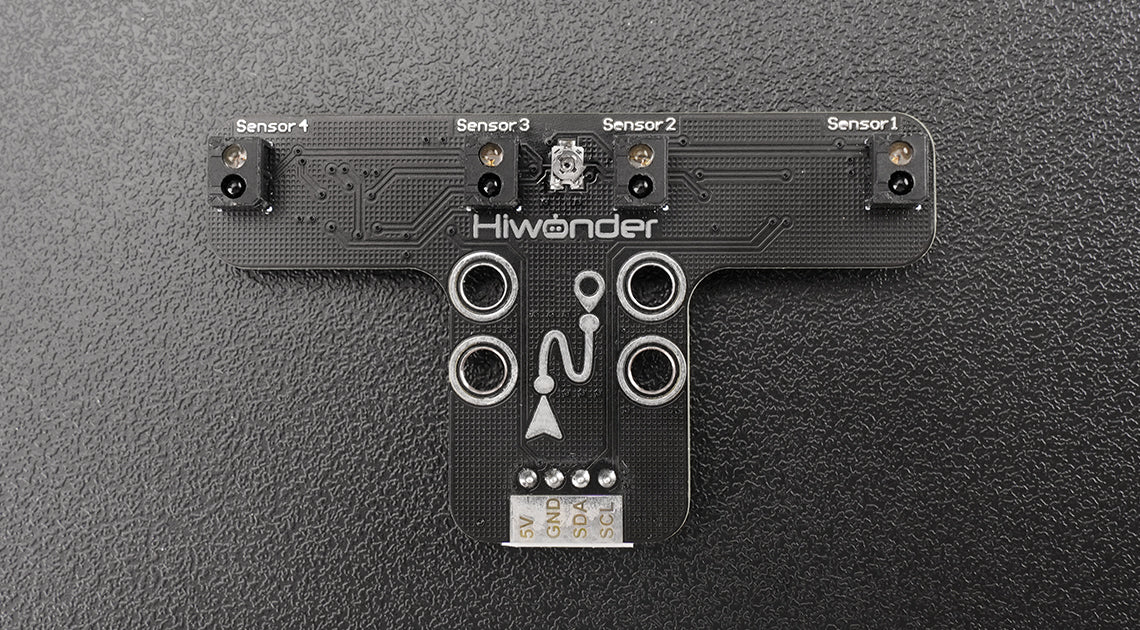

    4-channel Line Follower
    4-channel line follower with IIC interface enables TurboPi to detect black line without occupying Raspberry Pi CPU.
    Product dimension: 187*162*139mm
    Weight: 0.8kg
    Material: Metal bracket
    Camera resolution: 480P
    DOF of camera pan tilt: 2DOF Horuzontal/ vertical rotation angle: 180°
    Power supply: 2* 18650 Lipo batteries
    Working life: 11.1V 2500mAh 10C lithium battery
    Working hour: About 60min
    Hardware RaspberryPi CM4 & RaspberryPi expansion board
    Software: VNC software(PC) + WonderPi APP(iOS/ Android)
    Communication metnod: Wi-Fi, Ethernet
    Servo: LFD-01 anti-blocking servo
    Control method: PC/ phone control
    Package size: 330*290*85mm(length*width*height)
    Package weight: About 1.6kg
    Product Parametersaf86c37a16eaf28deaa5faa051043e1e_2a5dcf0
    Dimensional Diagram
