The HS-311 is the perfect servo for inexpensive applications. Do not let the price fool you though, this servo features many of the same aspects of more expensive servos. One peice circuit board and tight mesh gears ensures great durability. Comes with a number of various servo horns and arms with mounting hardware.This servo can operate 180° when given a pulse signal ranging from 600usec to 2400usec.

SPECIFICATION

• Speed: 0.19 sec/60° at 4.8V
• Speed: 0.15 sec/60° at 6.0V
• Torque: 42.00 oz-in at 4.8V
• Torque: 51.00 oz-in at 6.0V
• Length:  1.60" (41mm)(1.6 in)
• Width:   0.80" (20mm)(0.8 in)
• Height:  1.40" (37mm)(1.46in)
• Weight:  1.5oz (43g)

DOCUMENTS

• HS311 datasheet

SHIPPING LIST

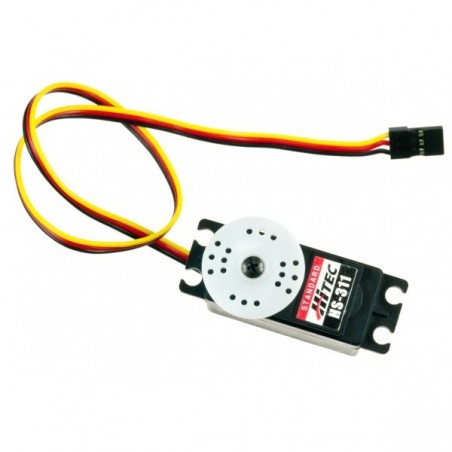

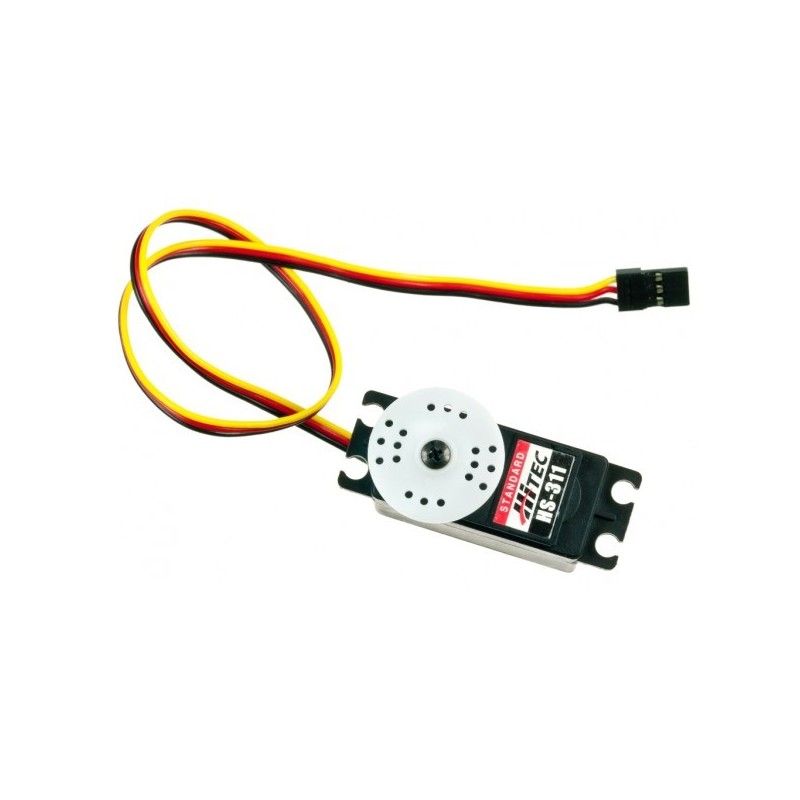

• Hitec HS311 Standard Servo x1
