Here, for all your mechatronic needs, is a simple, high quality continuous rotation servo motor. This servo is able to take in 6 volts and deliver 30.6 oz-in. of maximum torque at 0.14 sec/60°

A standard 3-pin power and control cable is attached and all hardware listed below is included.

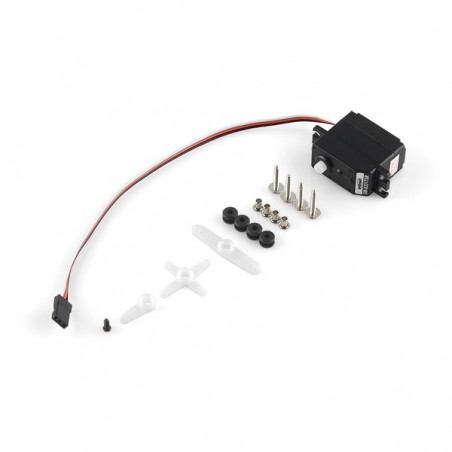

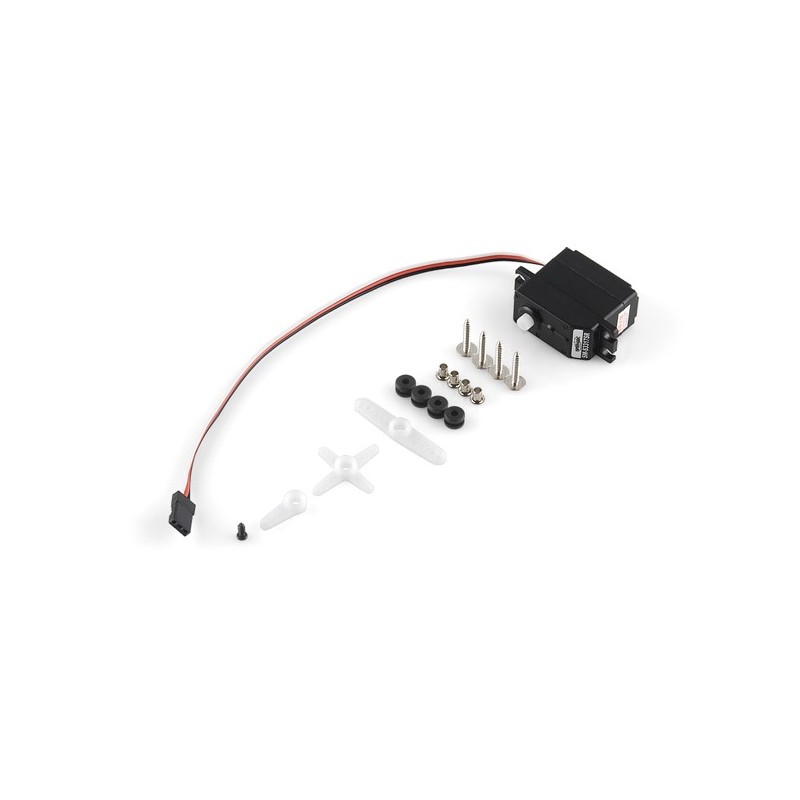

• 1x SM-S3317S Full Rotation Servo
• 1x Single Arm Horn
• 1x Double Arm Horn
• 1x Four Point Horn
• 4x Rubber Grommets
• 4x 2x15mm Phillips Screw
• 4x Brass Eyelets

• Voltage: 4.8-6.0 Volts
• Torque: 27.8/30.6 oz-in. (4.8/6.0V)
• Speed: 0.16/0.14 sec/60° (4.8/6.0V)
• Rotation: 360°
• Dual Ball Bearing
• Plastic Gears* 31.3 x 16.3 x 28.5mm
• Wire Length: 160mm
• Weight: 18g

• Dimensional Drawing
• Datasheet (SM-S3317S)
