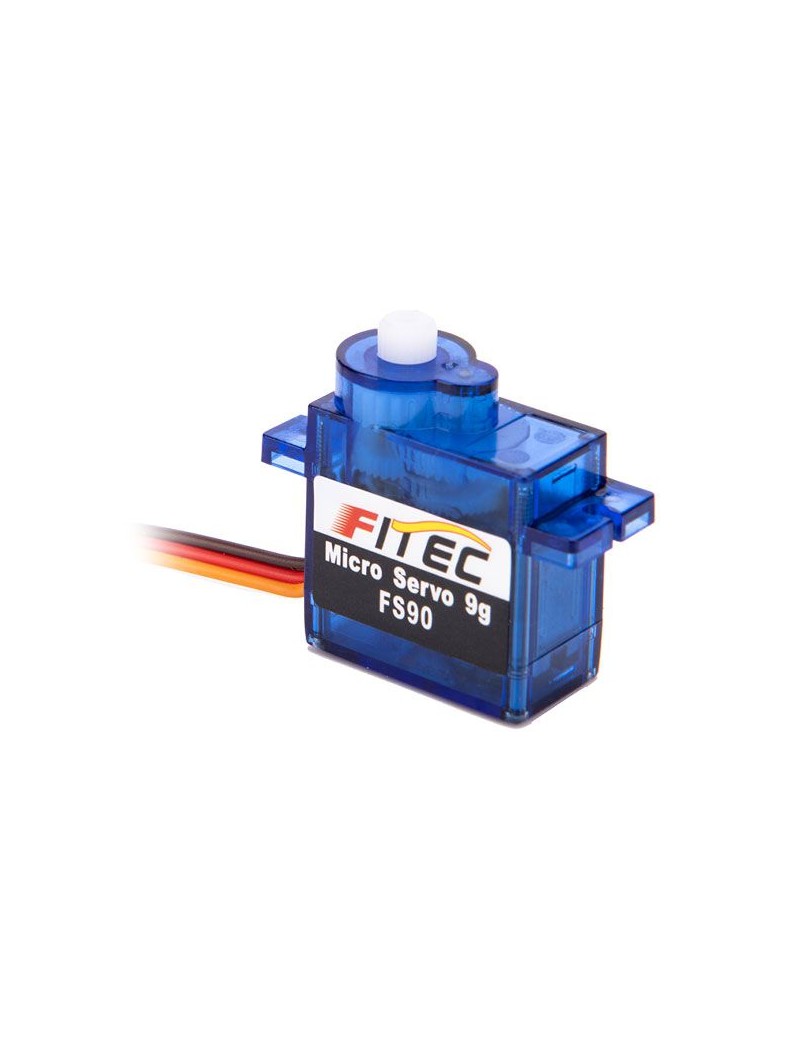

FITEC FS90 Micro Servo

5,73 €
Tasse incluse

FEETECH FS90 Micro Servo

Quantità

he FS90 analog servo from FEETECH is a great general-purpose micro servo at a great price. Servo horns and associated hardware are included.

Key specs at 6 V: 0.10 sec/60°, 21 oz-in (1.5 kg-cm), 9.0 g.

Overview

This is a great general-purpose actuator for tiny mechanisms. The FS90 is a 9 g analog servo from FEETECH (formerly known as Fitec) that offers position control over a 120° operating angle for standard servo pulses between 900 µs and 2100 µs. As with most servos, the pulse range can be expanded to achieve an expanded operating angle, but the limits of this are not specified by FEETECH.

The servo has a 8? (200 mm) lead that is terminated with a JR-style connector and includes additional servo horns and mounting hardware. The following picture shows an example of the hardware that might be included (actual hardware could vary):

0J5404.650.jpg?b1c148758938faa70f82f5950

Note that as with most hobby servos, stalling or back-driving this servo can strip its gears.

FS90 vs FS90R

Two versions of this servo are available. This product is the FS90, which offers closed-loop position control over a limited range. Alternatively, the FS90R is specifically designed to be a continuous-rotation micro servo that offers open-loop speed control. The FS90 and FS90R have identical dimensions and use the same motor, so the FS90 will also work with our 60×8mm wheel for the FEETECH FS90r

Dimensions

Size: 23.2 × 12.5 × 22 mm
Weight: 9 g

General specifications

Digital?: N
Free-run current @ 6V: 200 mA
Stall current @ 6V: 600 mA1
Speed @ 6V: 0.10 sec/60°
Stall torque @ 6V: 1.5 kg·cm
Speed @ 4.8V: 0.12 sec/60°
Stall torque @ 4.8V: 1.3 kg·cm
Lead length: 8 in
Hardware included?: Y
PO-2818
