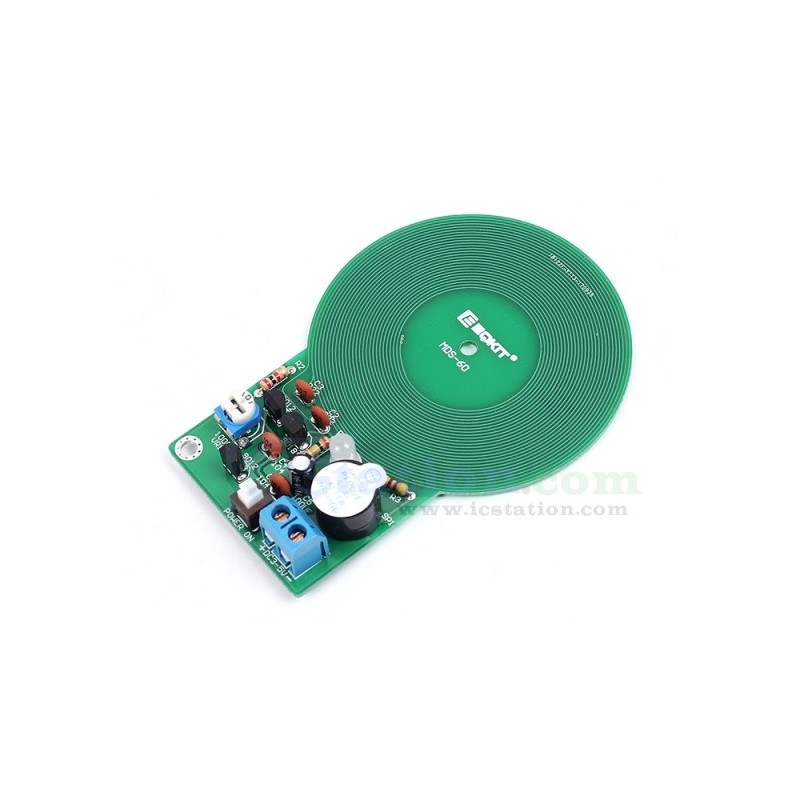

DIY Kit Metal Detector Kit Electronic Kit DC 3V-5V 60mm Non-contact Sensor Module Kits for Security Test
"
Description:
This is a DIY metal detector kit parts. You need solder it by yourself.
Parameters:
| NO. | Parameters | Value |
| 1 | Name | Metal detector |
| 2 | Operating voltage | DC 3-5V |
| 3 | Operating current | ? 40mA |
| 4 | Standby current | ? 5mA |
| 5 | Detection depth | ? 60mm |
| 6 | Detection and alarm mode | Sound and Light |
| 7 | Difficulty of welding machine | Easy |
| 8 | Circuit board size | 86*61mm |
| 9 | Packing weight | 16g/kit |
Component list:
| NO. | PCB Marker | Component Name | Parameter | QTY |
| 1 | R3 | RES | 470R | 1 |
| 2 | R2 | RES | 2K | 1 |
| 3 | R1 | RES | 200K | 1 |
| 4 | VR1 | ADJ-RES | 100R | 1 |
| 5 | C2.C3 | CAP | 222P | 2 |
| 6 | C1.C4 | CAP | 104P | 2 |
| 7 | C5 | E-CAP | 100UF | 1 |
| 8 | LED1 | LED | 5mm Red | 1 |
| 9 | Q2.Q3 | Triode | S9012 | 2 |
| 10 | Q1 | Triode | S9018 | 1 |
| 11 | SW1 | Power | SW | 1 |
| 12 | SP1 | Buzzer | 9*12 | 1 |
| 13 | J1 | Power-Socket | KF301-2 | 1 |
| 14 | —— | PCB | MDS-60 | 1 |
| 15 | Choose | Battery box | AA1.5V*3 | 1 |
Installing Tools:
NOTE! YOU NEED PREPARE THE TOOLS TO INSTALL THE KIT PARTS.
| Electric soldering iron | Multimeter | Solder wire |
| Soldering iron holder | Diagonal cutting pliers | Screwdriver |
| Tweezers | Sharp-nose pliers | Solder sucker |
| Sponge | Screwdriver kit |
Installation Steps Download:
Diagram:
Finished Product:
Tested by ICStation's Outstanding Partner Workshop MasterOK electronics Repair:
When the Metal is close to DIY Metal Detector , the LED will be on. And it also make some alarm voice.
"
