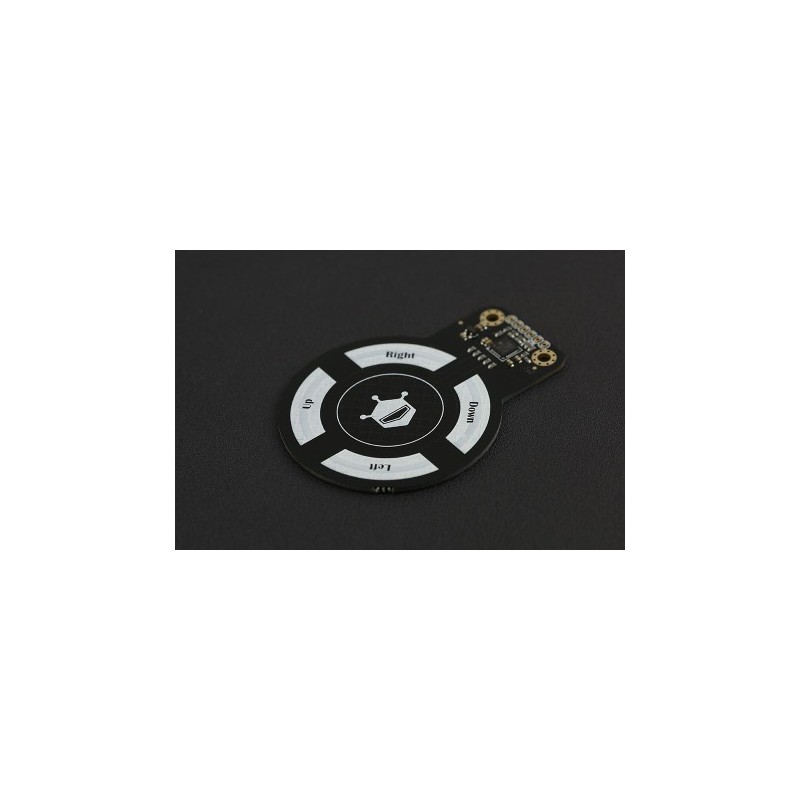

The DFRobot 3D gesture sensor is an interactive sensor that integrates 3D gesture recognition and motion tracking. This gesture sensor can be used to detect clockwise/counterclockwise rotation and movement directions.

The gesture sensor is designed based on Microchip patent GestIC® technology, using electric near field sensing technology, including 3D gesture input sensing system and advanced 3D signal processing unit. The effective detection range is 0-10cm. This gesture sensor can be applied to various interactive projects.

SPECIFICATION

• Operating Voltage: 3.3 - 5V
• Interface Type: I2C
• I2C Address: 0x42
• Gesture Detection Range: 5cm
• Distance Induction Range: 10cm
• Dimensions : 72 x 54 mm / 2.83 x 2.12"
• Operating Temperature: - 20 ℃ ~ + 85 ℃
• Spatial Resolution: 150 dpi

DOCUMENTS

• 3D Gesture Sensor wiki
• More Documents

SHIPPING LIST

• 3D Gesture Sensor mini x1
• XH2.54-6P pin header x1
