INTRODUCTION

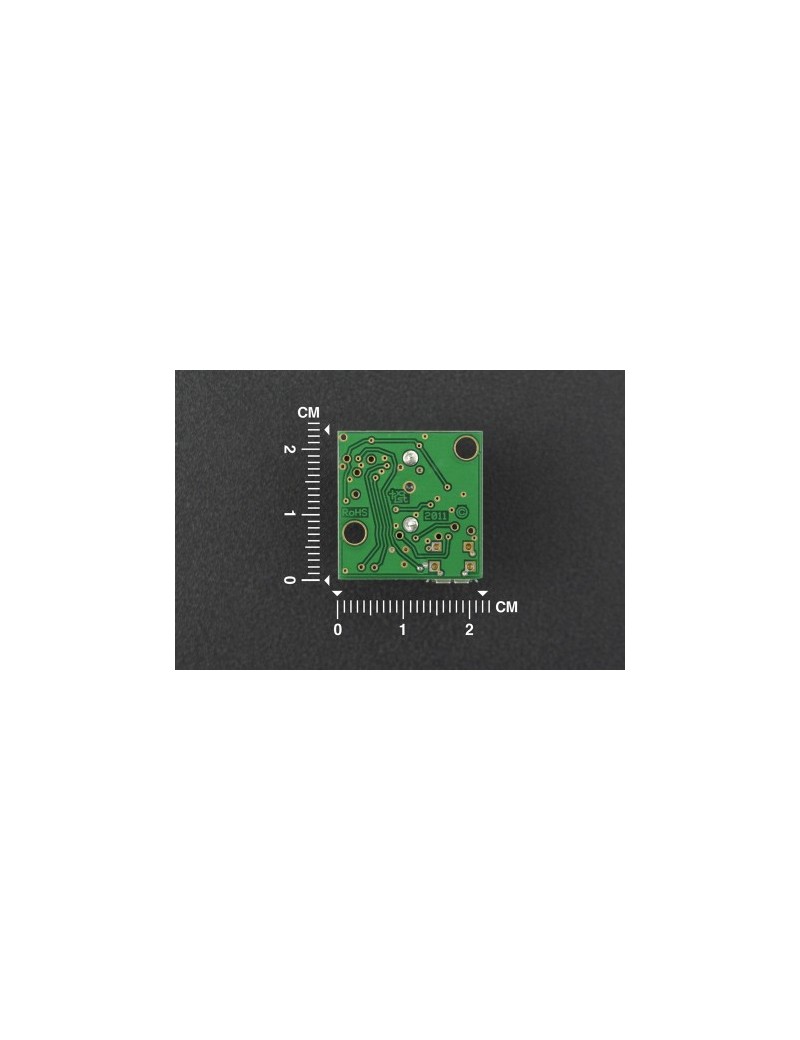

The MB1414 USB-ProxSonar-EZ1 sensor features one-inch resolution and serial data over an easy to use USB interface, providing both proximity and range information for the nearest detectable target.
The USB-ProxSonar-EZ line is designed to detect people or obstacles that enter within a calibrated detection zone. The USB-ProxSonar-EZ proximity sensors report when a person or other detectable target enters the detection zone. The target is released after leaving the USB-ProxSonar-EZ's detection zone.
The MB1414 has a detection zone of ~5 feet. The MB1414 will allow for 8+ simultaneous sensors depending on sensor mounting and environment.

SPECIFICATION

• USB interface
• ~2.5 second target acquire time*
• ~1.5 second target release time*
• Automatic multi-sensor operation
• People sensor
• Resolution of 1 inch
• Maximum Range of 125 inches (318 cm)
• Detection zone range of 60 inches (152 cm)
• 42kHz Ultrasonic sensor measures distance to objects
• RoHS compliant
• Virtually no sensor dead zone, objects closer than 6 inches range as 6 inches
• Small, light weight module
• Designed for easy integration into your project or product
• Longest range detection zone

DOCUMENTS

SHIPPING LIST

• USB-ProxSonar-EZ1(MB1414) x1
