Slow Vibration Sensor Switch (Hard to trigger)
  • Slow Vibration Sensor Switch (Hard to trigger)

Slow Vibration Sensor Switch (Hard to trigger)

0,85 €

Slow Vibration Sensor Switch (Hard to trigger)

Quantità
In Stock

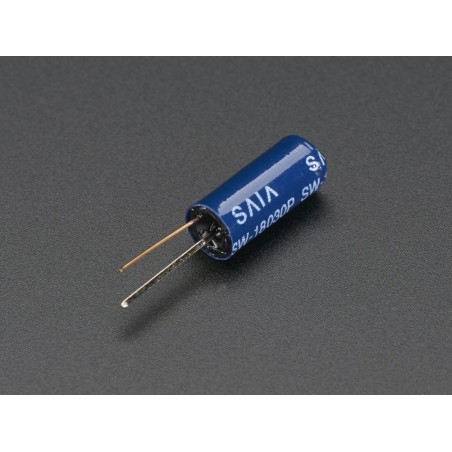

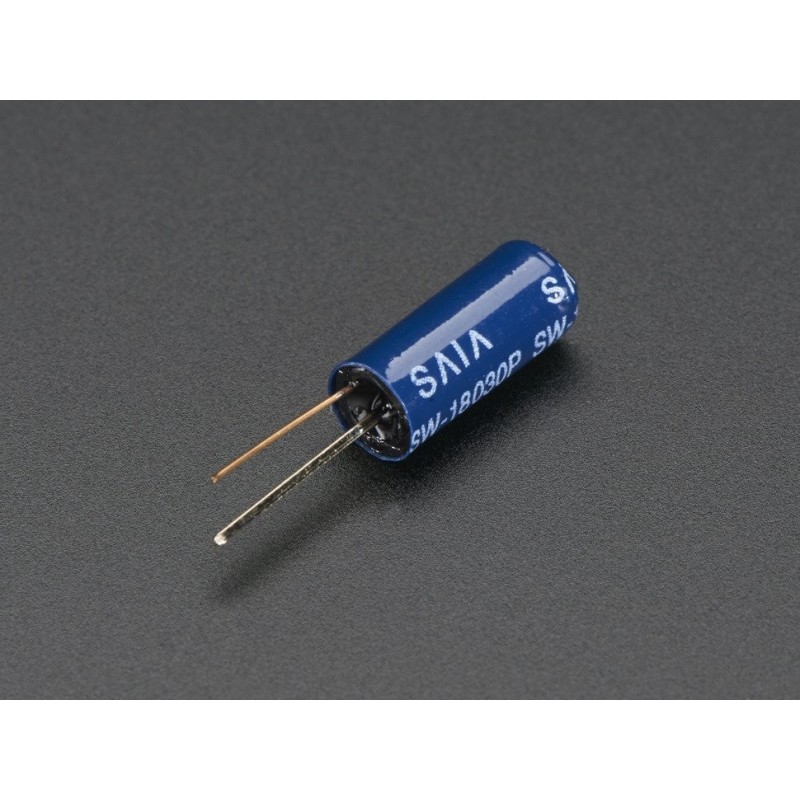

  • The "poor man's" accelerometer/motion sensor! These spring-vibration switches are low sensitivity non-directional vibration induced trigger switches. Inside is a stiff spring coiled around a long metal pin. When the switch is moved, the spring touches the center pole to make contact. So, when there's motion, the two pins will act like a closed switch. When everything is still, the switch is open. Great for basic projects and wearables!


    We also have a version with a less stiff spring which makes it a little easier to trigger, and a version with a very soft spring which makes it much easier to trigger!

  • Technical Details

    Electrical characteristics:

    • Maximum Voltage: 12V
    • Contact Resistance: <10 ohm
    • Contact Time: 2 ms
    • Maximum Current: 20mA
    • Insulation Resistance: >10M ohm
    • Temperature Range: -40 to 80ºC
    • Operating lifespan: 100,000 cycles
    • Diameter: 5mm/0.2"
    • Height (w/ pins): 21mm/0.8"
    • Height (w/o pins): 11mm/0.4"
    • Weight: 0.30g
