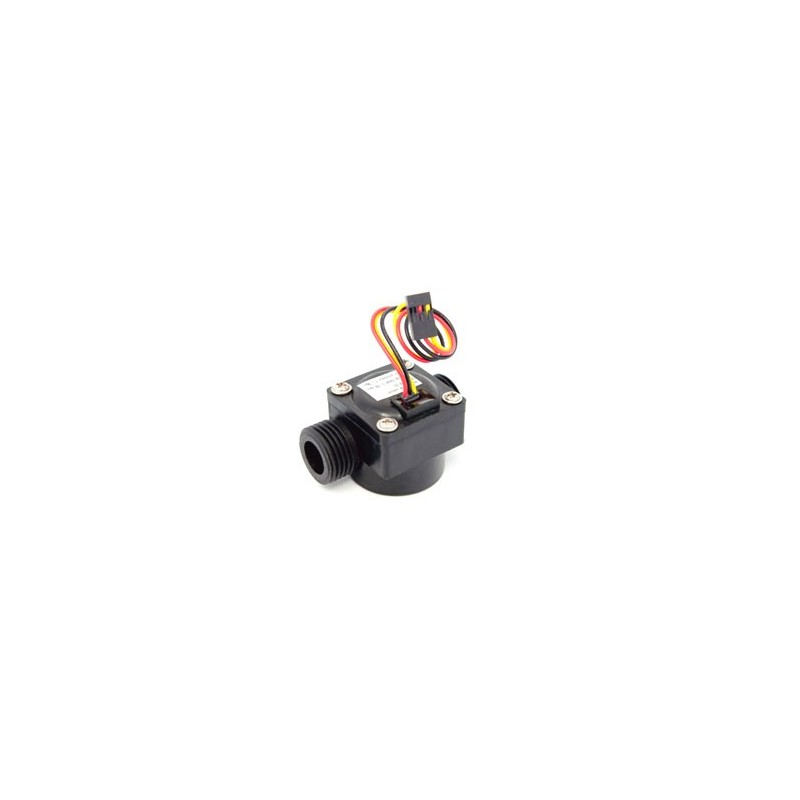

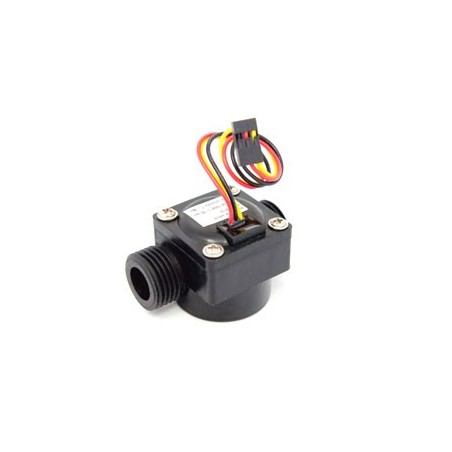

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine. We have a comprehensive line of water flow sensors in different diameters. Check them out to find the one that meets your need most.

Features

• Compact, Easy to Install


• High Sealing Performance


• High Quality Hall Effect Sensor


• RoHS Compliant

Specifications

• Mini. Wokring Voltage: DC 4.5V


• Max. Working Current: 15mA (DC 5V)


• Working Voltage: DC 5V~24V


• Flow Rate Range: 1~30L/min


• Load Capacity: ≤10mA (DC 5V)


• Operating Temperature: ≤80℃


• Liquid Temperature: ≤120℃


• Operating Humidity: 35%～90%RH


• Water Pressure: ≤1.75MPa


• Storage Temperature: -25～+ 80℃


• Storage Humidity: 25%～95%RH
