The VL53L3CX is the latest Time-of-Flight (ToF) product from STMicroelectronics and embeds ST’s third-generation FlightSense technology. With the improved detection accuracy, the sensor features a 25~3000mm sensing range, automatic smudge correction, and glass cross-talk immunity. With special algorithms and ingenious module construction, the VL53L3CX is also able to detect different objects within the field of view (FoV) with depth understanding.

Note 1: The product has only been verified on M0 and ESP32 due to the large size of its algorithm files.

Note 2: Multi-target distance measurement can only be triggered under certain conditions. Please refer to their official Web for more details.

Board-Overview

• High accuracy distance measurement
• Long-distance and accurate ranging up to 300 cm
• Typical full FoV 25°
• Multi-target distance ranging
• Immune to glass cross-talk
• Smudge compensation function

• Power Supply: 3.3V~5V
• Operating Current: ＜20mA
• Detection Range: 25-3000mm
• Emitter: 940nm invisible laser(VCSEL)
• FOV: 25°
• I2C Address: 0x29
• Operating Temperature Range: -20℃~85℃
• Dimension: 18x15mm/0.71x0.59"

• Product wiki

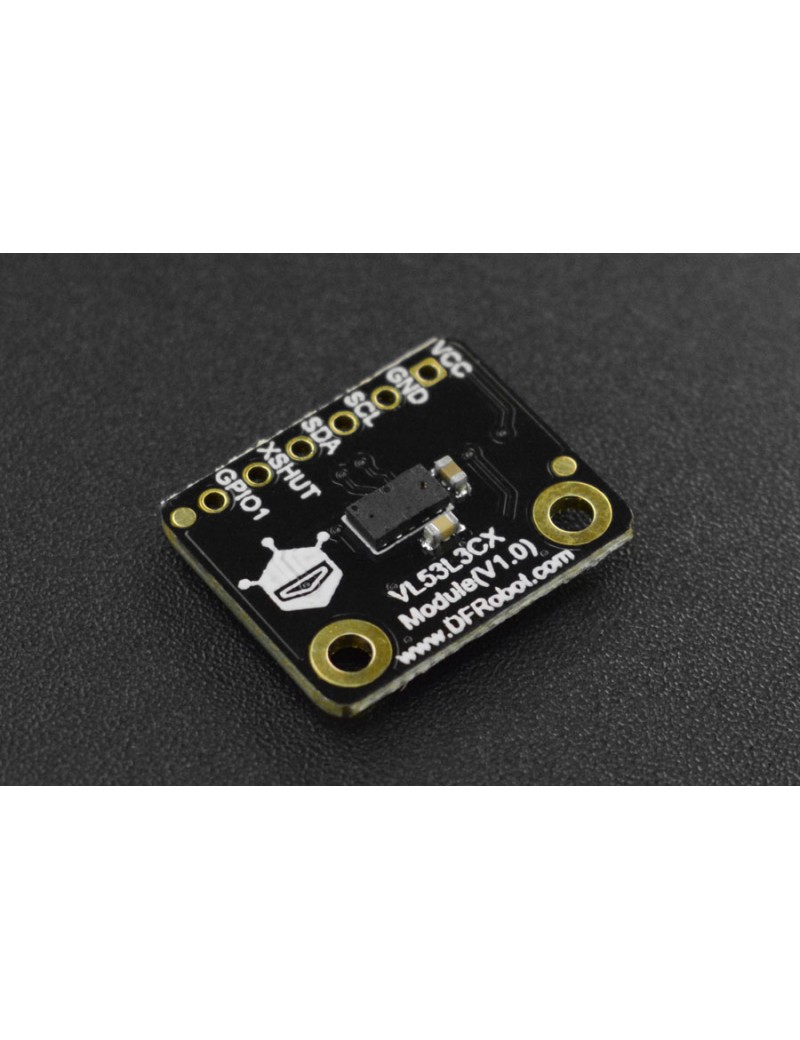

• Fermion:VL53L3CX ToF Distance Ranging Sensor(Breakout) x1
• 2.54-6P Black Single Row Connector x1
