Octopus Digital PushButton

3,05 €
Tasse incluse

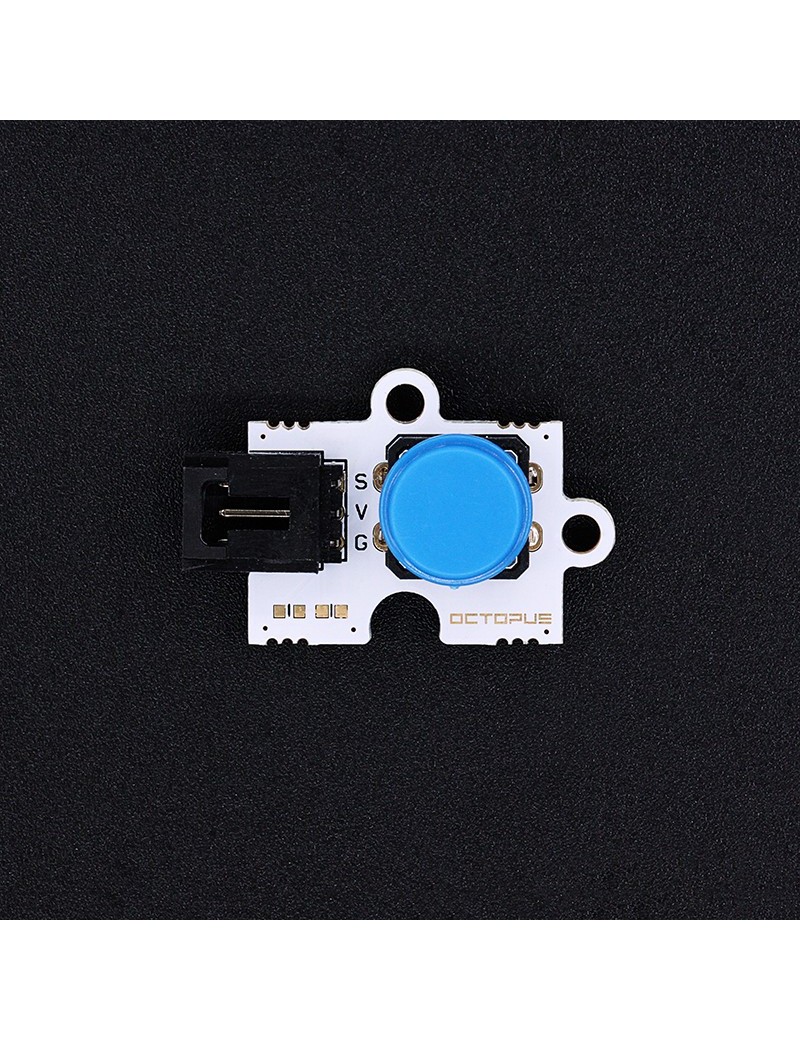

Octopus Digital PushButton Brick OBPushButton - Blue

Quantità
Add to Compare
Add to Wishlist

Octopus Electronic Bricks, you can use them build electronics projects just as easy as piling bricks. By using Octopus electronic bricks, you may connect Arduino/Freaduino compatible boards easily with various digital, analog and I2C/Uart interfaces. These the breadboard-less firm connection are prepared to extensive modules like poteniometers, sensors, relays, servos even buttons, just plug and play.

This is a digital push button sensor, which detects your press action. It is ideal for beginner class to test the Arduino or be your first sensor in your project. It was easy be used for Chipkit, STM32, AVR, ARM and other mirc-MCU.

The Freaduino Sensor Shield is the perfect shield to connect this senor to Arduino. Or Freaduino UNO which we had pre-stray Octopus Brick interface.

There are two color for you choosing, Red and Blue.

xxx

Features

  • 3P buckled wires connector

  • Easy to 'plug and play

  • Large button keypad and high-quality first-class hat

  • Able to achieve very interesting and an interactive work

Specification

  • Big button module pin definition: (1) Output (2) VCC (3) GND

xxx

xxx

Packing List

  • 1 x Digital PushButton Brick
  • 1 x Analog Sensor Cable

Quick Start

Hardware Connection

Connect the push button brick to P0 port on OCTOPUS:BIT.





Programming

Code

You can see the whole program from the link here: https://makecode.microbit.org/_FD1hUTJYv4r8

Or you can download it from the page below.



Result

When the button isn't pressed, micro:bit will display a rectangle; when it is pressed, micro:bit will display a heart.



Resources:

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials.

EF-04034
