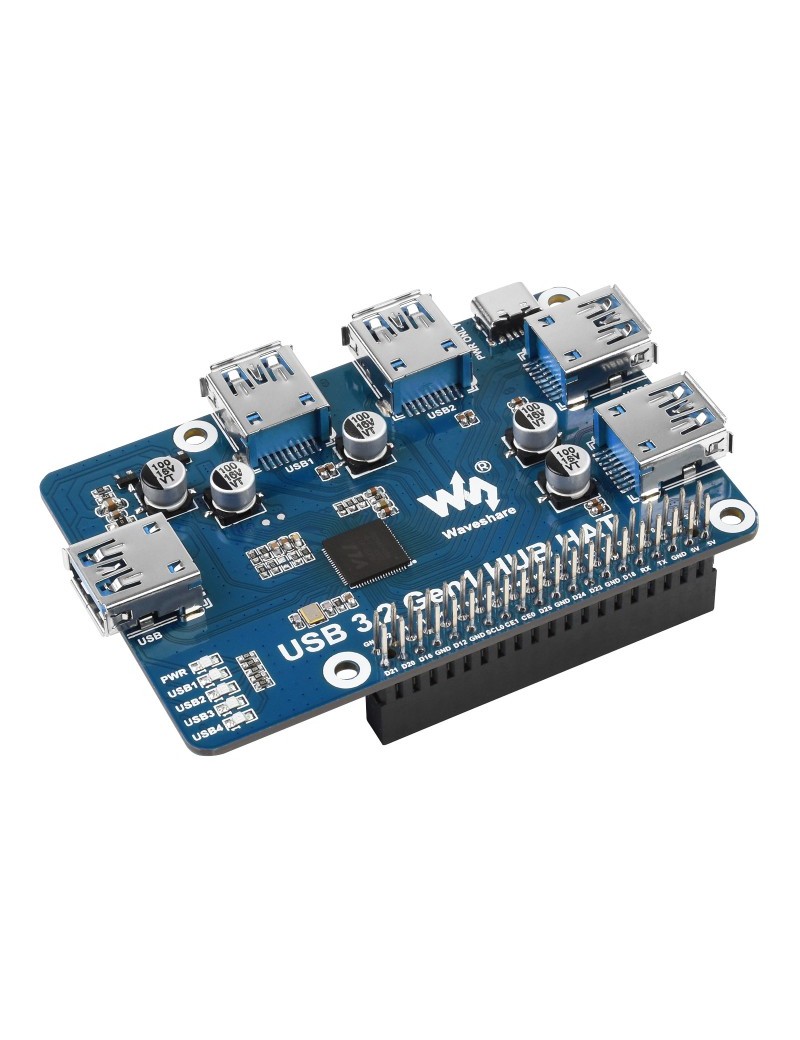

USB 3.2 Gen1 HUB HAT for Raspberry Pi
Write your review
29,99 €
Tasse incluse
This is a driver-free 4 ports USB 3.2 Gen1 hub HAT for Raspberry Pi, provides more USB capability to your Pi, make it easy to connect more USB devices.
The HAT features standard Raspberry Pi 40PIN GPIO extension header, when working with Raspberry Pi 4, the USB 3.2 Gen1 ports is able to provide up to 5 Gbps data rate, which means 10 times faster than USB 2.0.
Features At A Glance
- 4x USB 3.2 Gen1 ports, compatible with USB 3.0 / 2.0 /1.1
- Onboard external USB-C 5V DC power port, ensures more stable power supply
- 1x power indicator and 4x USB port indicators, easy to check the operating status
- Driver-free, plug and play, compatible with OS including Windows, mac OS, Linux and Android
- Purpose-made for Raspberry Pi 4, compatible with other Raspberry Pi version as well
- Comes with development resources and manual
Designed For Raspberry Pi Series
Standard Raspberry Pi 40PIN GPIO Header, Customized For Raspberry Pi Series Boards
Only Raspberry Pi 4B and Pi 400 support USB 3.0 for the moment, therefore, when working with other previous Raspberry Pi versions, there will be a data rate degradation.
External Power Supply Support
Onboard External USB-C 5V DC Power Port
Combined with the Raspberry Pi USB power source, it is capable of connecting more USB loads, even the high-power disk device
Multiple Indicators
Easy To Check The Operating Status Of Power And USB Ports
Various USB Devices Support
Driver Free, Plug & Play
Compatible With OS Including Windows, Mac OS, Linux And Android
What's On Board
- Raspberry Pi GPIO header
for connecting Raspberry Pi - USB 3.2 Gen1 HUB input
connects to Raspberry Pi USB port - USB 3.2 Gen1 extended ports
USB1~USB4 - PWR ONLY port
for external USB-C 5V DC power input
- VL817-Q7
USB HUB chip - MX25L512EOI-10G
FLASH chip - PWR
power indicator - USB1~USB4
USB1~USB4 indicators
Outline Dimensions
