Raspberry Pi Compute Module 4 IO board
Write your review
64,54 €
Tasse incluse

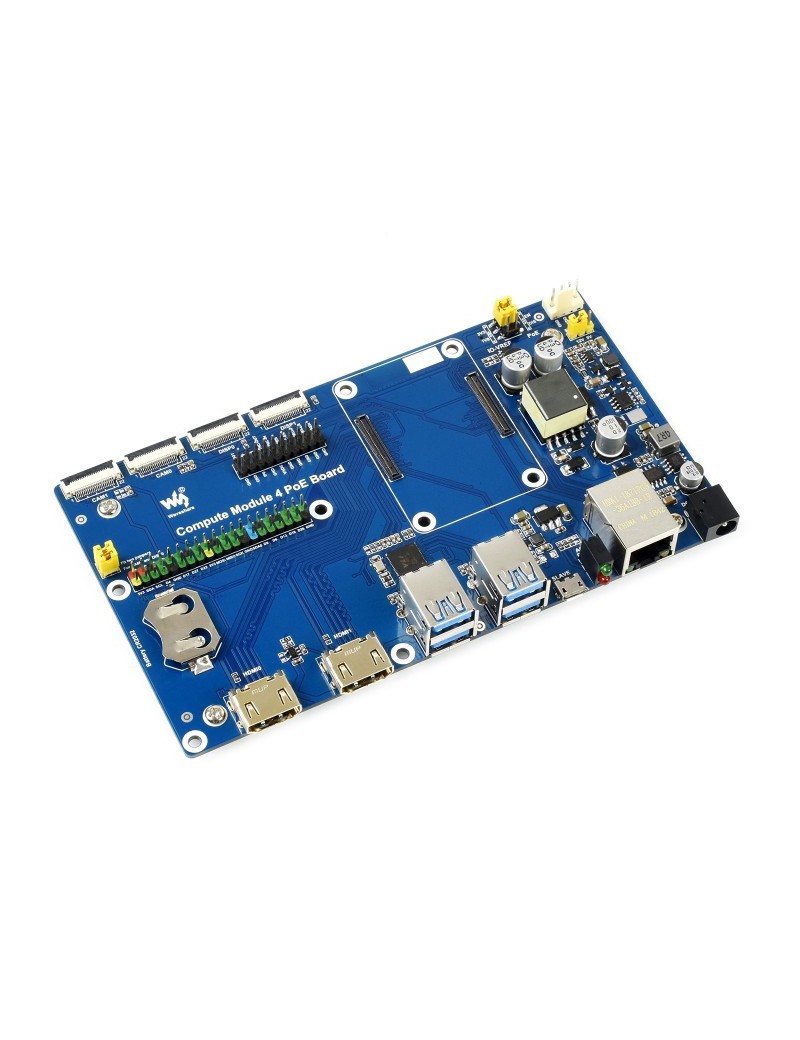

Compute Module 4 PoE Board
Suitable For Evaluating The Raspberry Pi CM4 Or Being Integrated Into End Products
PoE Base Board for all Compute Module 4 Variants
Connecting With Compute Module 4
Standard CM4 Socket And Color-Coded Raspberry Pi 40PIN GPIO Header
Suitable For All Variants Of Compute Module 4
Rich Peripheral Connectors
Onboard Connectors Including CSI/DSI/RTC/HDMI/USB/ETH/TF Card
Application Example
Suitable For PoE Powered Raspberry Pi Projects, Or Other Industrial Context
for reference only, CM4, display, and cameras are NOT included.
What's On Board
- CM4 socket
suitable for all variants of Compute Module 4 - Power input
7~36V wide range power supply - Gigabit Ethernet connector
Gigabit Ethernet RJ45 with PoE support - USB SLAVE port
allows burning system image into Compute Module 4 eMMC variants - USB3.2 ports
4x USB 3.2 Gen1 ports, for connecting sorts of USB devices - HDMI ports
2x HDMI ports, supports dual 4K 30fps output - RTC
RTC battery holder, allows RTC-related functions like wakeup, shutdown, reboot, and more - CAM
2x MIPI CSI camera ports - DISP
2x MIPI DSI display port
- FAN
for connecting cooling fan, allows speed adjustment and measurement - FAN power selection
5V or 12V voltage to drive the fan - IO-VREF/PoE selection
CM4 IO logic level: 3.3V or 1.8V
PoE: enable (EN) or disable (DIS) - 40PIN GPIO header
- CAM0 and DISP0 I2C bus
fit the jumpers when using CAM0 or DISP0 - Misc configurations
- Dual LED indicators
red: Raspberry Pi power indicator
green: Raspberry Pi operating statusindicator - TF card slot (bottom side)
insert a Micro SD card with pre-burnt system, to start up Compute Module 4 Lite
Outline Dimensions
