PhidgetSBC3

210,21 €
Tasse incluse

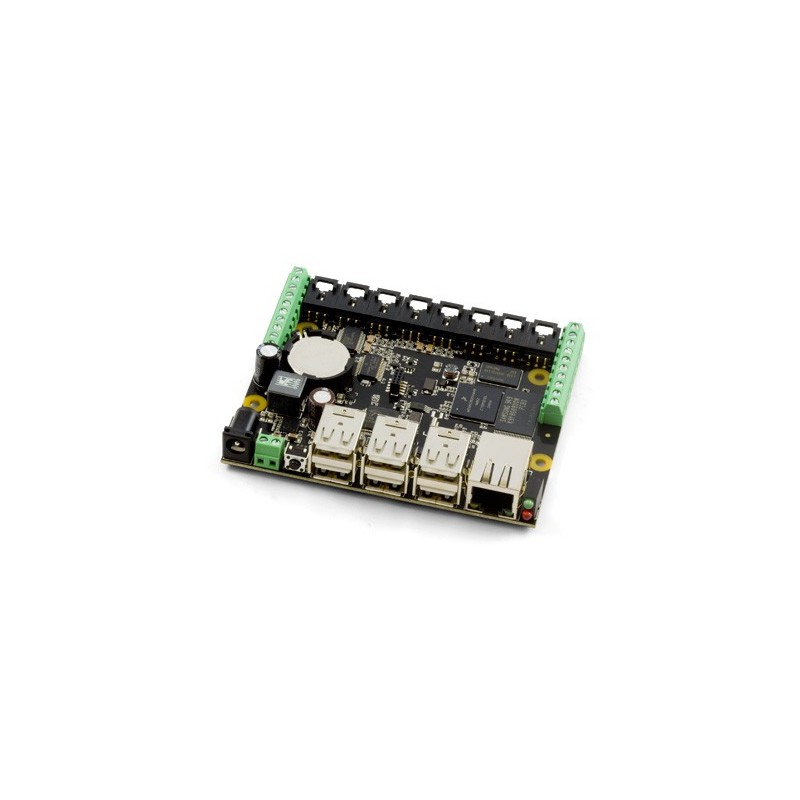

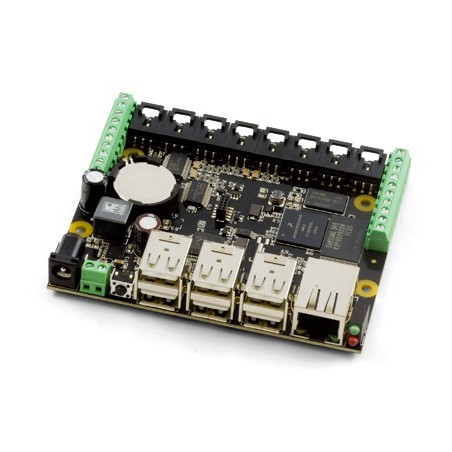

PhidgetSBC3

Quantità

"

Product Description

The PhidgetSBC3 is a Single Board Computer with an integrated PhidgetInterfaceKit 8/8/8. At its most basic, it can be thought of as a Phidget that you connect using a network cable instead of USB. The PhidgetSBC3 also provides six high-speed ports that allow you to use normal USB Phidgets over its network connection. This can extend the effective range of a Phidget from USB’s maximum of 15 feet, to anywhere that your network reaches.

The PhidgetSBC3 exposes an easy to use interface for setting up and running custom applications on-board. This allows the PhidgetSBC3 to operate autonomously, without the need for a graphical interface or a remote connection at all times.

For more advanced users, the PhidgetSBC is an embedded computer that runs Debian GNU/Linux. We provide full shell access via a built-in SSH server, access to the full Debian package repository, and all of the standard command line tools expected on a modern Linux system.

An integrated PhidgetInterfaceKit 8/8/8 allows you to connect devices to any of 8 analog inputs, 8 digital inputs and 8 digital outputs. It provides a generic, convenient way to interface your PC and PhidgetSBC with a wide variety of devices and it operates exactly the same way as an external PhidgetInterfaceKit.



Product Specifications

SBC

CPU Freescale i.MX28
Core ARM926EJ-S
CPU Speed 454 MHz
NAND Memory Size 1 GiB
SDRAM Size 128 MiB
Boot Time 30 s
Ethernet Cable 10/100BASE-T
Operating System Debian Linux

Board

Supply Voltage Min 6 V DC
Supply Voltage Max 15 V DC
Available External Current 500 mA
Power Jack Hole Diameter 5.5 mm
Power Jack Pin Diameter 2.1 mm
Power Jack Polarity Center Positive
Recommended Wire Size 16 - 26 AWG
Operating Temperature Min 0 °C
Operating Temperature Max 70 °C
Power Consumption Base (w/ Ethernet) 1.2 W

Analog Inputs

Number of Analog Inputs 8
Analog Input Resolution 10 bit
Input Impedance 900 k?
Analog Input Voltage Min 0 V DC
Analog Input Voltage Max 5 V DC
5V Reference Error Max 0.5 %
Analog Input Update Rate Min 1 samples/s
Analog Input Update Rate Max (4 Channels) 1000 samples/s
Analog Input Update Rate Max (8 Channels) 500 samples/s
Analog Input Update Rate Max (WebService) 62.5 samples/s

Digital Inputs

Number of Digital Inputs 8
Pull-up Resistance 15 k?
Low Voltage Max (True) 900 mV DC
High Voltage Min (False) 4.2 V DC
Low Voltage Trigger Length Min 4 ms
High Voltage Trigger Length Min 15 ms
Digital Input Voltage Max ± 15 V DC
Digital Input Update Rate 125 samples/s

Digital Outputs

Number of Digital Outputs 8
Series Resistance 300 ?
Digital Output Current Max 16 mA
Digital Output Voltage Min 0 V DC
Digital Output Voltage Max 5 V DC

USB Hub

Number of USB Ports 6
Available Current per USB Port 500 mA
USB Speed High Speed
Resources

"

PH-1073
