Overview

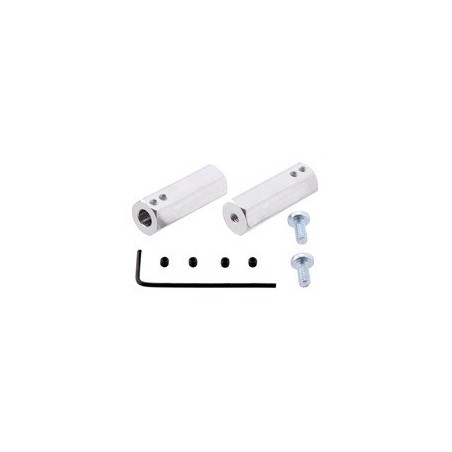

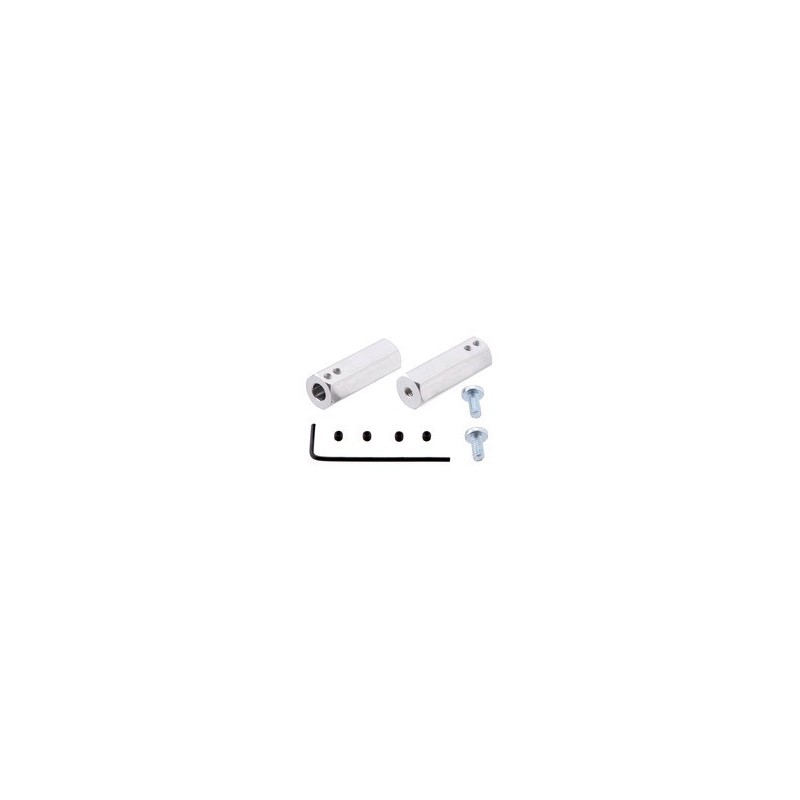

These light-weight aluminum shaft adapters convert a typical motor output shaft into a 12 mm hex shaft that is compatible with many common hobby RC wheels, such as the Dagu Wild Thumper Wheels. The side of each adapter that mounts to the wheel contains a hole tapped for M4 screws, and the other side of the adapter mounts to a motor shaft with two M3 set screws. This set includes a pair of adapters, two 8 mm M4 screws, four M3 set screws, and one 1.5 mm Allen wrench for use with the set screws.

The adapters are available in the following versions:

• 12 mm Hex Wheel Adapter for 3 mm Shaft (17 mm length)
• 12 mm Hex Wheel Adapter for 4 mm Shaft (17 mm length)
• 12 mm Hex Wheel Adapter for 6 mm Shaft, Extended (35 mm length)

Details for item #2687

12mm Hex Wheel Adapter for 6mm Shaft (extended) on a 37D mm Metal Gearmotor.

This version of the 12 mm hex adapter is 35 mm in length and designed to work with 6 mm diameter output shafts, including round and “D” shafts. It works well with our37D mm metal gearmotors, as shown in the picture above. The wheel shown in the above picture is a hobby RC wheel that works with 12mm hex shafts; we do not currently carry this wheel or any other wheels that are compatible with this adapter.

The diagram below shows the dimensions of this shaft adapter and is also available as a downloadable PDF (112k pdf)

Dimension diagram of the Pololu 12mm Hex Wheel Adapter for 6mm Shaft Extended. Units are mm over [inches].
