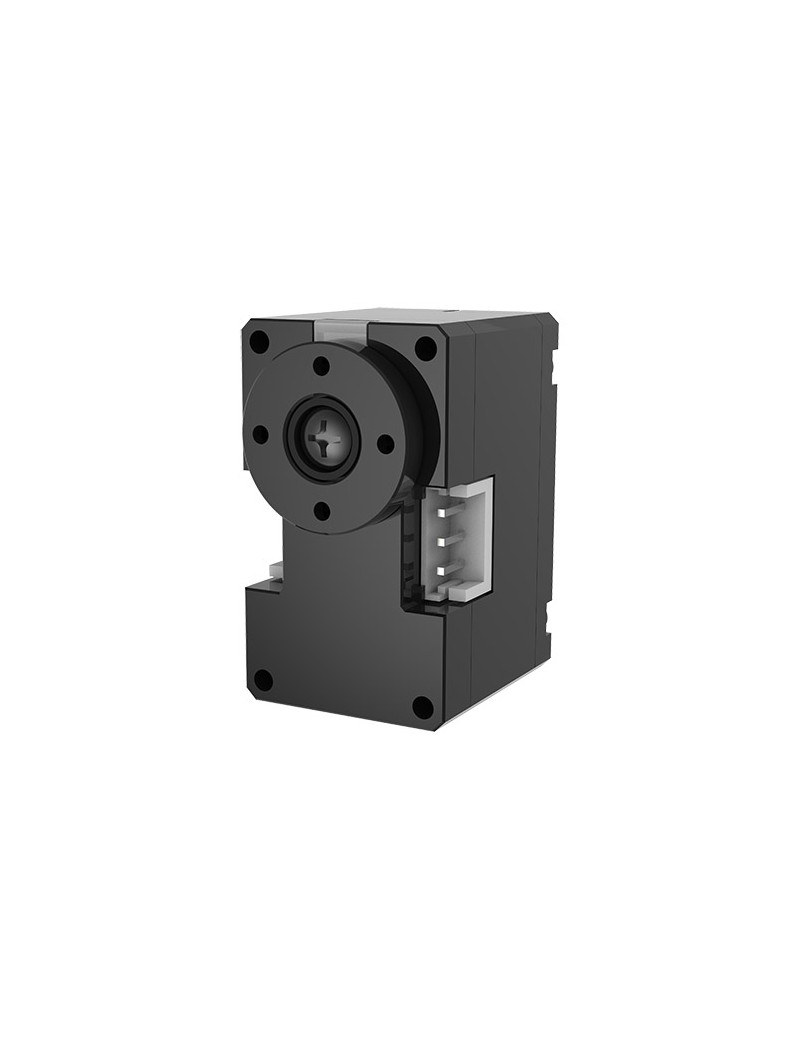

DYNAMIXEL XC330-T288-T
Write your review
128,10 €
Tasse incluse
11.1V / 0.92Nm / 65.00rpm / Coreless / RC Protocol / TTL
Features
The XC330 series is a compact and lightweight DYNAMIXEL.
XC330 series is an upgraded version of XL330 series. It enhanced its durability by applying Metal Gear and Bearing.
1.Various Operating Modes
Velocity Control, Position Control, Extended Position Control, PWM Control, Current Control, Current Based Position Control
2.Profile Control for Smooth Motion Planning
3.Input Voltage : 6.5V ~ 12V ( Recommended 11.1V)
4.Enhanced Durability by applying Metal Gear and Bearing
5.Support RC Protocol without additional converting device
6.Energy Saving with Reduced Current
Package Components
| Item | Quantity | Description |
|---|---|---|
| XC330-T288-T | 1 | DYNAMIXEL |
| Robot Cable-X3P 180mm | 1 | TTL 3p cable(JST - JST) |
| PHS M2x6 TAP | 6 | Bolts for horns |
| PHS M2x8 TAP | 10 | Bolts for frames |
* Please purchase the frames for the X330 models separately.
* The idler and the idler cap are included in the FPX330-H101 4PCS Set. (Not sold as a standalone.)
Compatible Products
Caution
Installation Example
Specification
| Model Name | XC330-T288-T | |
|---|---|---|
| Series | DYNAMIXEL X | |
| MCU | ARM Cortex-M0+ (64 [MHz], 32bit) | |
| Input Voltage | Min. [V] | 6.5 |
| Recommended [V] | 11.1 | |
| Max. [V] | 12.0 | |
| Performance Characteristics | Voltage [V] | 11.1 |
| Stall Torque [N·m] | 0.92 | |
| Stall Current [A] | 0.8 | |
| No Load Speed [rpm] | 65.0 | |
| No Load Current [A] | 0.05 | |
| Continuous Operation | Voltage [V] | - |
| Torque [N·m] | - | |
| Speed [rpm] | - | |
| Current [A] | - | |
| Resolution | Resolution [deg/pulse] | 0.0879000000 |
| Step [pulse/rev] | 4,096 | |
| Angle [degree] | 360 | |
| Position Sensor | Contactless absolute encoder (12Bit, 360 [deg]) Maker : ams(www.ams.com), Part No : AS5601 |
|
| Operating Temperature | Min. [°C] | -5 |
| Max. [°C] | 70 | |
| Motor | Coreless | |
| Baud Rate | Min. [bps] | 9,600 |
| Max. [bps] | 4,000,000 | |
| Control Algorithm | PID | |
| Gear Type | Spur | |
| Gear Material | Metal | |
| Case Material | Engineering Plastic | |
| Dimensions (WⅹHⅹD) [mm] | 20.0 x 34.0 x 26.0 | |
| Dimensions (WⅹHⅹD) [inch] | 0.78 x 1.33 x 1.02 | |
| Weight [g] | 23.00 | |
| Weight [oz] | 0.81 | |
| Gear Ratio | 288.4 : 1 | |
| Backlash [arcmin] | - | |
| Backlash [deg] | - | |
| Command Signal | Digital Packet | |
| Protocol Type | Half duplex Asynchronous Serial Communication (8bit, 1stop, No Parity) | |
| Link (Physical) | TTL Level Multidrop Bus | |
| ID | 0 ~ 252 | |
| Feedback | Position, Velocity, Current, Realtime tick, Trajectory, Temperature, Input Voltage, etc | |
| Protocol version | Protocol 2.0 Experimental S.BUS Experimental iBUS RC-PWM |
|
| Operating Mode / Angle | Current Control mode：Endless turn Velocity Control mode：Endless turn Position Control Mode：360 [deg] Extended Position Control Mode：±256 [rev] Current-based Position Control Mode：±256 [rev] PWM Control Mode：Endless turn |
|
| Output [W] | - | |
| Standby Current [mA] | 17 | |
RBT-902-0171-000
11.1V / 0.92Nm / 65.00rpm / Coreless / RC Protocol / TTL
