Traffic Light 5V LED Display Module Red Green Yellow Light for Arduino Raspberry Pi
Write your review
3,54 €
Tasse incluse
This is a mini-traffic light display module, high brightness, very suitable for the production of traffic light system model.
Description:
This is a mini-traffic light display module, high brightness, very suitable for the production of traffic light system model.
Features:
1>. Small size.
2>. Simple wiring.
3>. Targeted.
4>. Custom installation.
Parameters:
| No. | Parameter | Value |
| 1 | Size | 56*21*11mm |
| 2 | Color | Red, Yellow, Green |
| 3 | LED | 5mm |
| 4 | Brightness | Ordinary brightness |
| 5 | Voltage | 5V |
| 6 | Input | Digital signal output |
| 7 | Interface | Common cathode, red and yellow green control Individually |
| 8 | Operating current | Red 13mA; Yellow 13mA; Green 25mA |
Use Manual:
1>. It just support controller to contorl;
2>. Input High or Low level from controller to make LEDs ON or OFF.
3>. It can be controlled by PWM,too.
Application:
1>. Analog traffic signal system
2>. Teaching demonstration
3>. Indication sign
4>. Light alarm system
Frequency asked questions:
1>. Does it work with 3.3V or 5V?
Q : It can work with 3.3V and 5V.
2>. Is it RGB?
Q : No,Each LED lamp can only emit one color of light.
3>. Can 3 LEDs be illuminated at the same time?
Q : Yes,it can. It can be controlled by yourself.

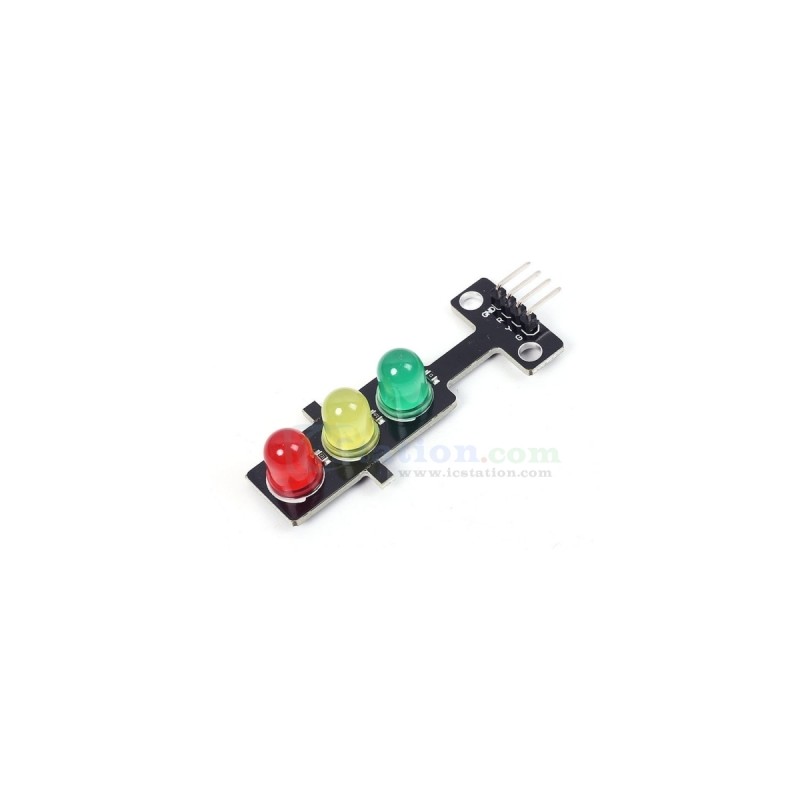

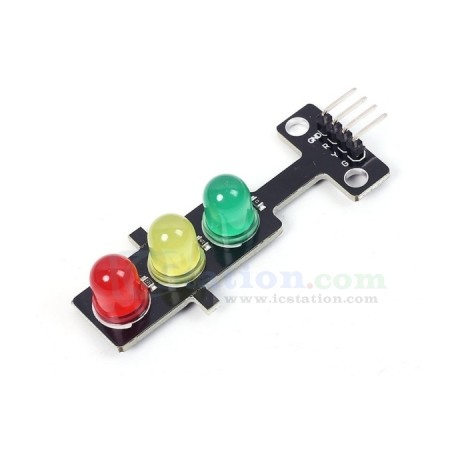

Illustration:
JH-YXC005
This is a mini-traffic light display module, high brightness, very suitable for the production of traffic light system model.
