Product Introduction:

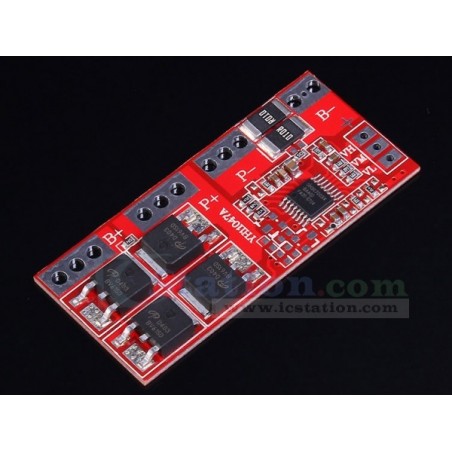

1.Name:4S lithium iron phosphate protection board
2.Overcharging Detection Voltage:3.9+/-0.025V
3.Overcharging Release Voltage:3.8+/-0.05V
4.Overdischarging Detection Voltage:2.30+/-0.08V
5.Overdischarging Release Voltage:2.70+/-0.1V
6.Overcurrent Current:20-30A
7.Operating Current:15A (natural heat dissipation 10A;add heat sink 15A;max instant current 30A)
8.Release Condition:protection condition release auto-recovery,no need to activate
9.Main Functions:overcharge protection;overdischarge protection;short circuit protection;overcurrent protection
10.Operating Temperature:-40~85 celsius
11.Connection Way:soldering output
12.Size:50*22*4mm
