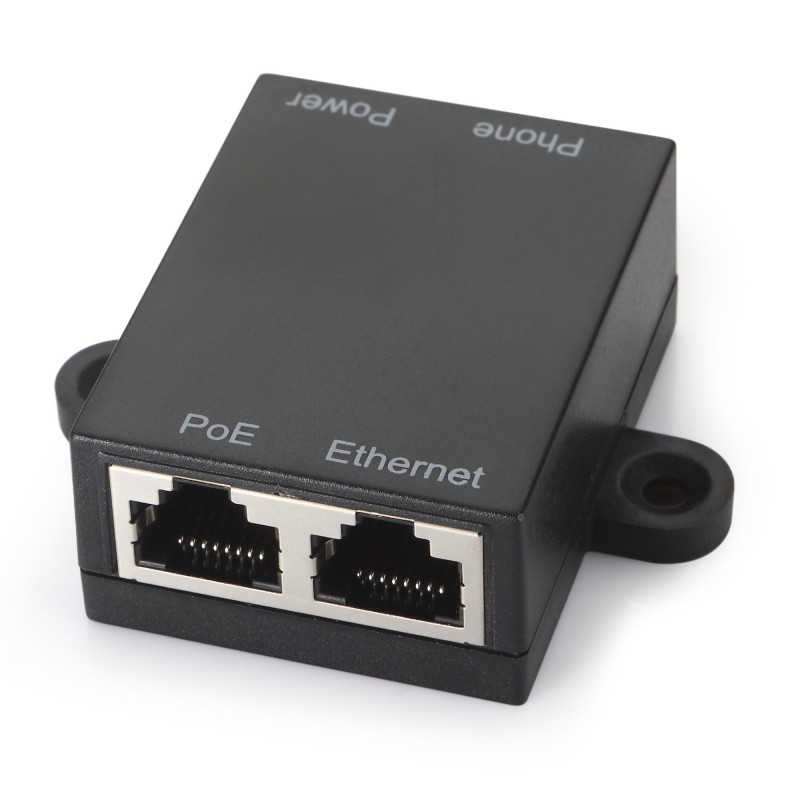

The Dragino PoE Injector can combile 2 singla trace, ethernet trace and Power together into a Rj45 port and can tranfer via a 8 core CAT5 cable.

The PoE injector can combine four Ethernet signals, Power /GND and two extra signal traces into a 8 pins RJ45 connector, User can transfer these signals with a 8 wire CAT-5 cables and split it in the other side.

*   2 x Rj45 ports (RJ45 signals inject to pin 1,2 & 3,6)

*   1 x RJ11 connector for signal trace (Inject to the PoE port pin 4 & 7)

*   1 x DC connector(5.5 x 2.1mm) for power (Inject to the PoE port pin 5 & 8)

*   Wall Mountable
