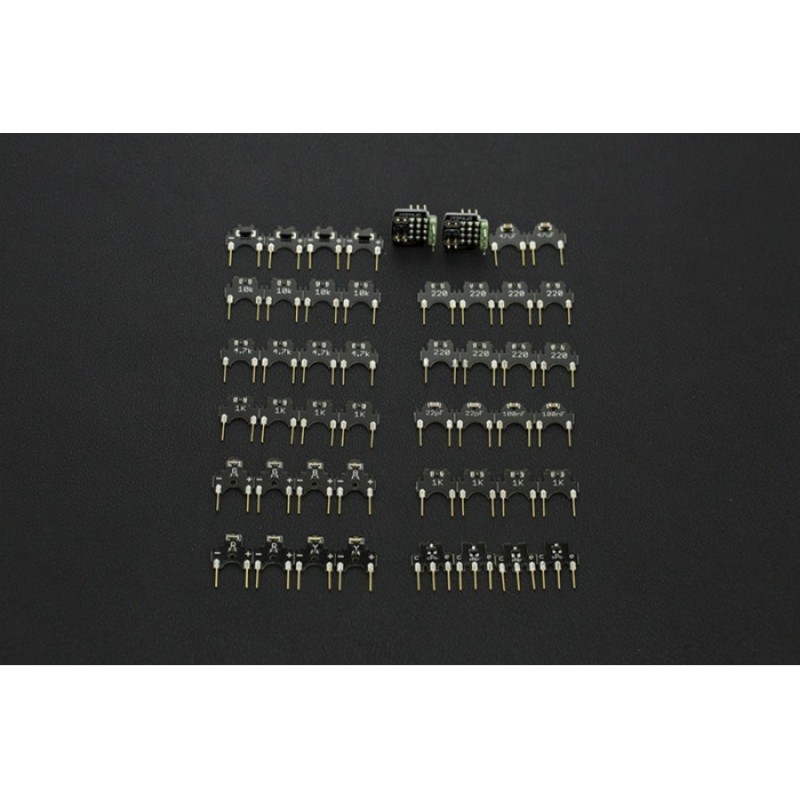

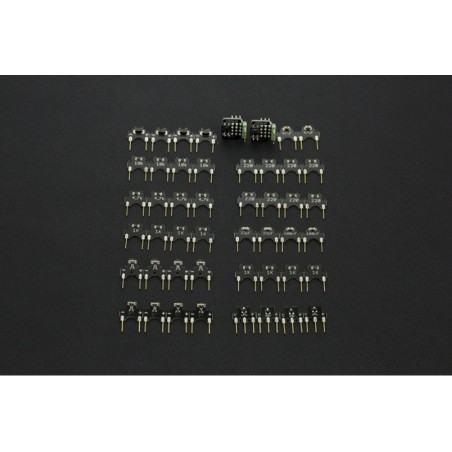

Breadboard-Plugin Components Pack is a new kit designed for breadboard experiment. It provides many kinds of components, such as resistors, capacitors, diodes, transistor .etc. The module pins are using gold-plating technology, solid and durable. It could be plugged on the breadboard directly. easy, reliable and reusable.

• Hard to read the value (Resistor color codes)
• Severe deformations of the pin after used, non-reusable, not environment-friendly
• The pin diameter is too thin or too thick, poor match with the breadboard hole
• Confused the order of transistor “e”, “b”, “c” pins
• Usage problem: Most of sensors and actuators require 3 interfaces: Signal/VCC/GND, you have to use the jumper wire for the connection, messy and unreliable.

FEATURES

• Easy to Recognize : Resistance value, capacitance values, positive/negative polaron and pin functions are marked clearly.
• Easy to Learn : The circuit symbol is clearly visible, directly match the circuit diagram
• Easy to Use : Direct-plug pin
• Easy to Plug/unplug : The 0.64mm diametral pin matches the breadboard hole perfectly
• High-Reliability : ENIG technology, the circuit connection is reliable and durable
• Environment-Friendly : Reusable and Environment-friendly

SPECIFICATION

• Resistor: 220R，1K，4.7K，10K
• Capacitor: 22pF@50V，100nF(0.1uF)@50V，47uF@10V
• LED: Red, Yellow, Blue, Green
• Diode: If=1A, Vfm=0.7V, Vr=40V
• Transistor-NPN: Vceo=45V, Ic=500mA, hFE=400
• Transistor-PNP: Vceo=-45V, Ic=-500mA, hFE=400

DOCUMENTS

• Wiki Doc

SHIPPING LIST

• Resistor 220R x4
• Resistor 1K x4
• Resistor 4.7K x4
• Resistor 10K x4
• Capacitor 22pF x2
• Capacitor 100nF x2
• Capacitor 47uF x2
• LED--R x2
• LED--Y x2
• LED--B x2
• LED--G x2
• Diode x4
• NPN transistor x2
• PNP transistor x2
• Breadboard PluginConnector x2
