1. Resistance (R25 ℃): 100 K Ω
2. Resistance (R25 ℃) allowable deviation: ± 1%
3. B value: 3950k
4. Allowable error of B value: ± 1%
5. Temperature range: - 40 ℃ ~ 250 ℃
6. Dissipation coefficient: ≥ 2MW / ℃ (in still air)
7. Time constant: ≤ 20s (in still air)

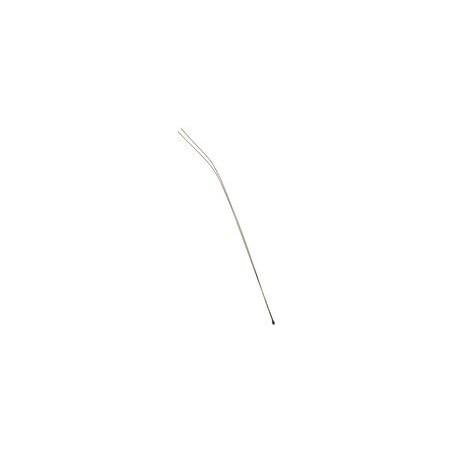

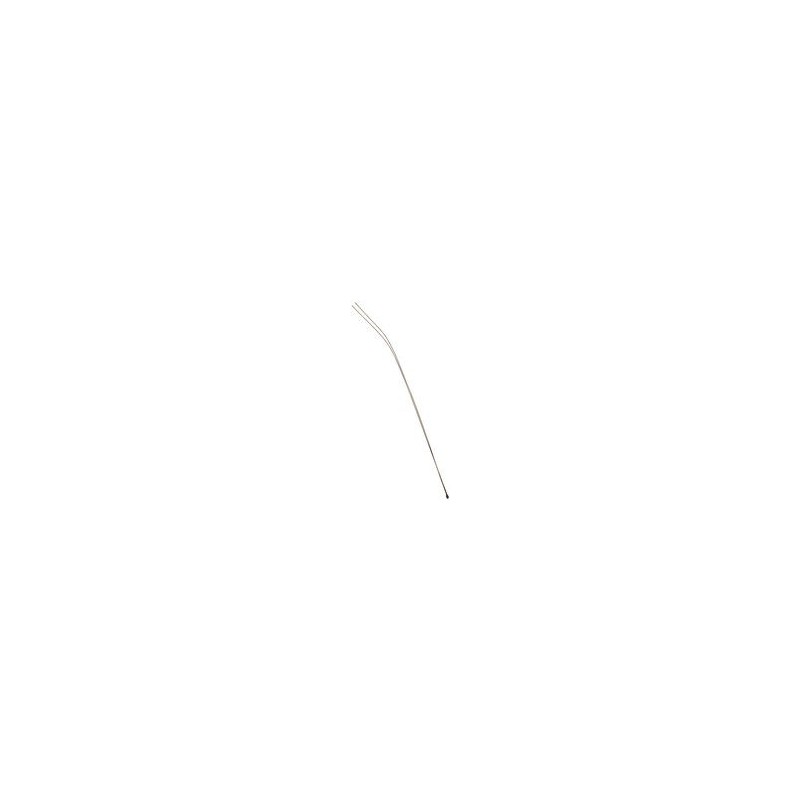

8. Structural package: single lead glass package
9. Overall dimension (as shown in the figure): unit (mm)
Head 1.8mm single end glass seal: Recommended Opening Size φ 2mm
