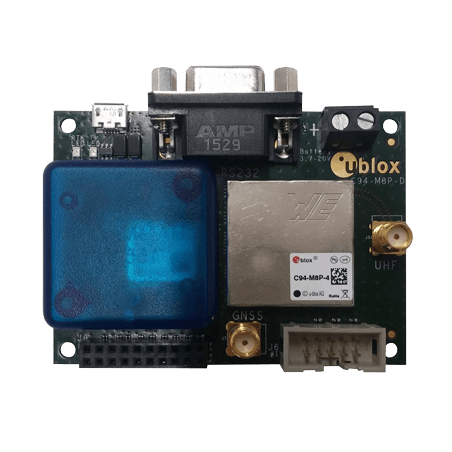

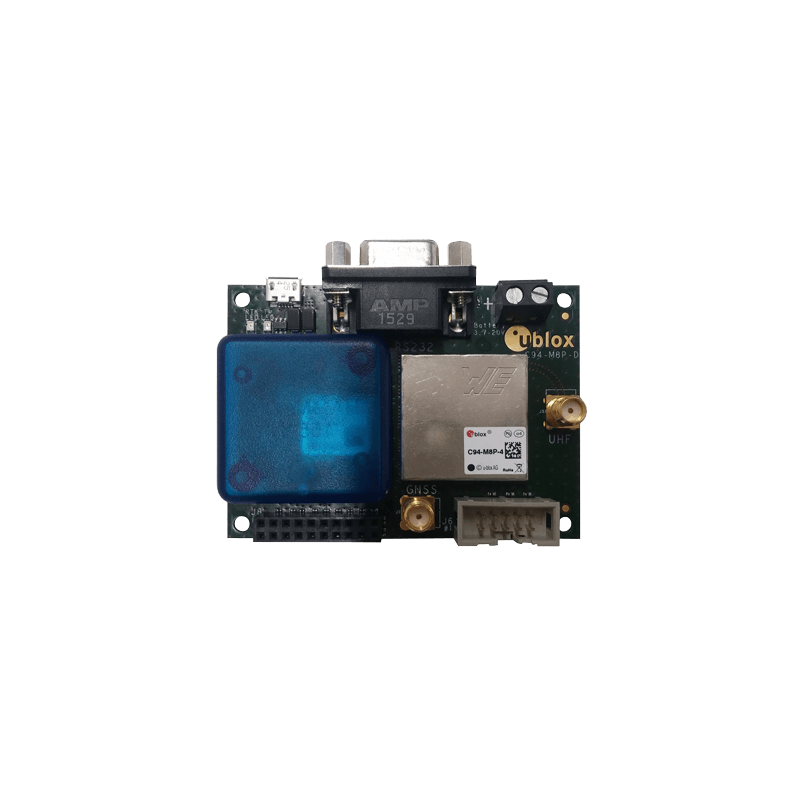

The C94‑M8P application board allows efficient integration and evaluation of NEO‑M8P, u‑blox’s M8 high precision positioning module.
The NEO‑M8P module series introduces the concept of a "Rover" and a "Base Station", bringing RTK technology to u‑blox’s product portfolio. By using a data stream from the base station, the rover can output its relative position with stunning cm‑level accuracy in
clear sky environments.
The C94‑M8P application board integrates NEO‑M8P‑2 module with both base station and rover functionality. The C94‑M8P includes a UHF radio link, allowing for easy setup and fast prototyping. The board also provides connector pins for u‑blox C027 and other application boards, enabling communication alternatives using u‑blox cellular and short‑range technologies.

KIT Includes:

• 2 application boards (both with NEO‑M8P‑2)
• 2 external UHF antennas
• 2 external active GNSS antennas
• 2 antenna ground planes
• 2 micro‑USB cables

FURTHER INFORMATION

• Receiver:  NEO‑M8P‑2 GNSS module with support for both active and passive antennas
• Radio link:  UHF operation in the license free bands. See product variants.

RESOURCES

https://www.u-blox.com/en/product/c94-m8p#tab-documentation-resources
