Build & Test Earthquake Proof Buildings | BOSON Smart Science Projects

This earthquake working mode combines a shake table and earth-proof structures from simple materials and BOSON modules.

The model simulates seismic ground motion during an earthquake. With a rotation sensor, you can change the speed of the motor to generate movement at different frequencies. It will be inspiring to test the effect of short and high-frequency earthquakes on buildings.

A nature earthquake creates motions on 3 axes, but since our shake table is moving along the same direction, it will be easy to measure the acceleration on the X-axis with a micro:bit, to give you an accurate result of how strong the earthquake is. Fix the micro:bit at the top of the building, plug it with your computer, open Mind+, and let the data fly.

Then, we can try different shapes/heights/weights to figure out the best solution to earthquake-proof structures.

Note: Not include materials like micro:bit, Box & Cardboard, Straws, Pipe cleaners, Bottle caps, Bubber bans, Thumbtack, etc.

• Plug-and-play
• Reusable

• STEAM education
• Earthquake working model
• Ground motion simulation
• Study on Earthquake-resistant structures

• Operating Voltage: 4.5V-5.5V
• Dimension: 60 x 220 x 300mm/2.36 x 8.66 x11.8”
• Weight: 300g

• Build & Test Earthquake Proof Buildings

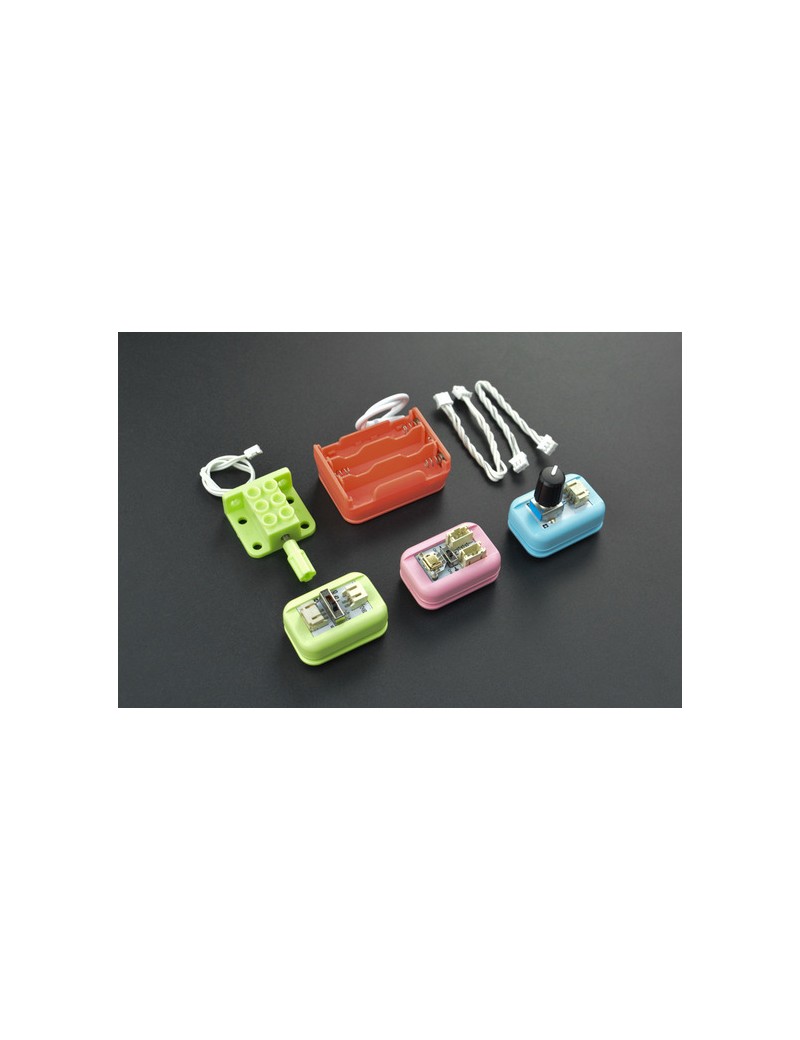

• Mainboard-1 IO x1
• Motor Controller Module x1
• Boson: Rotation Sensor x1
• 3xAAA Battery Holder x1
• Boson: Micro Metal Gear Motor x1
• Cable 10cm x2
• Package Box x1
