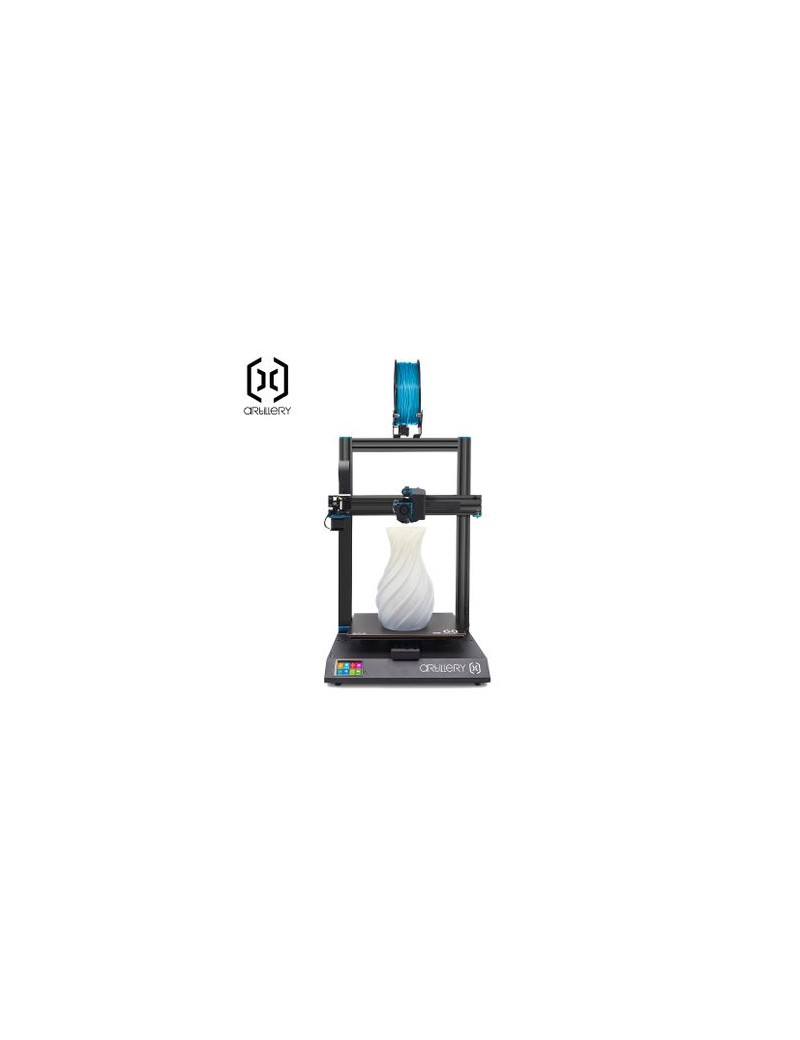

Artillery® Sidewinder X1 SW-X1
Ultra-quiet Stepper Driver
- Synchronized Dual Z System
- Touch Screen Control
- Large Print Size: 300x300x400mm
- Max Print Speed: 150mm/s
- Rapid Heating AC heatbed
- New Lattice glass as 3d printer platform，extremely flat surface, superb adhesion, a breeze to release the printed objects, fast and steady heated curve, tested and durable flat
- High transverse speed
- Power Loss Detection and Recovery
- Filament Runout Detection and Recovery
- 95% pre-assembled, easy for installation
- High accuracy printing quality, down to 50 microns
- Titan style direct-drive extruder to support flexible materials
- SW-X1 V4 Machine comes with reset button
Ultra-quiet Stepper Driver
The stepper motor drivers were developed to reduce the amount of Idle Current through the motor windings to reduce the artifact effects on the objects exterior surfaces. The stepper motor drivers also reduce the 'singing' noises within the stepper motor to reduce the noise produced by the stepper motors.
Synchronized Dual Z System
Dual Z-Axis stepper motors remove one weakness of some 3D printers on the market. If using only one Z-Axis stepper motor the other end of the X-Axis rail is 'following' the driven side. This can have the effect of Z-Axis offset from one side of the X-Axis rail to the other side due to misaligned or dragging axis wheels on the non-driven side of the X-Axis rail support. This manifests itself as uneven Z-Axis printing. The use of two Z-Axis stepper motors removes this weakness since both sides of the X-Axis is supported and actively driven. Using two stepper motors also reduces the amount of 'lift' force required for each side of the X-Axis rail.
Touch Screen Control
The touch screen control panel is a nice touch (no pun intended). The color TFT Touch panel allows control of the 3D printer for performing different functions including selection of objects to print from a SD memory card. A practical suggestion is to buy a micro-SD card and adapter then you can use a second adaptor on your computer to load files into the micro-SD card and transfer the card to the 3D printer to allow printing without tying up your computer for printing.
Large Print Size: 300x300x400mm
The glass-ceramic heated print bed size is roughly 40% larger than a 200X200 print bed. You can print larger objects with this printer than a standard 200X200X300 volume 3D printer. :)
Max Print Speed: 150mm/s
The printing speed determines how quickly an object may be printed. Most 3D printers in this price range print at a maximum accurate speed of 100mm/Sec. This printer can potentially print 3D objects in 2/3rds the time of other printers.
Rapid Heating AC heatbed
One feature of the 3D Printer is the A.C. powered heat-bed. By using the A.C. power instead of the D.C. power supply the bed heats to operating temperatures much faster (higher power due to higher voltage) and reduces the load on the D.C. power supply but at least 1/3rd. A second feature of the heated bed is the construction is of glass-ceramic, which is very smooth and flat. Being flat means you don't need to use auto-leveling as is normally required with aluminum heated and non-heated beds due to non-level effects caused by manufacturing. Once you have leveled the bed manually there is no need to perform bed leveling every print.
High transverse speed
The transverse speed determines how 'fast' the print head can be moved from on print position to the next for multiple item printing. This printer is capable of transversing the print head assembly at a blistering 250mm/Sec.
Power Loss Detection and Recovery
What happens when there is a power failure or power 'glitch' as in a power brown-out?? With most 3D printers, unless you have an UPS to maintain power during such an event (extra cost) you have to start over on the printing of your 3D object. Not so with this 3D printer! It has the ability to recover from a power failure or brown-out and resume where it left off on the print! This is not a function of most 3D printers out there.
Filament Runout Detection and Recovery
How many times have you heard the expression that someone was "air printing"?? What someone is saying is the 3D printer ran out of filament (due to running out of filament breaking) but the printer continued to perform the printing job. This will not happen with the Artillery 3D Printer as it has a filament runout detection sensor standard on the printer! If the sensor detect the filament has reached the end it will halt the printer until the problem is resolved. Once the filament problem is resolved the printer starts printing where it left off so you don't have to start over a long print job! On most other 3D printers in this price range this is not a standard feature!
High accuracy printing quality, down to 50 microns
This 3D printer has an accuracy in the X-Axis and Y-Axis down to 50 microns. The accuracy on the Z-Axis is 100 microns.
|Build Volume||300 x 300 x 400mm / 11.8 x 11.8 x 15.75in|
|Layer resolution||from 0.05mm|
|Maximum print speed||150mm/s|
|Maximum trave speed||250mm/s|
|Heat bed type||Rapid heating AC heat bed|
|Supported filament||PLA, ABS, Flexible PLA, TPU, Wood, PVA, HIPS…|
|Print technology||FFF (Fused Filament Fabrication)|
|Extruder type||Direct Drive Extruder (Titan type)|
|XYZ resolution||0.05mm, 0.05mm, 0.1mm|
|Nozzle temperature||up to 240C|
|Nozzle heat up time||< 3 minutes|
|Noise level||< 60 dBA|
|Power consumption||100V-240V 600W max (with heated bed turned on)|
|Control board||MKS Gen L|
|Stepper driver||Exclusive ultra-quiet stepper driver (256 micro-stepping)|
|Advanced sensors||3 inductive endstop sensors|
|Machine dimensions||550 x 405 x 640mm 550 x 405 x 870mm (w/ spool holder)|
|Shipping box dimensions||780 x 540 x 250mm|
