CreatBot D600 Pro

10.237,70 €
Quantità

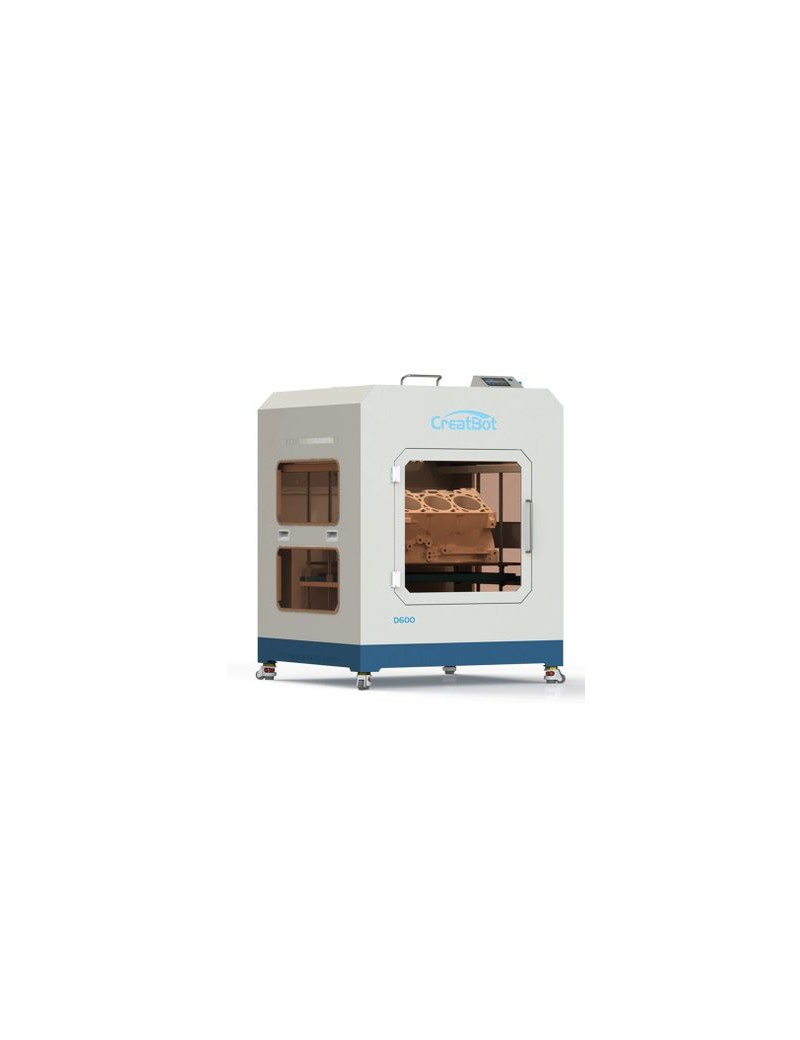

Industrial 3D printer CreatBot D600 Pro – 3D print very large and complex parts and objects

3D print with the CreatBot D600 Pro very large and complex parts and objects. The D600 Pro is an industrial high temperature 3D printer with a very high manufacturing quality and enormously large heated installation space (60x60x60 cm). The all-metal frame always offers you smooth running, precise linear guidance of the extruder and enormous noise reduction. Control the 3D printer comfortably and intuitively via the touch display and rely on reliably good production results thanks to BuildTak adhesives, heated building platform and heated filament drying chamber.

CreatBot D600 Pro improvements over D600

  • 25 control points check the setting of the building platform and level it automatically
  • Precise linear guide rail for stable and smooth running
  • Power failure protection automatically remembers the last position and continues 3D printing
  • Heated building platform made of glass and BuildTak adhesives
  • Easy control via the 4.3-inch touch screen
  • Construction chamber heated to 70 degrees minimizes warping
  • Filament drying chamber for nylon and other hydrophilic filaments

More features of the CreatBot D600 Pro:

  • Manufacturing temperature up to 260°C hotend(left) and 420°C hotend(right)
  • High precision 3D printing – up to 0.05 mm
  • Stable installation space made of steel guarantees reliable results
  • Very large installation space of 600 x 600 x 600 mm
  • Completely enclosed construction chamber for stable temperatures and noise reduction
  • Perfect for additive production with high-performance thermoplastics

Extruder temperature up to 420 °C

CreatBot is among the first to release a 420 °C ultra-high-temperature nozzle for the mass market. Furthermore, CreatBot owns exclusive innovative patents. The high temperature extruder allows you to process a wide range of filaments. The optimized blue cooling fins cool the heat brake reliably and efficiently. This keeps the heat from the hot end away from the extruder unit. You can also fine tune the nozzle height for maximum precession. It is possible to use custom designs for single, double and triple heads.

CreatBot D600 All Metal Head

Allmetalhotend, more durable

420°Csupport more supplies

Nozzle heightadjustable

DirectHeadDriving


High 3D printing precision

The high precision of the 3D prints is made possible by the constant research and development of the extruder feed system. With this system you can achieve high resolutions of up to 0.05 mm. In addition, it enables consistent material extrusion without the dreaded clogging of the nozzle.

Precision up to: 0.05 mm Production speed up to: 200mm/s

CreatBot D600 High Precision Sample

Stability of steel frame

The all-metal steel frame provides high and continuous stability for 3D printing. In addition, it considerably extends the product life cycle of the 3D printer. The optimization and cooperation of the overall structure ensures sustainable and efficient operation. In the meantime, the first series of CreatBot 3D printers has been working continuously and reliably for more than 5 years and more than 8000 hours.

CreatBot D600 All Metal Chassis

Automatic levelling of the building platform – Optimum setting

Control the CreatBot D600 Pro and automatically level its building platform. Over 25 measuring points, the BL sensor measures the distance between the building platform and the extruder unit. It stores the individual distances at the different points of the platform. Based on this information, this 3D printer automatically compensates for any unevenness.

CreatBot D600 Auto leveling platform

Precise linear guide rail

Thanks to the precise linear rail structure you can 3D print models with a very high accuracy. Finish with 4 to 5 times more accuracy additive than ordinary mass market 3D printers. This rugged industrial design delivers superior smoothness and accurate filament feed. Produce large and complex models perfectly and reliably with the CreatBot D600 Pro 3D printer.

CreatBot D600 Linear Guide Rail

Additional innovative feature of the CreatBot D600 Pro

Compared to its predecessor, the CreatBot D600 Pro has many smart and innovative features.

Heated installation space – 70 °C Pro minimize warping

Due to the actively heated installation space, the CreatBot D600 Pro guarantees a constant installation space temperature. Make sure your model doesn't deform during 3D printing – warping is a thing of the past.

CreatBot D600 Filaments Drying Room

3D print these materials on the CreatBot D600 Pro:

  • PLA
  • ABS
  • Carbon Fiber
  • Wood
  • Nylon
  • PC
  • PTEG
  • HIPS
  • PP
  • Flexible
  • TPU
  • PVA and more
PRINTING
Print Technology: Fused Deposition Modeling
Build Volume: 600*600*600mm
Number of Nozzles: Double
Resolution: 0.05mm
Layer Resolution: 0.05mm
Filament Diameter: 1.75mm
Filament Compatibility: PLA, ABS, Carbon Fiber, Wood, Nylon, PC, PTEG, HIPS, PP, Flexible, TPU, PVA, etc.
Nozzle Diameter: 0.4mm (0.3, 0.5, 0.6, 0.8, 1.0mm)
Print File Type: GCO, GCODE

TEMPERATURE
Ambient Operating Temperature: 15-32°C
Max. Nozzle Temperature: 420°C
Max. Bed Temperature: 100°C
Max. Chamber Temperature: 70°C D600 Pro
Filaments Drying Temperature: 45°C / 65°C D600 Pro

SPEED
Best Printing speed: 45mm/s
Max. Printing speed: 120mm/s
Max. traveling speed: 200mm/s

MECHANICAL
Construction: Power-Coated Steel, Aluminum Casting for Motion Components, POM
Build Plate: Tempered glass Panel
Build Plate Leveling: "Factory Leveled, Adjust Manually
Automatic D600 Pro"
Extruder: Geared motor (1:10 rate)
Stepper Motors: 1.8° Step Angle with 1/16 Micro-stepping
X Y Positioning Precision: 5.08 Microns
Z Positioning Precision: 1.25 Microns

ELECTRICAL
Power Requirements: 100-240V, 50-60Hz, 20 Am needed
Max. Power: 4000W D600 Pro
Screen: 4.3" Touch Screen with Multi-language
Control Chip: ATmega 2560
Storage Media: SD Card
Connectivity: USB

SOFTWARE
Software Bundle: CreatWare Multi-language
Supported File Types: STL, OBJ, AMF
Operating Systems: Windows (7,8,10), Mac OS X

SPECIAL FUNCTION
Outage Restored: Sava data when power is off
Filament Detection: Pause printing when filament run out
Automatic Shut-down: Turn off the power automatically when printing is complete

SIZE & WEIGHT
Product Dimensions & Weight: 915*845*1085mm 125Kg
Packing Size & Weight: 1000*1030*1360mm 190Kg (Pallet)
