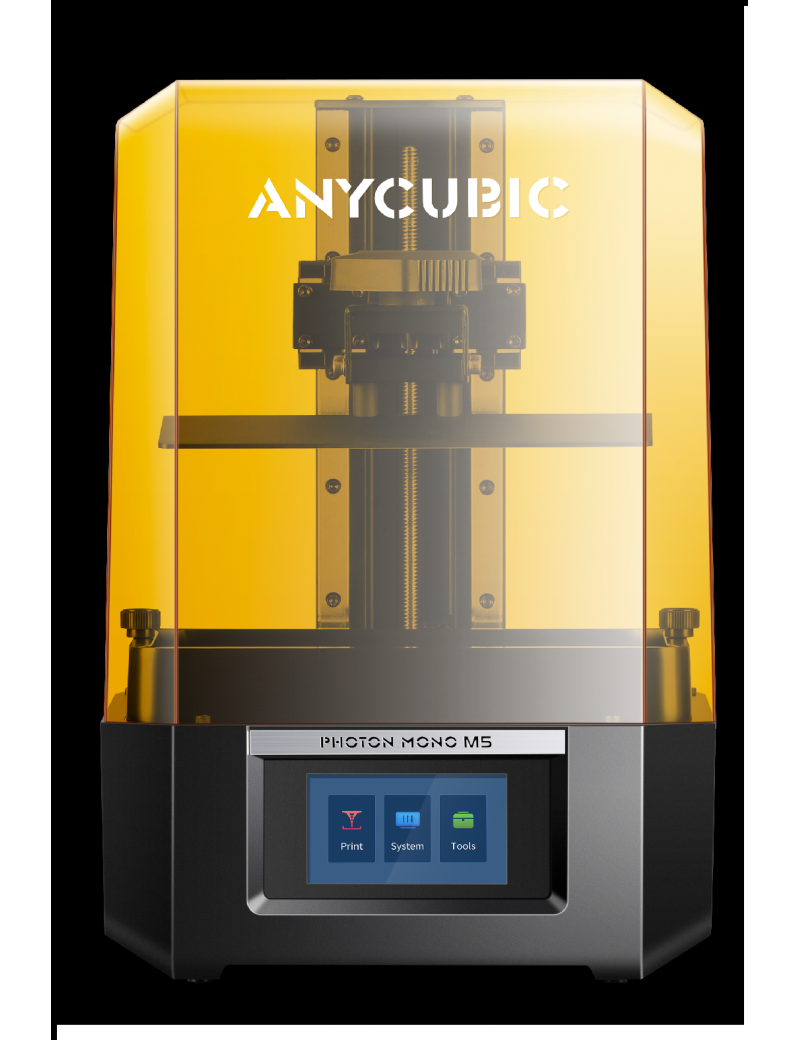

ANYCUBIC PHOTON MONO M5
Photon Mono M5 is the first to feature a 10.1-inch monochrome LCD screen with a resolution of 11520*5120, with a horizontal pixel size of 19 μm, which can offer printing details as precise as a hair thickness.
- Resolution: 11520*5120
- 10.1'' Monochrome LCD Screen
- 19 x 24 XY Pixel Size
- 480:1 Contrast
12K Exquisite Details
Photon Mono M5 is the first to feature a 10.1-inch monochrome LCD screen with a resolution of 11520*5120, with a horizontal pixel size of 19 μm, which can offer printing details as precise as a hair thickness. The contrast ratio is 480:1, making the model's edges clear and well-defined.
Popular sliced models/STLs available for you to experience 3D printing in just one touch. Task viewing ensures your printing process in control.
Upgraded Anycubic Photon Workshop 3.1
Better Slicing Experience: The upgraded free self-developed slicer Anycubic Photon Workshop 3.1 brings you an even better slicing experience in punching, supporting, shelling and layout arranging.Simplified UI makes slicing easier. The new model repairing function also helps boost the printing success rate.
New Support Algorithm: The new support algorithm further improve the printing stability and success rate, reduce the damage on the model surface, and the support and bottom valve are easier to remove. Realize one-click repair of damaged models, comprehensively improve the speed of punching and slicing, and make slicing easier to use.
Professional and Easy To Use
Using the laser-engraving process for the printing platform, allows the build plate to have a better flatness than the sandblasting platforms, which can effectively enhance the adhesion of the model, reduce the situation of the printing model falling off and warping, and greatly improve the printing success rate.
Stable Operation With the Dual Linear Rails
Adopt a high-stability and precision dual linear rails lead screw Z axis, combined with a high-wear-resistant POM clearance nut, to ensure the precise operation of the Z-axis micron-level without shaking, effectively eliminating the layer grain and displaying the beauty of details.
In the Box
|Construction an Technical Details|
|Resin Print Technology||Monochrome LCD screen|
|Resin UV Light Type||LED matrix UV light source|
|Resin Display Type||monochrome LCD|
|Resin Display resolution X||11250 pixel|
|Resin Display resolution Y||5120 pixel|
|Resin Display Resolution||19 µm|
|Recommended Printing Speed Max||50,04 mm/h (|
|Build Area||123 mm x 218 mm x 200 mm|
|Build Plate Leveling System||manual Leveling|
|Installation Space / Requirements|
|Total Mass Overall Dimensions||290 mm x 270 mm x 460 mm|
|Total Weight||8.6 kg|
|Max Power Consumption||100 W|
|Door Lock During Print||Yes|
