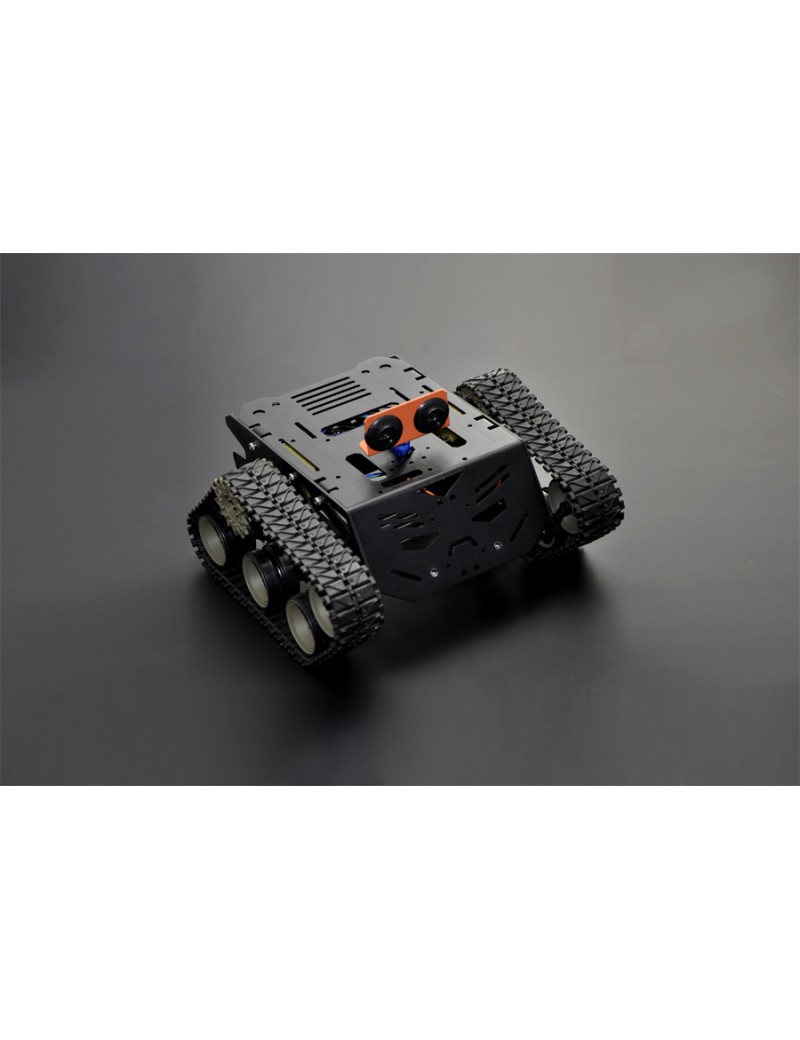

The Devastator tank mobile robot platform is constructed from high strength aluminium alloy and is extremely solid and durable. Due to the popularity of this platform we have released a new and improved version 2 that includes the following features:
New body shape for easy construction and to accommodate more modules
Modular wiring – no soldering iron needed!
Upgraded V1’s plastic motors to durable and robust metal gear motors
Improved speed and torque
Increased load capacity from 1.5kg to 3kg
High performance suspension to navigate the toughest terrains
This robot Kit includes detailed assembly instructions. Click here for a PDF.
This kit is compatible with Intel Edison! Find it on the Intel website Kit includes robust metal gear motors.
Please Note: 1. This product is sold as a kit and will require tools for assembly. Get a Straight/Cross Screwdriver. 2. This product does not include a microcontroller. Suitable microcontrollers can be found on the product wiki page 3. Please be careful when connecting wires to avoid damage to connectors
SPECIFICATION
Rated Voltage: 6 V
Operating Voltage Range 2~7.5V
Gear reduction ratio: 45:1
D output shaft diameter: 4 mm
No-load speed: 133 RPM @ 6 v
No-load current: 0.13 A
Locked-rotor torque: 4.5 kg.cm
Locked-rotor current: 2.3 A
Load Capacity:3kg
Assembled Dimensions (L x W x H): 225 x 220 x 108 mm/ 8.86 x 8.66 x 4.25 inches
Introduction: The idea is that the robot listens to the different frequencies of whatever song is played and moves based on whatever notes it hears, so it'll dance differently for any given song.
