Datasheet

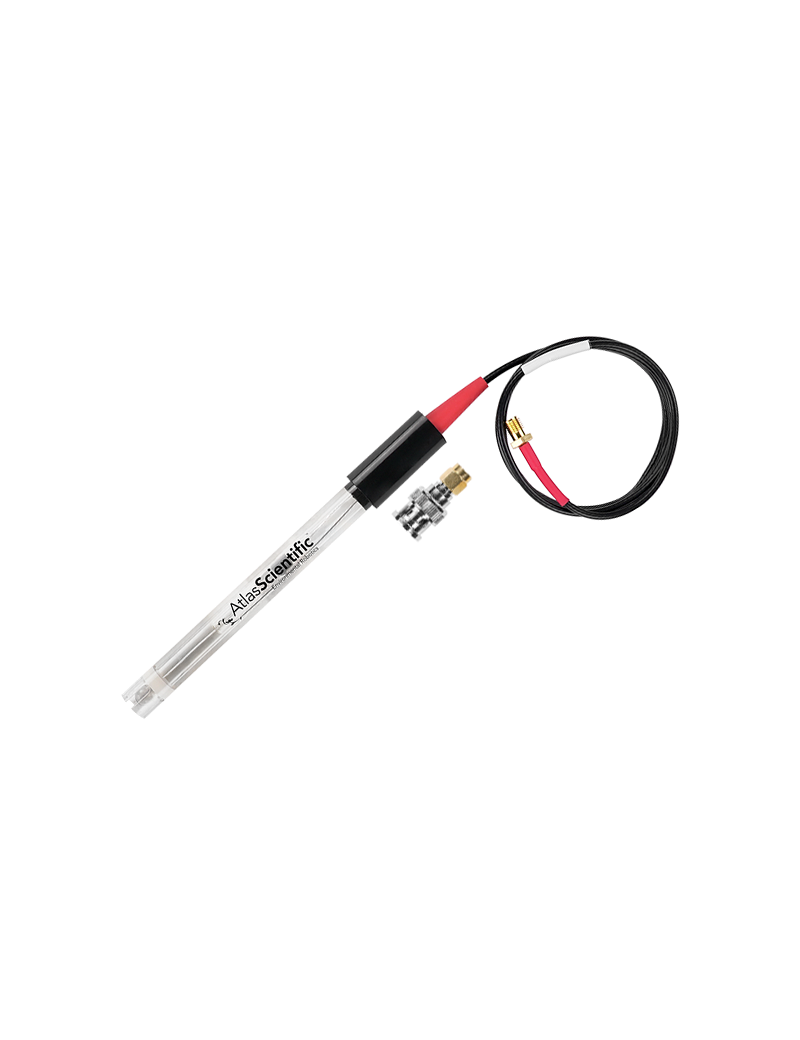

This pH Probe can be fully submerged in fresh water or salt water, up to the SMA connector indefinitely.

Double junction
silver / silver chloride
Reads                                                           pH
Range                                                           2 − 13
Resolution                                                   +/- 0.1
Accuracy                                                     +/- 0.1
Response time                                            95% in 4s
Temperature range °C                              1 − 80 °C
Max pressure                                              80 PSI
Max depth                                                    45m (148 ft)
Connector                                                   Female SMA / Male BNC
Cable length                                                1 meter
Internal temperature sensor                    No
Time before recalibration                         ~1 Year
Life expectancy                                          ~1.5 Years

Included with pH probe
1x SMA to BNC adapter
