Orbbec Astra S

364,78 €
Tasse incluse

Orbbec Astra Pro

Quantità
Add to Compare
Add to Wishlist

Product Description

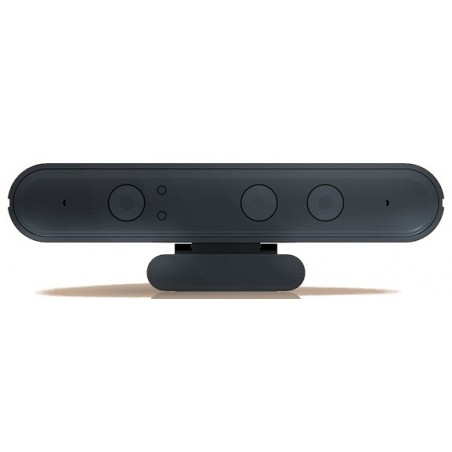

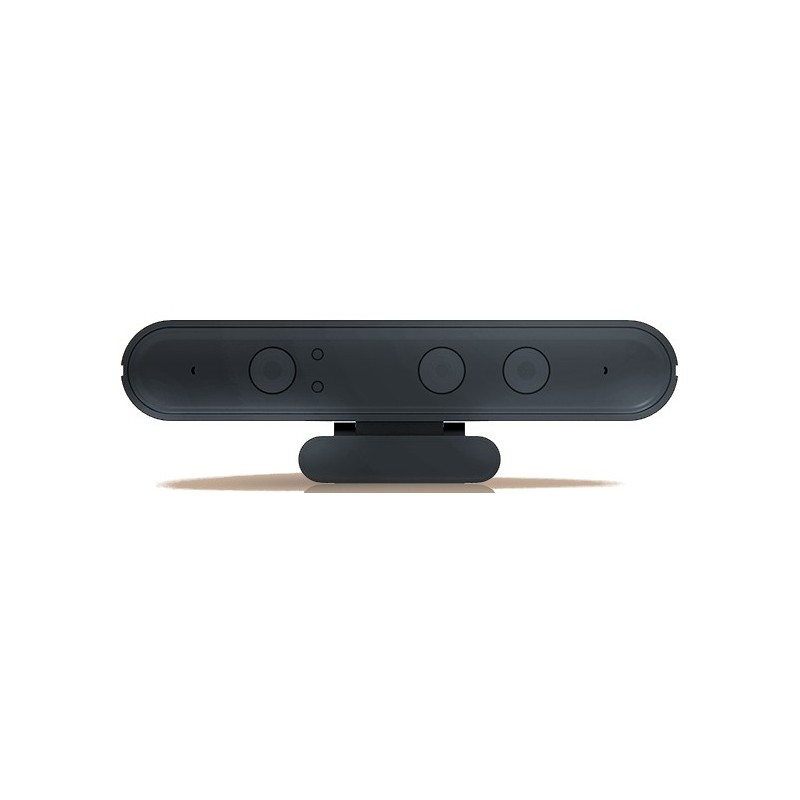

Orbbec Astra S shares the same appearance, size, and weight as Orbbec Astra. The difference is that Astra S is optimized for short-range use cases, which makes it great for 3D scanning, face recognition, and other short range interactive systems. Like the Astra 3D camera, Astra S was developed to be highly compatible with existing OpenNI applications—making both the Astra and Astra S ideal cameras for pre-existing apps that were built with OpenNI.

Astra S now comes in a bundle with the powerful gestural Interaction SDK by Gestoos. Gestoos let’s you develop and enhance applications with gestural interaction in C++, Java and Processing.

Shipping & Delivery

Astra S will be shipped within five business days.
Product Dimensions: 165 x 30 x 40 mm (without packaging)
Shipping Weight: 0.8 pounds (without packaging)

Technical Specs:

Optimized Range: 0.4 - 2m
Depth Resolution: SXGA(1280 x 1024 @ 5 FPS Windows Only)|VGA(640 x 480 @ 30 FPS)|QVGA(320 x 240 @ 30 FPS)
RGB Resolution: HD(1280 x 960 @ 7 FPS)|VGA(640 x 480 @ 30 FPS)|QVGA(320 x 240 @ 30 FPS)
Power: < 2.4 W (USB 2.0)
Data Transfer: USB 2.0
Operation Temperature: 0 - 40°C

Orbbec Products Selection Guide

Note: The purpose of this guide is to give our valuable customers some hints in selecting our sensors. You are NOT necessarily strictly follow this guide.

Features:

  • General purpose 3D camera;
  • Longer sensing range;
  • Alternative for Xtion/Kinect/Carmine 1.08
  • Fully compatible with OpenNI

Recommended Applications:

  • Interactive Systems;
  • Gaming;
  • Retail (people counting/shelf analysis);
  • Robotics (room navigation);
  • 3D Scanning (room size);
  • VR/AR (Object tracking);

Features:

  • Initially designed for short range 3D scanning;
  • Shorter sensing range;
  • Low IR gain mode - shorter range (See Download tab for tools);
  • High IR gain mode - longer range (See Download tab for tools);
  • SXGA Depth mode - 1280 x 1024 depth map at 5 FPS (See Download tab for tools; Windows only; No interpolation)
  • Alternative for Carmine 1.09 and other OpenNI compatible 3D scanner;
  • Fully compatible with OpenNI

Recommended Applications:

  • 3D Scanning (object/body scanning);
  • Robotics;
  • Short Range Interactive Systems;

Features:

  • Same depth performance as Astra;
  • Equipped with an UVC RGB camera that can stream 720P RGB at 30 FPS;
  • UVC camera can be operated via any program designed for webcams;
  • Only Depth compatible with OpenNI; RGB can be streamed without SDK; (See Download tab for sample code)

Recommended Applications:

  • Similar to Astra;
  • Applications need to show high quality RGB video stream;

Features:

  • Same depth performance as Astra S;
  • Equipped with an UVC RGB camera that can stream 720P RGB at 30 FPS;
  • UVC camera can be operated via any program designed for webcams;
  • Only Depth compatible with OpenNI; RGB can be streamed without SDK; (See Download tab for sample code)

Recommended Applications:

  • Similar to Astra S;
  • Applications need to show high quality RGB video stream;

Technical Specs:

Optimized Range: 0.6 - 8.0m (Optimized Range: 0.6 - 5.0m)
Depth Resolution: VGA(640 x 480 @ 30 FPS)|QVGA(320 x 240 @ 30 FPS)
RGB Resolution: HD(1280 x 720 @ 30 FPS)|VGA(640 x 480 @ 30 FPS)|QVGA(320 x 240 @ 30 FPS)
Power: < 2.4 W (USB 2.0)
Data Transfer: USB 2.0
Operation Temperature: 0 - 40°C



DOWNLOADS
https://3dclub.orbbec3d.com/t/download-thread/622

ORB-AstraS2015R2
