Orbbec Astra Pro
Write your review
364,78 €
Tasse incluse
Orbbec Astra Pro
Product Description

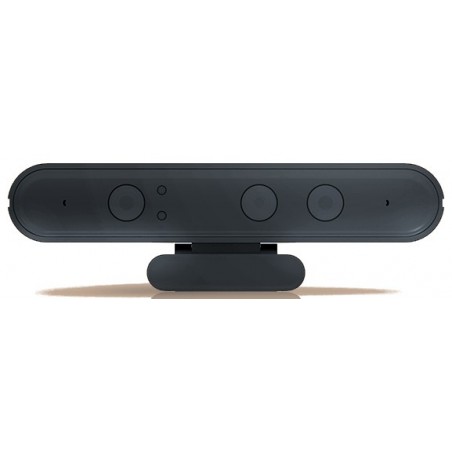

Orbbec Astra Pro shares the same appearance, size, and weight as Orbbec Astra and Orbbec Astra S. The difference is that Astra Pro is optimized for applications that require high RGB stream quality. Astra Pro is world first 3D sensor that can stream 30 FPS HD RGB stream and VGA depth at the same time through USB 2.0.
Astra Pro now comes in a bundle with the powerful gestural Interaction SDK by Gestoos. Gestoos let’s you develop and enhance applications with gestural interaction in C++, Java and Processing.
Orbbec Products Selection Guide
Note: The purpose of this guide is to give our valuable customers some hints in selecting our sensors. You are NOT necessarily strictly follow this guide.
Features:
- General purpose 3D camera;
- Longer sensing range;
- Alternative for Xtion/Kinect/Carmine 1.08
- Fully compatible with OpenNI
Recommended Applications:
- Interactive Systems;
- Gaming;
- Retail (people counting/shelf analysis);
- Robotics (room navigation);
- 3D Scanning (room size);
- VR/AR (Object tracking);
Features:
- Initially designed for short range 3D scanning;
- Shorter sensing range;
- Low IR gain mode - shorter range (See Download tab for tools);
- High IR gain mode - longer range (See Download tab for tools);
- SXGA Depth mode - 1280 x 1024 depth map at 5 FPS (See Download tab for tools; Windows only; No interpolation)
- Alternative for Carmine 1.09 and other OpenNI compatible 3D scanner;
- Fully compatible with OpenNI
Recommended Applications:
- 3D Scanning (object/body scanning);
- Robotics;
- Short Range Interactive Systems;
Features:
- Same depth performance as Astra;
- Equipped with an UVC RGB camera that can stream 720P RGB at 30 FPS;
- UVC camera can be operated via any program designed for webcams;
- Only Depth compatible with OpenNI; RGB can be streamed without SDK; (See Download tab for sample code)
Recommended Applications:
- Similar to Astra;
- Applications need to show high quality RGB video stream;
Features:
- Same depth performance as Astra S;
- Equipped with an UVC RGB camera that can stream 720P RGB at 30 FPS;
- UVC camera can be operated via any program designed for webcams;
- Only Depth compatible with OpenNI; RGB can be streamed without SDK; (See Download tab for sample code)
Recommended Applications:
- Similar to Astra S;
- Applications need to show high quality RGB video stream;
Technical Specs:
Optimized Range: 0.6 - 8.0m (Optimized Range: 0.6 - 5.0m)
Depth Resolution: VGA(640 x 480 @ 30 FPS)|QVGA(320 x 240 @ 30 FPS)
RGB Resolution: HD(1280 x 720 @ 30 FPS)|VGA(640 x 480 @ 30 FPS)|QVGA(320 x 240 @ 30 FPS)
Power: < 2.4 W (USB 2.0)
Data Transfer: USB 2.0
Operation Temperature: 0 - 40°C
ORB-AstraPro2018R3
Orbbec Astra Pro
