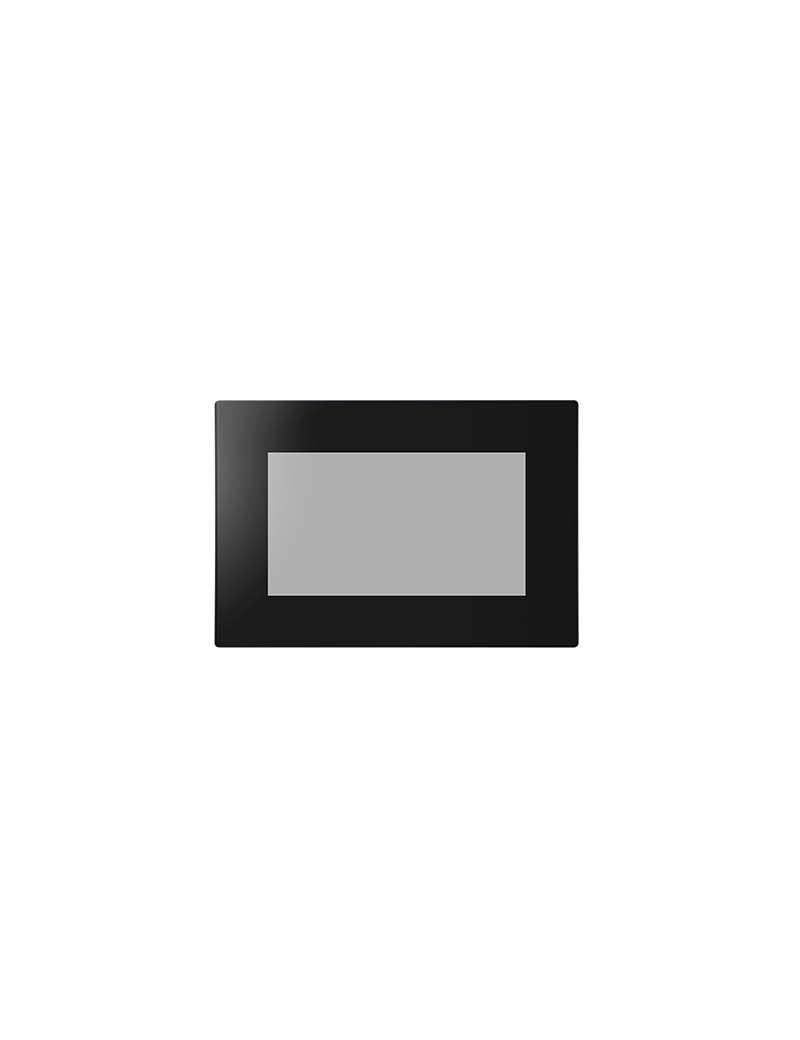

NEXTION NX8048P070-011C-Y - 7.0‘’ Intelligent Series USART HMI Capacitive Touch Display with Enclosure
Write your review
150,06 €
Tasse incluse
DATASHEET: https://nextion.tech/datasheets/nx8048p050-011c-y/
Overview
Nextion is a Human Machine Interface （HMI） solution combining an onboard processor and memory touch display with Nextion Editor software for HMI GUI project development. Using the NEXTION Editor software, you can quickly develop the HMI GUI by drag-and-drop components (graphics, text, button, slider etc.) and ASCII text based instructions for coding how components interact at display side. Nextion HMI display connects to peripheral MCU via TTL Serial (5V, TX, RX ,GND) to provide event notifications that peripheral MCU can act on, the peripheral MCU can easily update progress and status back to Nextion display utilizing simple ASCII text based instructions.
The Intelligent Series products have more powerful hardware in terms of MCU, Flash storage and SRAM compared with Basic Series and Enhanced Series. What’s more and new? The audio, video and animation play functions enriches user’s project HMI interaction. The Intelligent Series supports advanced software features and functions such as transparent component, page loading effect, component Move and Drag .etc.
You can develop the HMI GUI project via the free latest Nextion Editor software ver 0.58 or above, the easy Drag-and-Drop components and simple ASCII text based instructions will dramatically reduce your HMI project development workloads.
Software Features
Hardware Features
-
- NX8048P070-011C-Y(7.0'' IPS RGB 65K capacitive touchscreen)
- - Onboard MCU 200MHz and up to 128MB for HMI project
- - Built-in RTC，EEPROM, 8 digital GPIOs (2 PWM capable)
- - 4 pins (+5V, TX, RX, GND) TTL serial interface
- - 300 nit Brightness with 1% interval adjustment
- - Audio interface
- - CE and RoHS Compliant
- - Model: NX8048P070-011C-Y(HMI Capacitive Touch Display)
In The Box
-
- NX8048P070-011C-Y HMI Display*1
- - XH2.54 4P Wire*1
- - Power Supply Test Board*1
- - Mounting buckle & srew*4
NX8048P070-011C-Y Certification and Documents
- - Dimension
- - Instruction Set
- - Editor Guide
- - LTA Announcement
- - CE Certification
- - ROHS Certification
NX8048P070-011R-Y Certification and Documents
- - Dimension
- - Instruction Set
- - Editor Guide
- - LTA Announcement
- - CE Certification
- - ROHS Certification
Nextion Technical Support
Additional information
| Brand |
Nextion |
|---|---|
| Model |
NX8048P070 |
| Display Size |
7.0″ |
| Resolution |
800*480 |
| Touch Panel |
RTP/CTP |
| MCU |
200 MHz |
| Flash |
128 MB |
| SRAM |
512KB |
| EEPROM |
1024 Byte |
| GPIOs |
8, IO0-IO7 support input, output and component binding event, IO6-IO7 support PWM |
| RTC |
Yes (CR1220) |
| Input Power |
DC 5V 1A |
| USART Port |
XH2.54 4P |
| Storage Temperature |
-30 ~ 85 °C |
| Working Temperature |
-20 ~ 70 °C |
| Nextion Editor Components |
Text, Scrolling Text, Number, Xfloat, Button, Progress Bar, Picture, Crop, Hotspot, TouchCap, Gauge, Waveform, Slider, Timer, Variable, Dual-state Button, Checkbox, Radio, QRcode, Switch, ComboBox, TestSelect, SLText, DataRecord, FileStream, Gmov, Video, Audio, ExPicture |
| Component Opaqueness |
Yes |
| Loading Effect |
Yes |
| Animation |
Yes |
| Video |
Yes |
| Audio |
Yes |
| Character Encoding |
ascii, utf-8, iso-8859-1~15, gb2312, ks_c_5601-1987, big5, windows-874/1255/1256/1257/1258, koi8-r, shift-jis |
| Anti-aliasing font |
Yes |
| Product Dimensions |
https://cdn.nextion.tech/wp-content/uploads/2019/07/NX8048P070-011C-Y-Dimension.pdf |
