INTRODUCTION

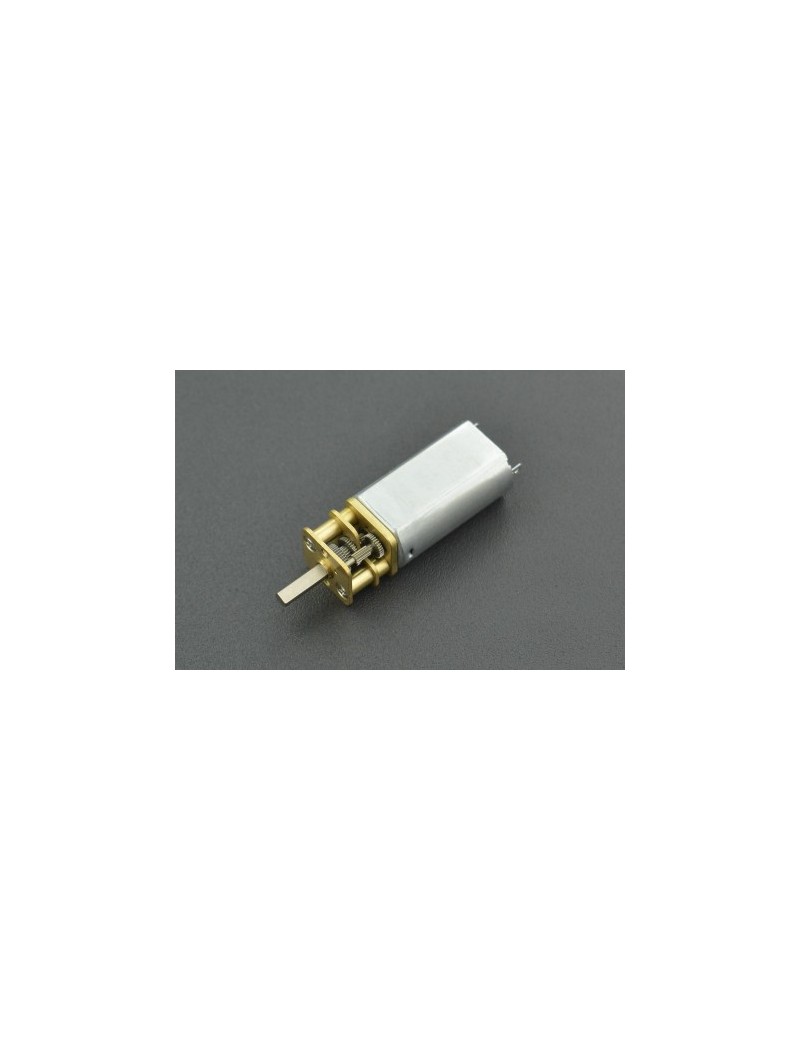

This is a mini DC motor with a 1:35 reduction box. It has small size and takes up very little space. It uses metal gears which is durable. The D-shape shaft facilitates the installation of motor. The no-load speed is 375rpm and the noise is low.

SPECIFICATION

Voltage: 6V Direction of rotation: two-way Reduction ratio: 1:35 No-load current: less than or equal to 90mA No-load speed: 375rpm Load torque: 91g.cm Load speed: 160rpm Load current: less than or equal to 200 Stall torque: 0.5kg.cm Stall current: 950mA Shaft length: 10mm Shaft diameter: 3mm D-shaped shaft Weight: 25g Size: 12*13-R15.5*38mm (without motor output shaft)
