19:1 Metal Gearmotor 37Dx52L mm
19,51 €

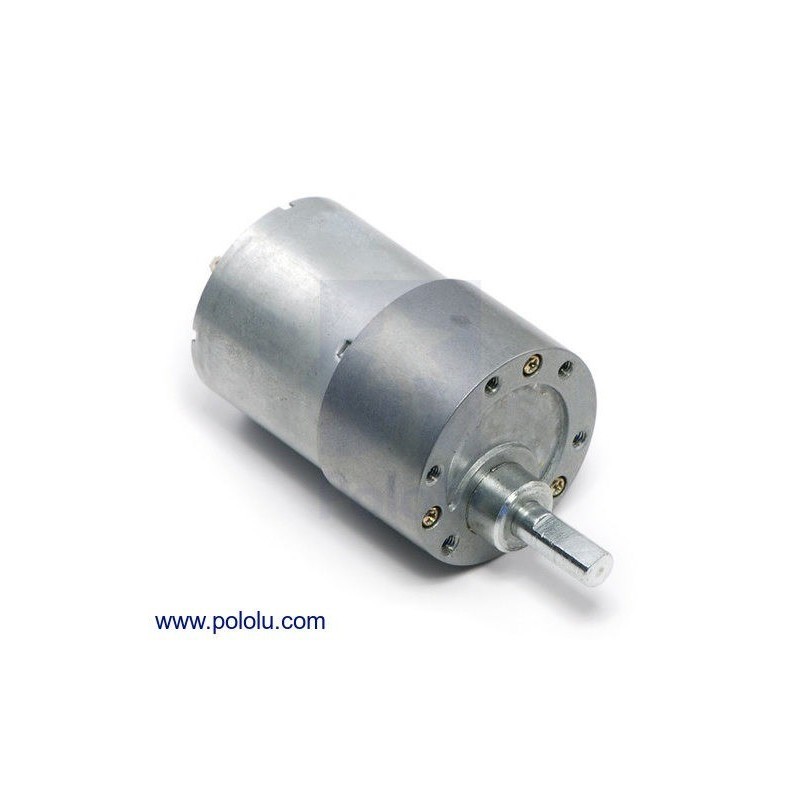

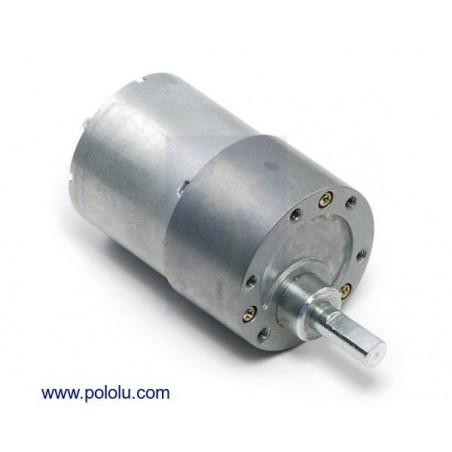

19:1 Metal Gearmotor 37Dx52L mm
This gearmotor is a powerful brushed DC motor with 18.75:1 metal gearbox intended for operation at 12 V. These units have a 0.61"-long, 6 mm-diameter D-shaped output shaft. This gearmotor is also available with an integrated encoder.
Key specs at 12 V: 500 RPM and 300 mA free-run, 84 oz-in (5 kg-cm) and 5 A stall.
Dimensions
| Size: | 37D x 52L mm |
|---|---|
| Weight: | 190 g |
| Shaft diameter: | 6 mm |
General specifications
| Gear ratio: | 19:1 |
|---|---|
| Free-run speed @ 6V: | 256 rpm1 |
| Free-run current @ 6V: | 250 mA1 |
| Stall current @ 6V: | 2500 mA1 |
| Stall torque @ 6V: | 42 oz·in1 |
| Free-run speed @ 12V: | 500 rpm |
| Free-run current @ 12V: | 300 mA |
| Stall current @ 12V: | 5000 mA |
| Stall torque @ 12V: | 84 oz·in |
PO-1102
Riferimenti Specifici
19:1 Metal Gearmotor 37Dx52L mm
