172:1 Metal Gearmotor Encoder
172:1 Metal Gearmotor 25Dx56L mm LP 12V with 48 CPR Encoder

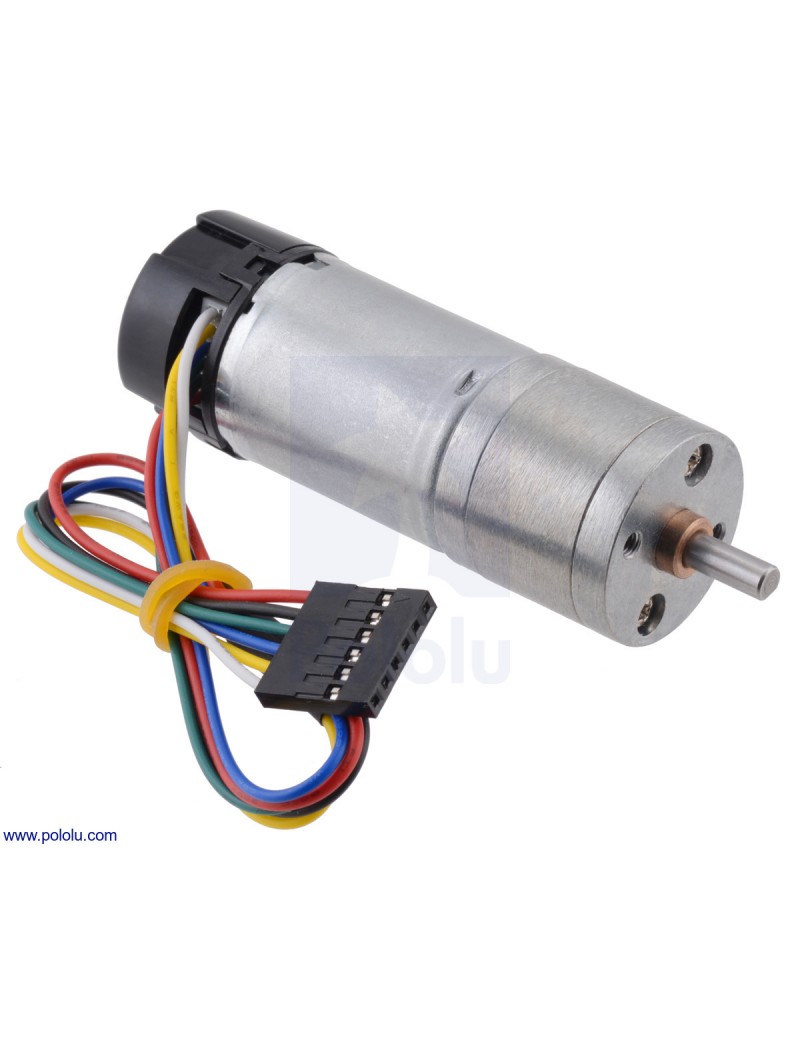

This gearmotor consists of a low-power, 12 V brushed DC motor combined with a 171.79:1 metal spur gearbox, and it has an integrated 48 CPR quadrature encoder on the motor shaft, which provides 8245.92 counts per revolution of the gearbox’s output shaft. The gearmotor is cylindrical, with a diameter just under 25 mm, and the D-shaped output shaft is 4 mm in diameter and extends 12.5 mm from the face plate of the gearbox.
Key specs at 12 V: 31 RPM and 100 mA free-run, 180 oz-in (13 kg-cm) and 1.1 A stall.
These cylindrical brushed DC gearmotors are available in a wide range of gear ratios and with five different motors (two power levels of 6 V motors and three power levels of 12 V motors). The gearmotors all have the same 25 mm diameter case and 4 mm diameter gearbox output shaft, so it is generally easy to swap one version for another if your design requirements change (though the length of the gearbox tends to increase with the gear ratio). The motor and encoder portion is available by itself (no gearbox) for each combination of power level and nominal operating voltage, and versions without the encoder are also available. Please see the 25D metal gearmotor comparison table for detailed specifications of all our 25D metal gearmotors. This dynamically-sortable table can help you find the gearmotor that offers the best blend of speed, torque, and current-draw for your particular application.
|Size:||25D x 71L mm1|
|Shaft diameter:||4 mm|
|No-load speed @ 12V:||31 rpm|
|No-load current @ 12V:||100 mA|
|Stall current @ 12V:||1100 mA|
|Stall torque @ 12V:||180 oz·in|
|No-load speed @ 6V:||15 rpm2|
|Stall current @ 6V:||550 mA2|
|Stall torque @ 6V:||90 oz·in2|
|Motor type:||1.1A stall @ 12V (LP 12V)|
|Lead length:||8 in3|
- Length measurement is from gearbox face plate to back of encoder cap (it does not include the output shaft). See dimension diagram for details.
- This motor will run at 6 V but is intended for operation at 12 V.
- May vary by a few inches.
voltage no-load performance stall extrapolation 12 V 31 RPM, 100 mA 13 kg⋅cm (180 oz⋅in), 1.1 A
