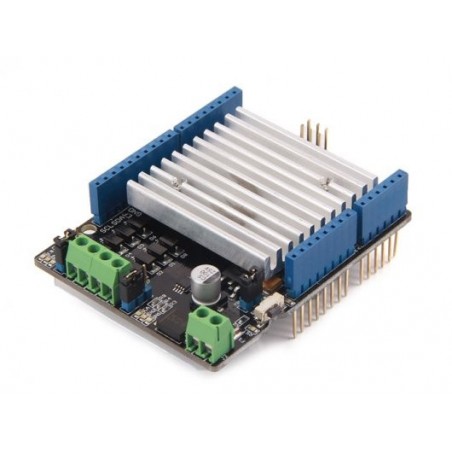

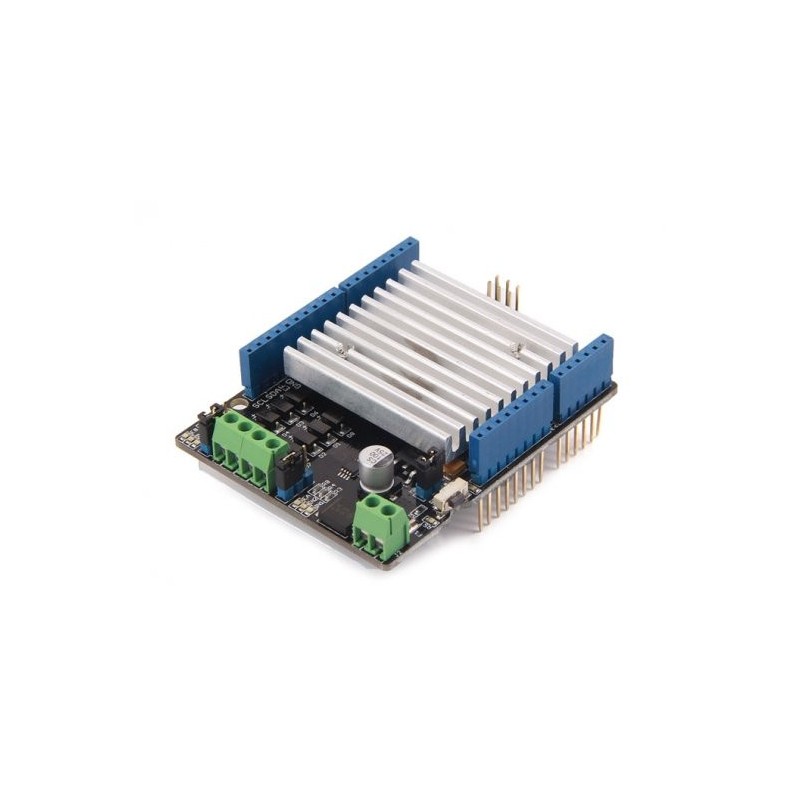

Motor Shield V2.0

17,16 €

Motor Shield V2.0

Quantità

The Motor Shield is a driver module for motors that allows you to use Arduino to control the working speed and direction of the motor. Based on the Dual Full-Bridge Drive Chip L298, it is able to drive two DC motors or a step motor. The Motor Shield can either be powered directly by Arduino or by an external 5V~15V power supply via the DC jack. This module can be used for the development of micro robots and intelligent vehicles, etc.

Features

  • Arduino/Seeeduino compatible

  • Standardized shape design

  • LED enable indicator

  • LED rotation direction indicator

  • Overcurrent turn-off

  • Built around the dual full-bridge drive chip L298

  • Overcurrent protection



Technical Details

Dimensions 100mm x 65mm x 30mm
Weight G.W 62g
Battery Exclude

Part List

Motor Shield V2.0 1

ECCN/HTS

ECCN EAR99
HSCODE 8503001000

Learn

  • [Wiki] Motor Shield V2.0

    Wiki of Motor Shield V2.0

  • Seeed 2.0 Motor Shield Individual Control

    What I am posting came about as an investigation into how to control motors individually with the Seeedstudio 2.0 motor shield after seeing a question on the forums asking how to do so. I originally thought I was going to have to do something fancy to

SE-105030001
