4A Motor Shield
Write your review
50,00 €

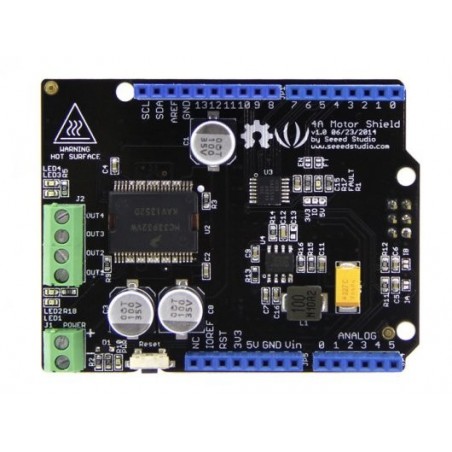

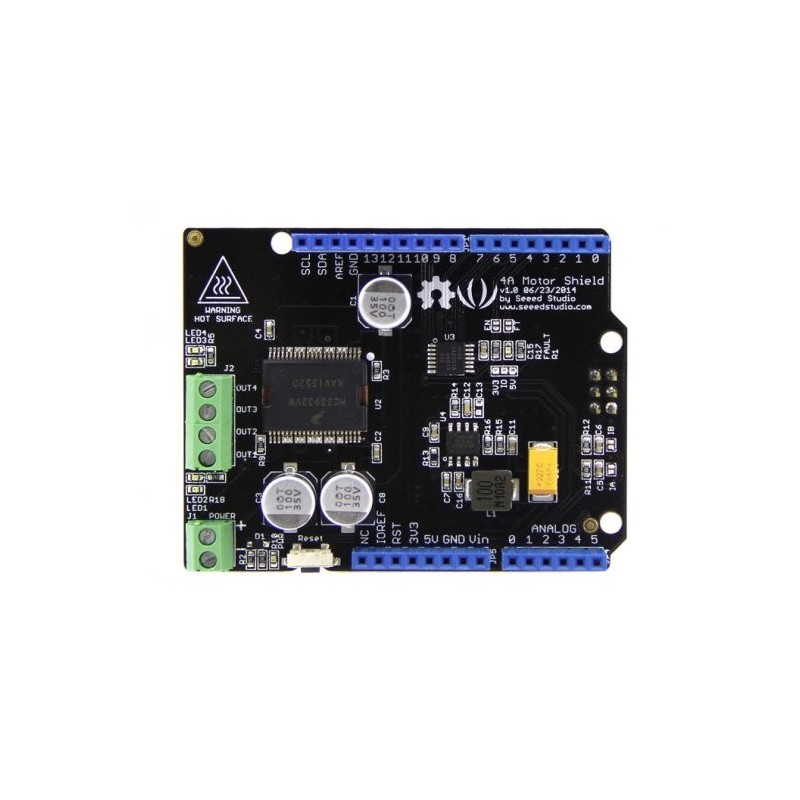

4A Motor Shield
The 4A Motor Shield is based on the Freescale MC33932 dual H-Bridge Power IC , which can control inductive loads with currents up to 5.0A peak per single bridge. It lets you drive two DC motors with your Arduino/Seeeduino board, controlling the speed and direction of each one independently. You can also measure the motor current absorption of each motor, among other features.
The on board DC/DC converter suport a very wide range of input voltage, and can provide a 5V power supply for the microcontroller board with 100mA maximun current.So, you just need one power supply to drive the motors and power up the logic circuit.
Features
-
Output short-circuit protection (short to VPWR or GND)
-
Over-current limiting (regulation) via internal constant-off-time PWM
-
Temperature dependant current limit threshold reduction
Technical Details
| Dimensions | 115mm x 75mm x 25mm |
| Weight | G.W 53g |
| Battery | Exclude |
| Operating Voltage | 6V ~ 28V |
| DC/DC output | 5V 100mA @"5V"pin |
| Output Current(For Each Channel ) | 2A (continuous operation) / 5A(peak) |
| Output Duty Range | Output Duty Range: 0%~100% |
Part List
| 4A Motor Shield | 1 |
ECCN/HTS
| ECCN | EAR99 |
| HSCODE | 8538900000 |
Learn
[Wiki] 4A Motor Shield
Wiki of 4A Motor Shield
