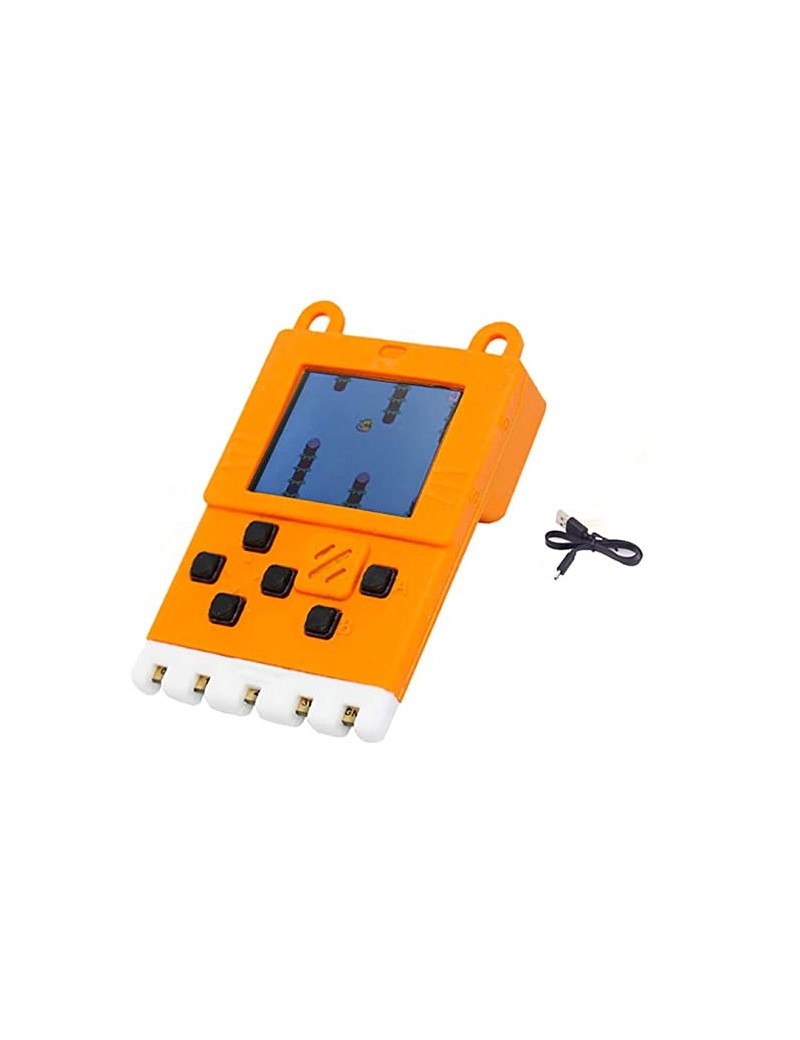

Meowbit is a card-sized graphical retro game computer which allows coding with Makecode arcade and Python. In other words, it combines game programming with hardware devices.

Meowbit is a card-sized graphical programming video game console designed for teenagers. It contains 1.8' full-color screen, 6 x programmable buttons, 1 x buzzer, built-in light sensor, temperature sensor, SD card slot (for external storage), multiplayer connector and edge connector. In addition, the edge connector could access most micro:bit expansion boards.

PARAMETERS

• MCU: STM32F401RET6, 32-bit ARM Cortex M4 core
• Operating voltage: 3.3V
• Supply voltage: USB (5V), Lithium battery pack (3.7~4.2V)
• Output current: 500mA (max)
• Dimensions: 52x76x12 (mm)

RESOURCES

1. Charging/work indicator
2. Light sensor
3. Power switch
4. Programmable led x 2
5. Reset
6. DFU mode button (use to toggle firmware or to bring up the menu in Makecode Arcade mode)
7. 160 x 128 TFT colour screen
8. Temperature sensor
9. Direction button x 4
10. Buzzer
11. A & B buttons
12. compatible with microbit’s 40 PINs Goldfinger
13. USB program download port / charging port
14. SD card slot (for storing programs or extend wireless modules)
15. Multiplayer Connector
16. mp6050 gyroscope
17. 3.7V lithium battery package interface
18. MCU
19. 2MByte spi-flash (default download unicode character table)
20. Signature area

PROGRAMMING MODE

• Arcade: https://arcade.makecode.com/
• micropython programming mode

AVAILABLE

• Windows 7 and above
• macOS
