Max:bot DIY Programmable Robot Kit for Kids - MICRO:BIT
  • Max:bot DIY Programmable Robot Kit for Kids - MICRO:BIT

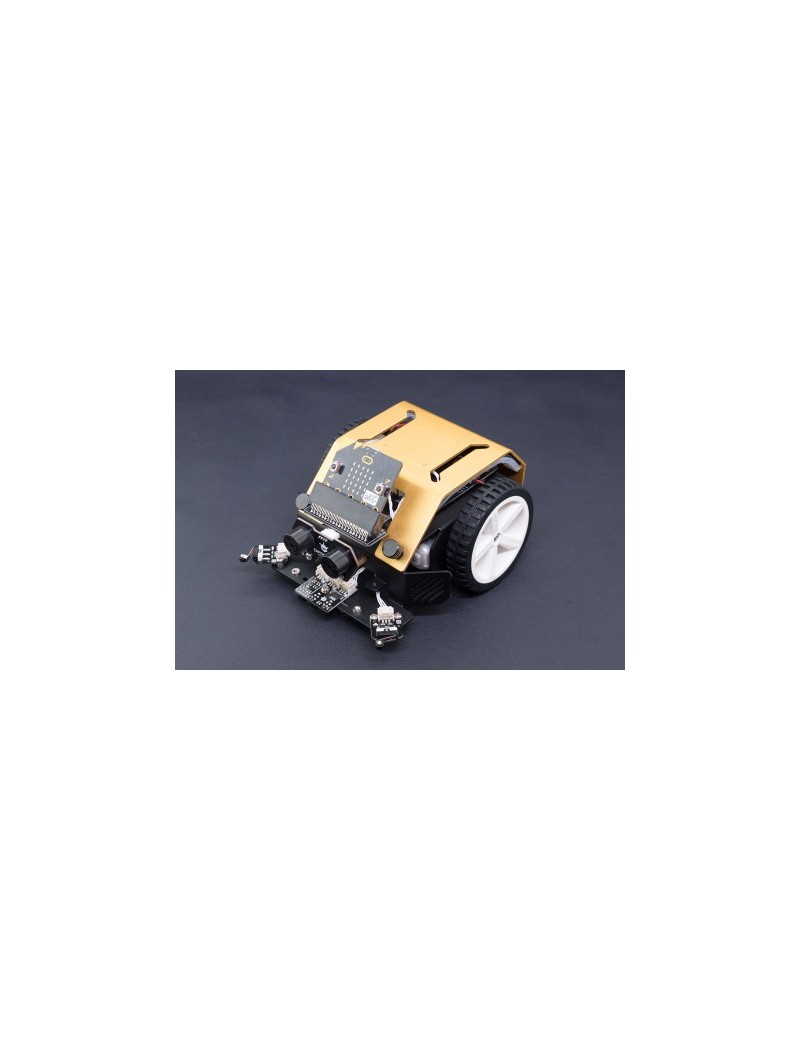

Max:bot DIY Programmable Robot Kit for Kids

186,66 €
Tasse incluse
Quantità
Add to Compare
Add to Wishlist

INTRODUCTION

Max:Bot An entry-level DIY robot that maximizes children’s creativity

Max:Bot First Look

What is Max:Bot?


Max:Bot is a programmable toy for 8+ years old kids to learn about robotics.

Learn Robotics

Children program with Max:Bot
Create your kid’s own invention

Children program with Max:Bot
Robotics Competition

FEATURES

Max:Bot Components

10+ electronic modules, including motors, speakers, line trackers, distance sensors, gesture sensor, etc. Extendable with 50+ DFRobot Boson modules.
More about Boson series
Max:Box Structure
Well-designed aluminum structure, assemble the robot by your kid’s own.

Max:Box Teaching Card
Detailed and vivid course material that teaches kids how to use Max:Bot play music, track line, avoid gap, sense distance, or even communicate with other Max:Bots.

Program Max:Bot with Scratch, MakeCode block editor, Python or JavaScript
Based on micro:bit platform. Program Max:Bot with Scratch, MakeCode block editor, Python or JavaScript. Available from PC, Mac, IOS and Android devices.

APPLICATIONS

Max:Bot Track Line
Track Line

Max:Box Chase Light
Chase Light

Max:Bot Detect Collison
Detect Collison

Max:Bot Detect Edge
Detect Edge

Max:Bot Remote Control
Remote Control

Max:Bot Avoid Obstacle
Avoid Obstacle

SPECIFICATION

  • Power Supply: AA Battery x 4
  • Operating Voltage: 3.3V
  • Maximum Current: 500mA
  • Micro USB Power Supply voltage: 5V
  • Working Temperature: 0-60 ℃
  • Net Dimension：200*150*100 mm
  • Package Dimension：250*130*150 mm
  • Weight: 1250g

Note: The MicroUSB port is reserved for charging lithium battery. However, lithium battery is not included in the package due to the shipping policy. Please contact tech-support for more information.


DOCUMENTS

Max:Bot Installation Manual Max:Bot Programming Tutorial

SHIPPING LIST

  • micro:bit                       x1
  • Max:Bot Mainframe               x1
  • Max:Bot Top Cover                x1
  • Max:Bot Expansion Board         x1
  • DC Motor                                               x2
  • Wheel                           x2
  • Front Supporting Wheel           x1
  • Micro USB Cable                                  x1
  • Speaker                           x1
  • Collision sensor                                       x2
  • 3-Way Line Tracker                                 x1
  • Line Tracking Map                                    x1
  • Ultrasonic Distance Sensor                      x1
  • Battery Case (AA x 4)            x1
  • RGB Light Strip                 x2
  • Double Sided Tape               x1
  • Cable (Short)                                         x4
  • Cable (Long)                                         x4
  • 2-Way Screw Driver              x1
  • Hex Key                           x1
  • Brass Stand (short)             x4
  • Brass Stand (long)               x2
  • M3 Screws                       x25
DF-ROB0147
