micro:bit is a pocket-sized microcontroller designed for kids and beginners to learn coding and electronics, letting them easily bring ideas into DIY digital games, interactive projects and robotics.

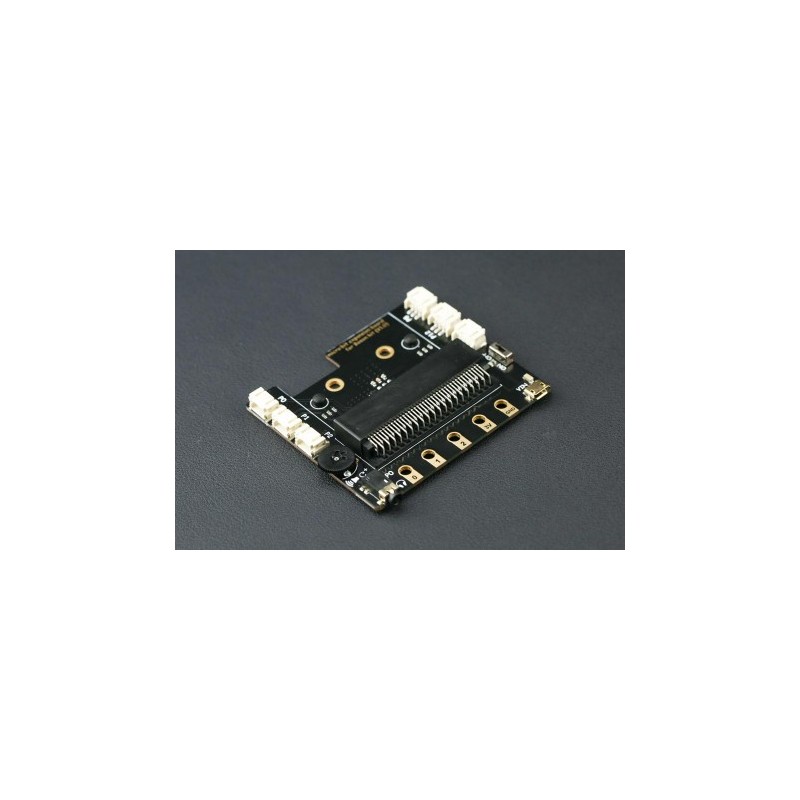

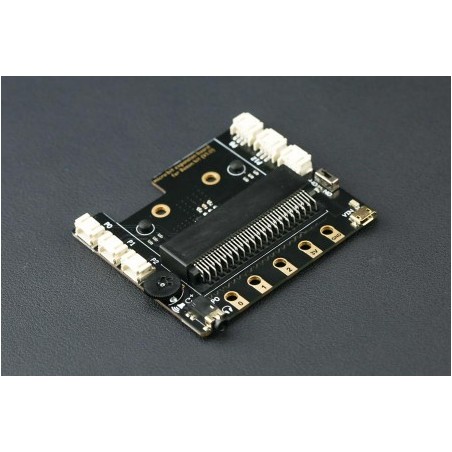

However, on-board I/O rings and crocodile clips sometimes are not handy and safe enough to connect peripherals. To explore more possibilities with micro:bit, we have designed the micro:bit Expansion Board for Boson, a carry-on board that connects to micro:bit via edge connector.

The expansion board comes with 6 fool-proof 3-Pin sockets, compatible with hundreds of DFRobot’s Boson and Gravity modularized electronic blocks, covering most popular digital and analog sensors and actuators, supporting sound, light and motion interaction.
Click the link to learn more about DFRobot’s Boson module: https://www.dfrobot.com/boson
Click the link to learn more about DFRobot’s Gravity module: https://www.dfrobot.com/gravity

Moreover, the on-board 3.5MM headphone jack and volume knob supports direct connection of headphone.
To ensure a steady current supply for these peripherals, the expansion board can be powered externally through the USB power port.

Gravity electronic module recommendation (micro:bit compatible):

FEATURES

• 3-Pin fool-proof connector x 6
• Headphone jack with volume knob
• External power port and ON/OFF switch
• DFRobot Gravity and Boson electronic module compatible

SPECIFICATION

• MicroUSB Power Port Voltage?5V
• PH2.0 Input/output Voltage: 3.3V
• Input/output ring Voltage: 3.3V
• Maximum Current: 500mA
• Working temperature: 0-85 ?
• Dimension 80 * 70 mm / 3.15 * 2.76
• Weight: 48g

DOCUMENTS

micro:bit Educational Foundation
micro:bit online Block edicter
micro:bit website

SHIPPING LIST

• micro:bit Expansion Board for Boson x 1
• 200mm fool-proof PH2.0 cable x 6

"
