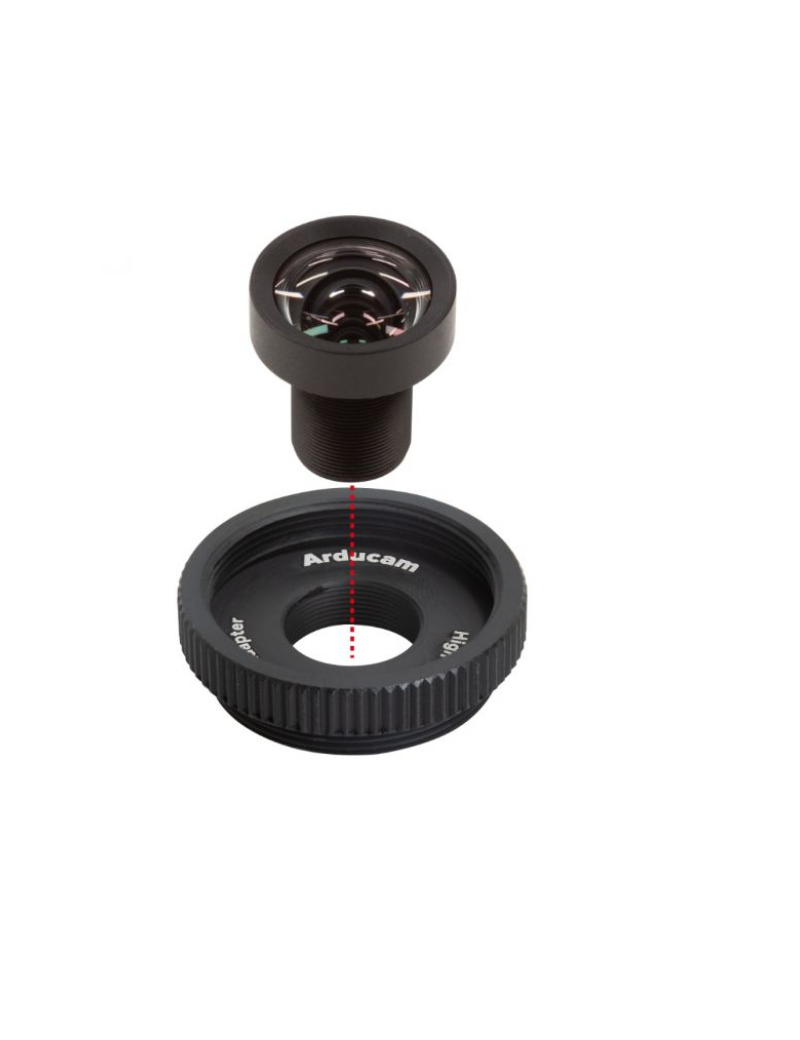

Arducam 1/1.8'' 4K 5.5mm Low Distortion M12

69,00 €


In order to meet the new demands of the lens to work with more image sensors with the large optical format and high resolution, Arducam selected and tested a wide range of 4K M12-mount lenses from long focus to wide angle for shooting on your high quality cameras. It’s now much easier for you to get the best lens you’ll need, and we will keep the lens list growing in the near future.

This 5.5mm F/2.8 low distortion  M12 lens provides a 55° Horizontal Field of View on 1/2.3″ sensors.

Lens Specification

Model No: M18550H06S
Resolution: 8MP+
Optical Format:  ~9.0mm Image circle(Up to 1/1.8”)
TV Distortion : <-0.5%
Effective Focal Length:  5.5mm
Back Focal Length:  8.85mm
HFOV on 1/1.8″ Camera:  62°
HFOV on 1/2.3″ Camera: 55°
IR Sensitivity:   With 650nm IR filter, sensitive to visible light
Construction:  8G9E+IR
Aperture: F2.8
MOD:  0.1m
Mount: M12 x P0.5
Length Holder Height: 12~14.5mm
Dimension:  ф20 x 22.53mm
Weight: 10g
