Item Description:

In order to meet the new demands of the lens to work with Raspberry Pi High Quality Camera, Arducam selected and tested a wide range of M12-mount lenses from long focus to fisheye for shooting on your Rpi HQ cameras. It's now much easier for you to get the best lens you'll need, and we will keep the lens list growing in the near future.

Lens Specification:

Come in 6 different FOV (Field of View), Horizontal FOV ranging from 20 to 180 degrees on 12MP Rpi HQ camera, each specification:

- Model No: M2025ZM02

• Optical Format: 1/2.3"
• Focal Length: 25mm
• Aperture: F2
• Field of View (FOV): 20° (H)
• Mount: M12 mount
• Back Focal Length: 5.2mm
• MOD: 0.2m
• Dimension: Φ17×21mm
• Weight: 8g

- Model No: M2306ZM13

• Optical Format: 1/2.3”
• Focal Length: 8mm
• Aperture: F2
• Field of View (FOV): 50° (H)
• Mount: M12 mount
• Back Focal Length: 7.56mm
• MOD: 0.3m
• Dimension: Φ16×16.41mm
• Weight: 6g

- Model No: M23430M14

• Optical Format: 1/2.3”
• Focal Length: 6mm
• Aperture: F2
• Field of View (FOV): 70° (H)
• Mount: M12 mount
• Back Focal Length: 3.62mm
• MOD: 0.3m
• Dimension: Φ14×19.58mm
• Weight: 8g

- Model No: M23356H09

• Optical Format: 1/2.3”
• Focal Length: 3.56mm
• Aperture: F2.5
• Field of View (FOV): 90° (H)
• Mount: M12 mount
• Back Focal Length: 5.92mm
• MOD: 0.2m
• Dimension: Φ14×16.3mm
• Weight: 7g

- Model No: M23280H13

• Optical Format: 1/2.3”
• Focal Length: 2.8mm
• Aperture: F2.4
• Field of View (FOV): 130° (H)
• Mount: M12 mount
• Back Focal Length: 5.65mm
• MOD: 0.2m
• Dimension: Φ18×17.9mm
• Weight: 8g

- Model No: M25156H18

• Optical Format: 1/2.3”
• Focal Length: 1.56mm
• Aperture: F2
• Field of View (FOV): 180° (H)
• Mount: M12 mount
• Back Focal Length: 4.3mm
• MOD: 0.2m
• Dimension: Φ20×17.3mm
• Weight: 7g

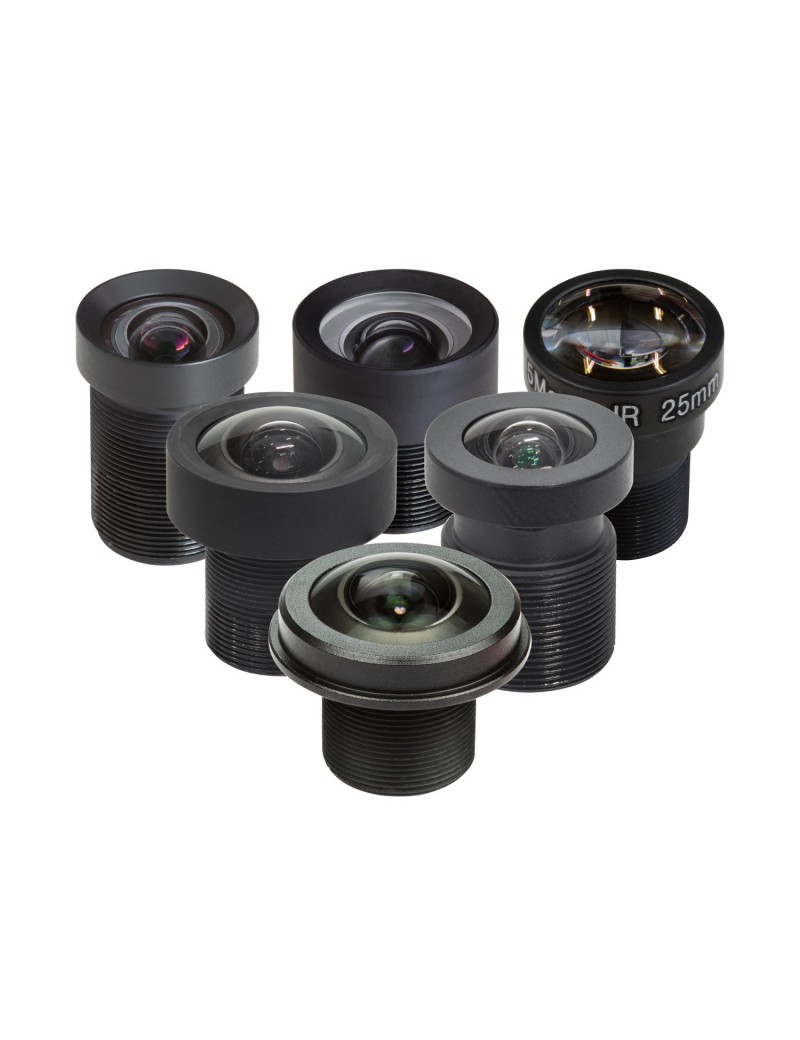

Package Includes:

• 1pcs 1/2.3" M12 180 degree fisheye camera Lens
• 1pcs 1/2.3" M12 130 degree wide angle camera Lens
• 1pcs 1/2.3" M12 90 degree wide angle camera Lens
• 1pcs 1/2.3" M12 70 degree camera Lens
• 1pcs 1/2.3" M12 50 degree camera Lens
• 1pcs 1/2.3" M12 telephoto 20 degree camera lens
• 1pcs M12 lens adapter
• 2pcs M12 lens holders
• 1pcs M12 locking ring
• 1 pack lens screws
